Regal Beloit USQ1202 AO Smith Motor 2 HP 230 Volt

Product Description

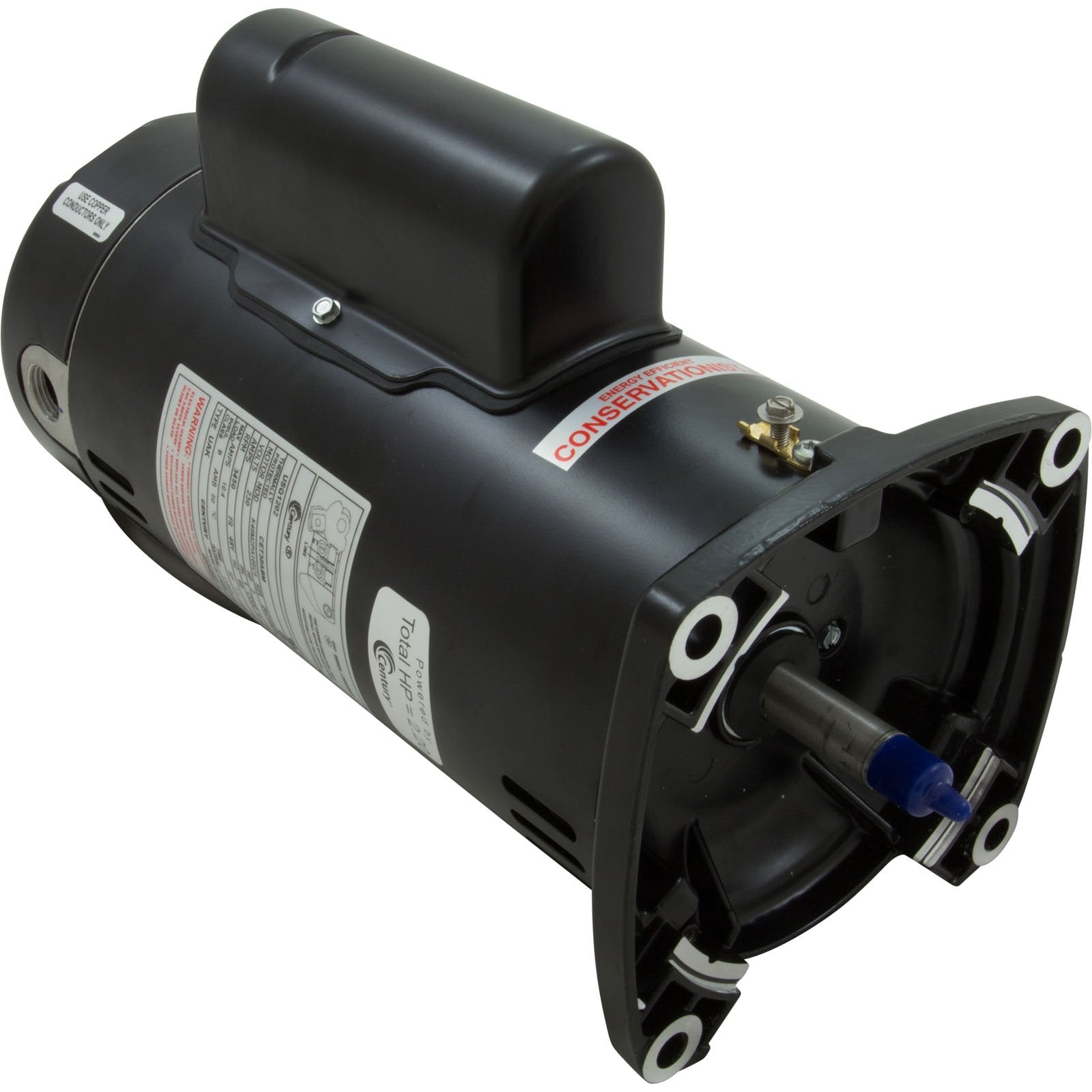

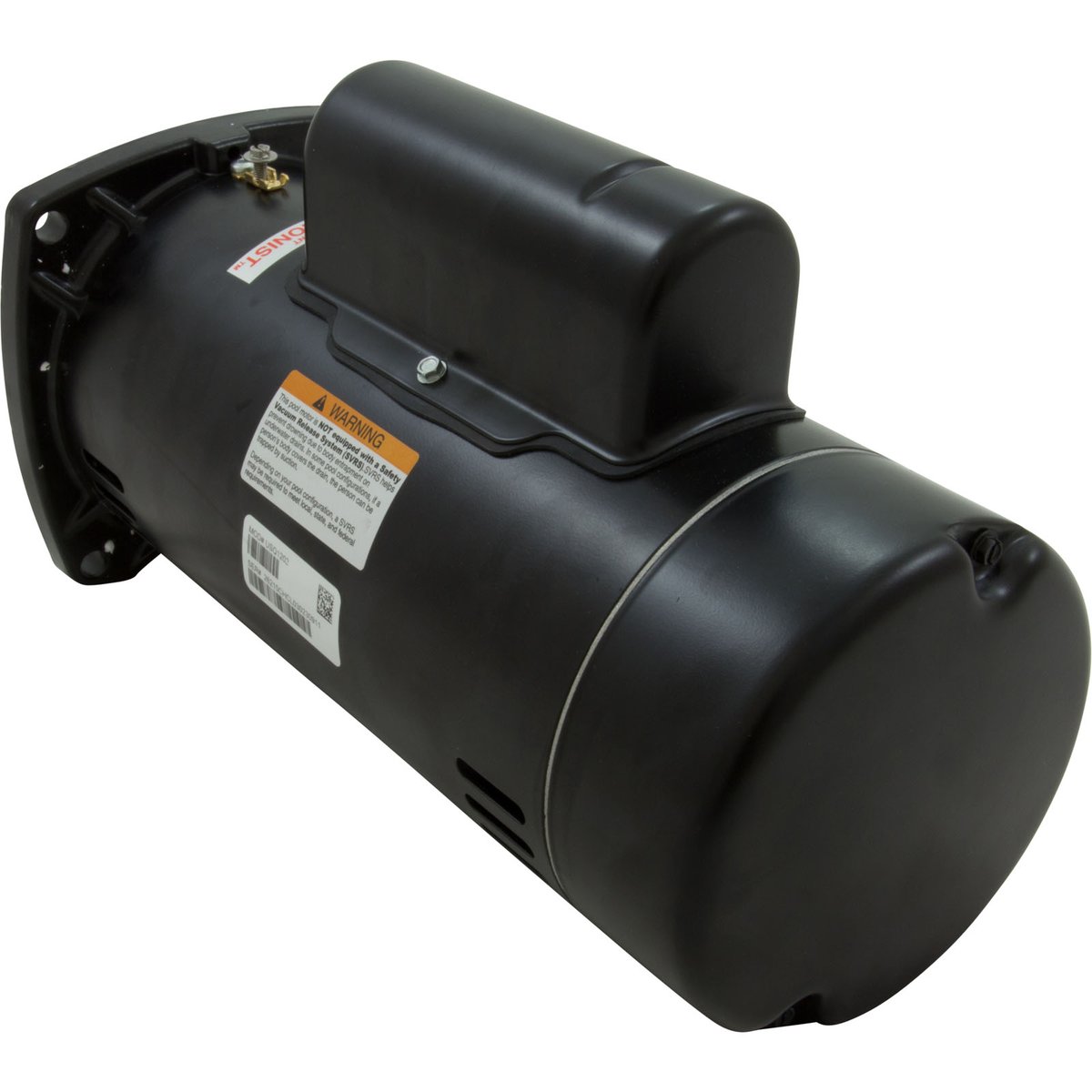

The REGAL BELOIT USQ1202 is a 2 HP, 230V single-speed motor designed for pool and spa pumps. It features a 48Y frame with a square flange for broad compatibility. The motor operates at 3450 RPM and has a service factor of 1.1. Designed for continuous duty and residential applications.

• 2 HP motor
• Single speed operation at 3450 RPM
• Open Drip Proof enclosure

Product Highlights

Reliable motor for pool and spa pumps, featuring a robust design and efficient performance.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: USQ1202
• Country of Origin: China

Technical Specifications

• HP: 2 HP
• Speed: 1 Speed (1-Spd)
• RPM: 3450 RPM
• Volts: 230 V
• Amps: 10.4 amp
• Service Factor: 1.1
• Frame: 48Y
• Shaft: Threaded
• Overload Protector: Auto
• Flange: Square
• Phase: 1
• Output HP: 2 Hp
• Output KW: 1.5 kW
• Enclosure: Open Drip Proof
• Thermal Protection: Automatic
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: 10.4 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Square Flange
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 THREADS
• Overall Length: 13.94 in
• Frame Length: 10.06 in
• Shaft Diameter: 0.625 inch
• Shaft Extension: 0.906 in
• Motor Type: Pool
• Voltage: 230v
• Horsepower: 2 horse power
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: Century
• Product Category: Pump Motors
• Poolweb Item #: USQ1202
• Cross Reference #: AE100GLL,A100GLL
• VoltageRating: 230 V
• Diameter: 5-5/8 Inch
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• Type: Up-Rated, UAK
• Brand: Regal Beloit
• Bearing Type: Sealed Ball
• FinishColor: Black
• FrequencyRating: 60 Hz
• FullLoadAmps: 10.4 A
• Item: Two-Compartment Pool Filter Motor
• MountingType: C-Face
• StandardsApprovals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• SubBrand: Century®
• EnclosureDesign: Open Dripproof
• ShaftDesign: Threaded
• ShaftMaterial: 303 Stainless Steel
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: High
• NumberofSpeed: 1-Speed
• MotorDesign: Capacitor Start/Run
• FlangeType: Square
• MotorShaftRotation: CCWPE
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Ambient temperature: 50 degrees Celsius
• Motor Frame Size: 48Y
• Motor Capacitor Type: Start,Run
• Amps Low Speed: 10.4
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 10.4
• Standards Approvals: CSA Certified
• Motor Thermal Protection: Automatic Reset
