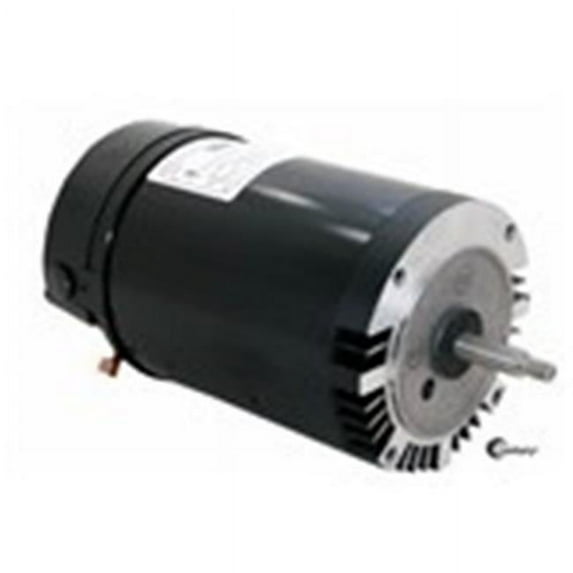

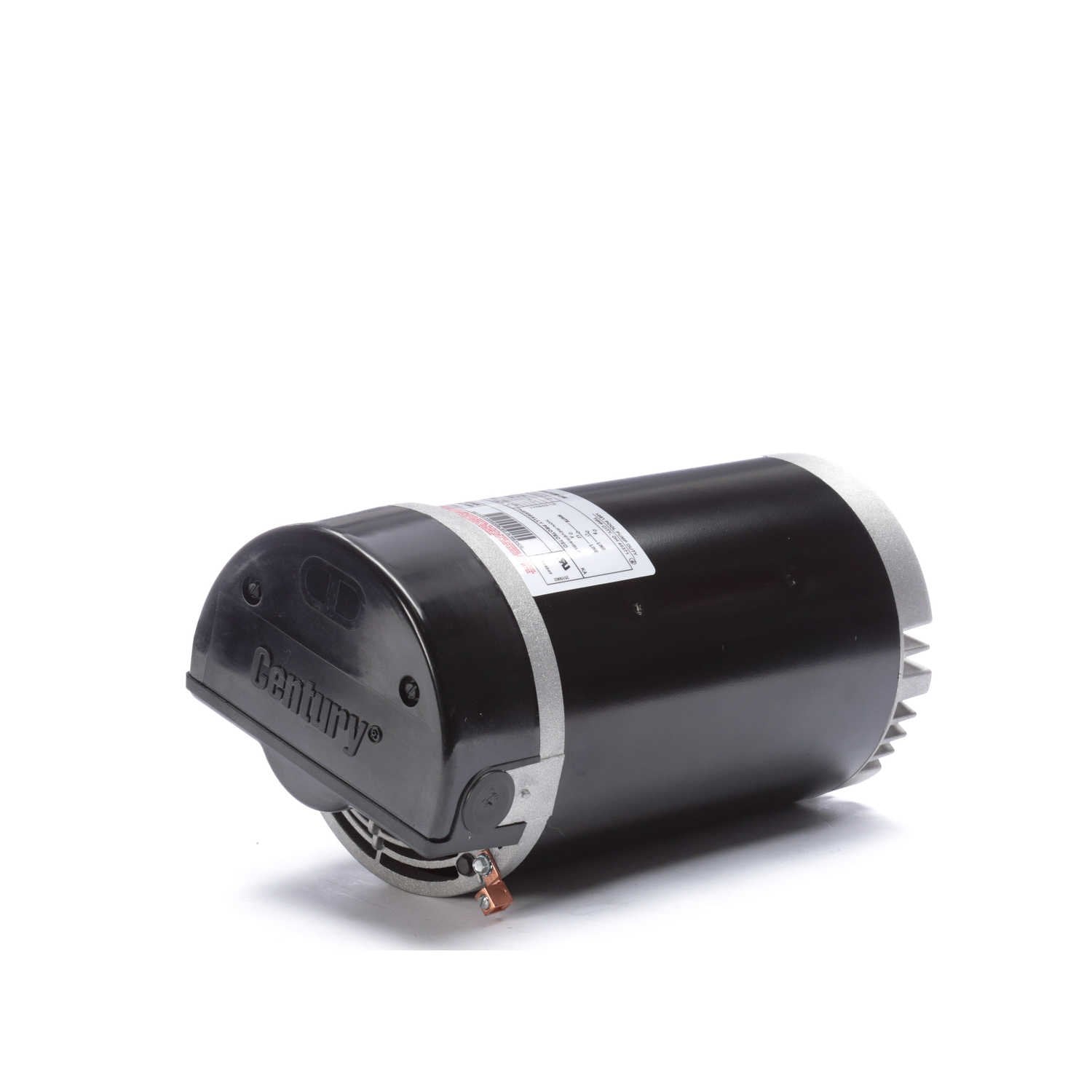

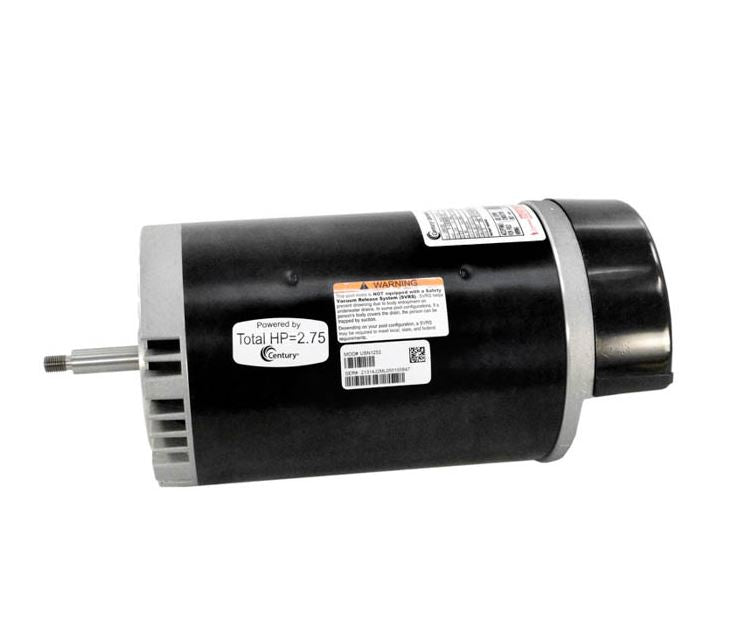

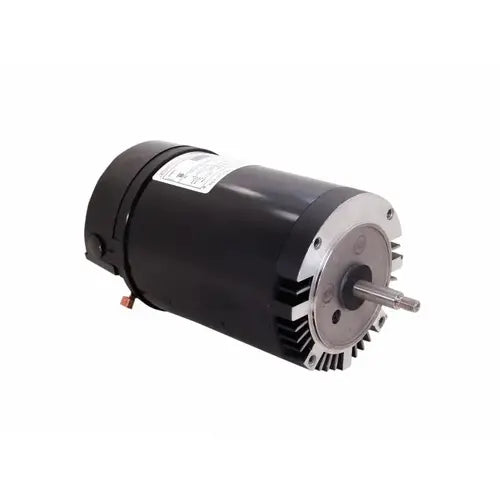

Regal Beloit USN1252 Odp Northstar Pool and Spa Pump Motor 2.5 HP

Product Description

The REGAL BELOIT USN1252 is a Century(R) up-rated replacement pool and spa pump motor. This 2.5 HP motor operates at 3450 RPM with a voltage of 208-230V and a 56J frame. It features a threaded shaft and is designed for Hayward Northstar™ pumps. The motor's e-coated main frame provides superior corrosion resistance.

• Energy efficient
• Low noise
• Cool running for longer winding life

Product Highlights

This 2.5 HP motor ensures robust and efficient water circulation, contributing to the overall health and vitality of the pool or spa.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: USN1252
• Country of Origin: Mexico

Technical Specifications

• Diameter: 6-1/2 Inch
• RPM: 3450
• Frame: 56J
• Application: Hayward Northstar™ Pumps
• Type: Up-Rated, CX
• OverallLength: 14.60 Inch
• Brand: Regal Beloit
• Phase: 1-Phase
• Bearing Type: Ball
• AmbientTemperature: 50 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 13.0-11.8 A
• HP: 2.5
• Item: Replacement Pool and Spa Pump Motor
• MountingType: C-Face, No Base
• StandardsApprovals: UL Approved
• SubBrand: Century®
• VoltageRating: 208-230 V
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftLength: 2-9/16 Inch
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: High
• MotorDesign: PSC
• ServiceFactor: 1.10
• MotorShaftRotation: CCWPE
• Horsepower: 2.5 HP
• Volts: 208 V, 230 V
• Features: Energy Efficient
• Height: 9.5 in
• Pool Pump Parts: Motors
• Output HP: 2.5 Hp
• Output KW: 1.9 kW
• Voltage: 208-230 V
• Speed: 3450 rpm
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Frequency: 60 Hz
• Current: SF 13.0-11.8 A
• Duty: Continuous
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball Brg
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 7/16 Thread
• Overall Length: 14.60 in
• Frame Length: 8.50 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.56 in
