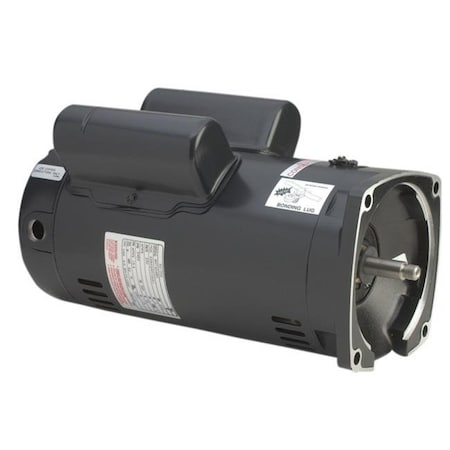

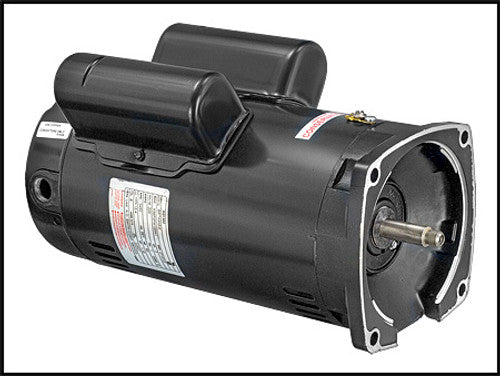

Regal Beloit SQ1302V1 Square Flange Pool Motor 3 HP REPLACEMENT 5235-0

Product Description

The Regal Beloit SQ1302V1 square flange pool motor delivers 3 HP at 3450 RPM. Designed for pool filter applications, this motor features a capacitor start and an open dripproof enclosure. It has a 303 stainless steel threaded shaft and sealed ball bearings for durability. Suitable for Sta-Rite Max-E Glas and Dura-Glas pumps.

• Square Flange Pool Motor
• 3 HP, 3450 RPM
• Open Dripproof enclosure

Product Highlights

This motor is designed for pool and spa applications. It features a stainless steel shaft, sealed ball bearings, and an open dripproof enclosure.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SQ1302V1
• Country of Origin: China

Technical Specifications

• Ambient Temperature: 50 deg C
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• Bearing Type: Sealed Ball
• Brand: Regal Beloit
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: Standard
• Enclosure Design: Open Dripproof
• Finish Color: Black Lacquer
• Flange Type: Square
• Frame: 56Y
• Frequency Rating: 60 Hz
• Full Load Amps: 15.4 A
• HP: 3
• Insulation Class: B
• Item: Two-Compartment Pool Filter Motor
• Motor Design: Capacitor Start/Run
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face
• Number of Speed: 1-Speed
• Overall Length: 14.00 Inch
• Phase: 1-Phase
• RPM: 3450
• Service Factor: 1.15
• Shaft Design: Threaded
• Shaft Diameter: 0.625 in
• Shaft Length: 3/4 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL 1081 Approved, CSA Certified
• Sub Brand: Century®
• Thrust Horsepower: 3.45
• Type: Standard Pool Pump
• Voltage Rating: 208-230 V
• Output HP: 3.0 Hp
• Output KW: 2.2 kW
• Voltage: 208-230 V
• Speed: 1-Speed
• Enclosure: Open Drip Proof
• Thermal Protection: Thermally Protected
• Poles: 2
• Rotation: Counterclockwise Pump End
• Motor Orientation: Horizontal
• Drive End Bearing: BALL
• Opp Drive End Bearing: BALL
• Frame Material: Rolled Steel
• Shaft Type: Threaded
• Frame Length: 10.00 in
• Shaft Extension: 0.91 in
• Fountain, pond & pool pump type: In-Ground or Above Ground Pool Pump
• Horsepower: 3.0 HP
• Volts: 208 V, 230 V
• Pump operating phase: Single Speed
• Features: Energy Efficient
• Has nrtl listing certification: N
• Model: SQ1302V1
• Mfr: A.O. Smith (AOS) / Century Electrical
• Mfg Part #: SQ1302V1
• Hzn Part #: _SQ1302V1
• Replaces: 5235-0, 638104, AOS-60-5224
• Works With: Pool
• Mount: Threaded
• Motor Type: Pool
• Motor Shaft Type: Threaded
• Motor Style: Square Flange
• Capacitor On Top: Yes
• Manufacturer: Century
• Minimum Pump Power Requirement: 3 hp
• Power Source: Corded
• Amperage: 15 A
• Material: Stainless Steel
• Suitable For: In Ground Pools
• Power: 2200 W
• Frame Type: Y56Y
• Total Horsepower: 3.45thp
