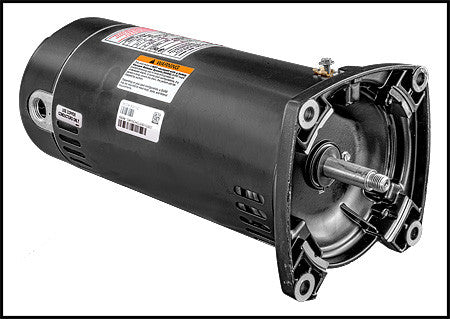

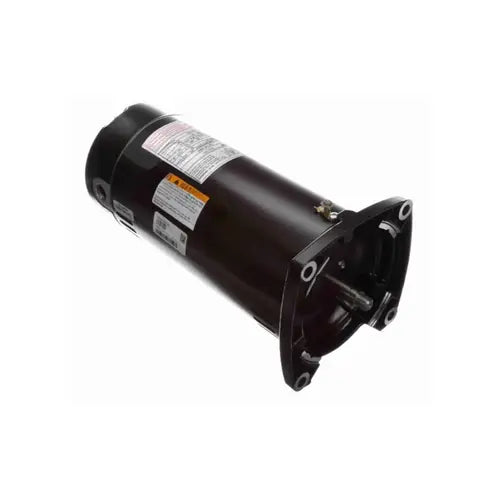

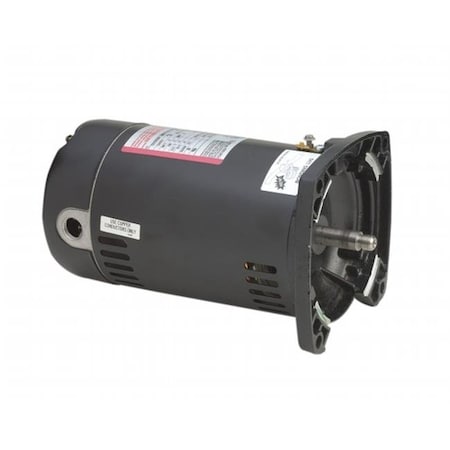

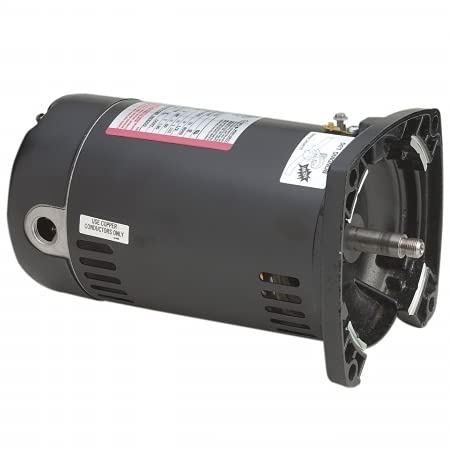

Regal Beloit SQ1102 Sq1102 1.0 HP Square Flange Pool Filter Motor

Product Description

The REGAL BELOIT SQ1102 is a 1.0 HP square flange pool filter motor. It features a 50-Degree C ambient temperature and a 303 stainless steel threaded shaft. Operates at 3450 RPM and is designed for pool applications. The motor is a full-rated motor ensuring efficient, long-lasting operation, ideal for residential pool systems.

• 50-Degree C ambient temperature
• 303 stainless steel threaded shaft
• Operates at 3450 RPM

Product Highlights

This 1.0 HP motor is designed for pool applications, featuring a stainless steel shaft and reliable operation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SQ1102
• Country of Origin: China

Technical Specifications

• Manufacturer: Regal Beloit
• Brand: REGAL BELOIT AMERICA - EPC
• Model / MPN: SQ1102
• Product Type: ELECTRIC_MOTOR
• Speed: 3450 RPM
• Voltage: 115/230 V
• Horsepower: 1 Horsepower
• Material: Copper
• Diameter: 5-5/8 Inch
• RPM: 3450
• Frame: 48Y
• Application: Many Sta-Rite®, Red Jacket, Pac Fab and American Products
• Type: Full-Rated, UAC
• OverallLength: 13.13 Inch
• Phase: 1-Phase
• Bearing Type: Sealed Ball
• AmbientTemperature: 50 deg C
• FrequencyRating: 60 Hz
• FullLoadAmps: 19.2/9.6 A
• MountingType: C-Face
• SubBrand: Century®
• EnclosureDesign: Open Dripproof
• ThrustHorsepower: 1.65
• ShaftDesign: Threaded
• InsulationClass: B
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: Capacitor Start
• FlangeType: Square
• ServiceFactor: 1.65
• MotorShaftRotation: CCWPE
• Motor Enclosure Type: Open Drip Proof
• Motor Speed: 1-Speed
• Motor Frame Size: 48Y
• Motor Capacitor Type: Start
• Motor Shaft Rotation: Counterclockwise Pulley End
• Package Quantity: 1
• UL Listed: Yes
• ADA Compliant: No
• UNSPSC: 40151730
• TAA/BAA Compliant: Yes
• BEARING: Ball
• CATALOG NUMBER: SQ1102
• CURRENT2: 9.0/18.0 A
• ENCLOSURE: OPEN DRIP PROOF
• FREQUENCY: 60 HZ
• HEIGHT: 9.01 IN
• LENGTH: 15.98 IN
• MANUFACTURE MODEL NUMBER: SQ1102
• MOTOR ORIENTATION: Horizontal
• MOTOR TYPE: CAPACITOR START
• MOUNTING: Round
• NOMINAL EFFICIENCY: 55
• NUMBER OF POLES: 2
• OUTPUT: 1 HP
• OVERLOAD: Automatic
• PRODUCT NAME: 1HP,3450,48Y,CAP,1.65SF
• PRODUCT SKU: AO-SQ1102
• ROTATION: Counterclockwise Pump End
• SHAFT DIAMETER (IN IN.): 0.625 IN
• SHAFT EXTENSION: 0.906 IN
• SHAFT TYPE: 1/2 Thread
• TYPE OF OVERLOAD PROTECTOR: Thermally Protected
• UL: Recognized
• UNIT OF MEASURE: Each
• WIDTH: 9.13 IN
