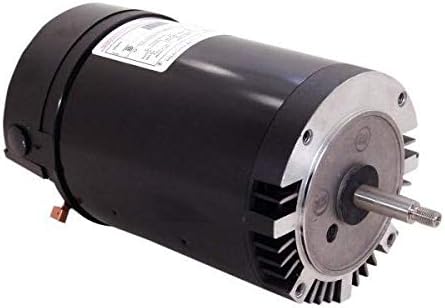

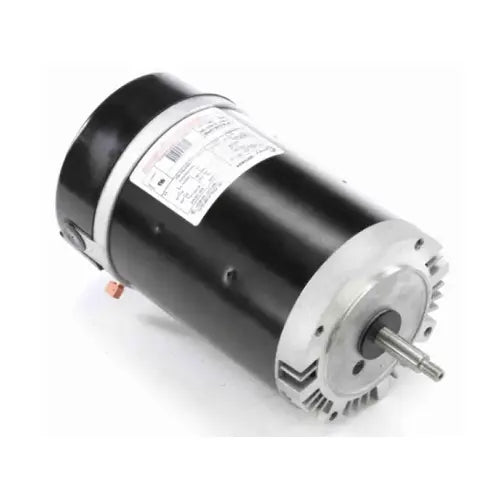

Regal Beloit SN1102 Full-Rated Replacement Pool & Spa Pump Motor 1 HP Threaded Shaft

Product Description

The REGAL BELOIT SN1102 is a full-rated replacement pool and spa pump motor with a threaded shaft. Designed for pumps requiring a 56J frame motor, it is energy efficient with a high service factor. Features include a stainless steel shaft, sealed ball bearings, and an E-coated main frame for corrosion resistance. Wiring diagram is located on the motor name plate.

• Energy efficient motor with high service factor
• Stainless steel shaft and sealed ball bearings for extended life
• E-coated main frame for superior corrosion resistance

Product Highlights

This 1 HP motor is designed for durability and efficient operation in pool and spa applications, offering reliable performance and corrosion resistance.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: SN1102
• Country of Origin: China

Technical Specifications

• Voltage: 115/208-230 V
• Amps: 15.6/7.8 A
• Hertz: 60 Hz
• Rotation: Counterclockwise Pump End
• Mounting Type: C-Face
• Shaft: 5/8" diameter threaded shaft
• Diameter: 6-1/2 Inch
• RPM: 3450
• Frame: 56J
• Application: Hayward Northstar™ Pumps
• Type: Full-Rated, C
• OverallLength: 13.35 Inch
• Brand: Regal Beloit
• Phase: 1-Phase
• Bearing Type: Ball
• Ambient Temperature: 50 deg C
• Frequency Rating: 60 Hz
• Full Load Amps: 8.5-7.8/15.6 A
• HP: 1
• Item: Replacement Pool and Spa Pump Motor
• StandardsApprovals: UL Approved
• Sub Brand: Century®
• Enclosure Design: Open Dripproof
• Flange Material: Aluminum
• ShaftDesign: Threaded
• Insulation Class: B
• ShaftLength: 2-9/16 Inch
• ShaftMaterial: 303 Stainless Steel
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: High
• MotorDesign: Capacitor Start
• ServiceFactor: 1.85
• MotorShaftRotation: CCWPE
• Output HP: 1.0 Hp
• Output KW: 0.75 kW
• Speed: 3450 rpm
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Current: SF 8.5-7.8/15.6 A
• Duty: Continuous
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Capacitor Start Induction Run
• Starting Method: Across The Line
• Poles: 2
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball Brg
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.557 in
• Horsepower: 1 HP
• Power Source: Corded
• Suitable For: In Ground Pools, Hot Tubs
• Minimum Pump Power Requirement: 1 hp
• Item Height: 9.500
• Width: 9.50
