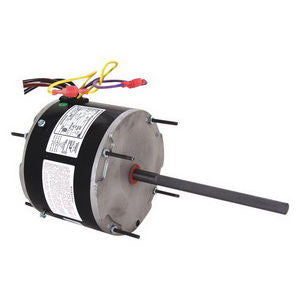

Regal Beloit ORM5458B Century Condenser Fan Motor 1/4 HP REPLACEMENT ORM5458B

Product Description

The Regal Beloit ORM5458B Century Condenser Fan Motor is ideal for heat pumps and refrigeration needs. This motor operates efficiently at two hundred eight to two hundred thirty volts and sixty Hertz, with a speed of one thousand seventy-five RPM. It includes automatic thermal protection and is built with Class B insulation for use in ambient temperatures up to sixty degrees Celsius. The design incorporates extended studs for secure mounting and features a half-inch diameter shaft with a double flat.

• Thermal protection prevents overheating
• Class B insulation suitable for high ambient temperatures
• Half-inch shaft with double flat design for effective mounting

Product Highlights

This motor is built to perform under demanding conditions, making it a suitable choice for HVAC professionals.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/4 HP

Technical Specifications

• Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Semi Enclosed
• Current: 1.8 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 10.93 inches
• Frame Length: 3.38 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.4 inches
