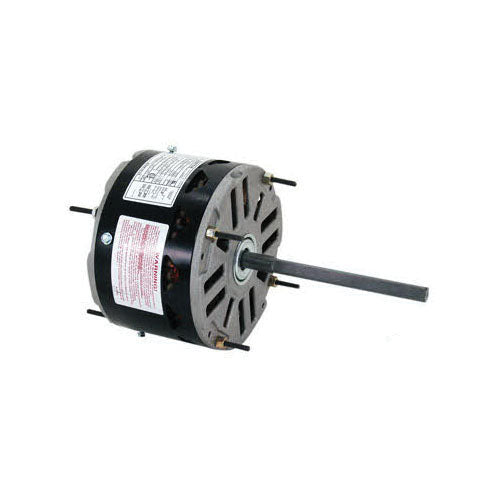

Regal Beloit ORM1016 Century UF OEM Direct Replacement AC Motor, 1/5 to 1/8 hp, 208 to 230 VAC

Product Description

The Regal Beloit ORM1016 AC Motor is designed for OEM replacements in various applications. This motor supports power ratings from one-fifth to one-eighth horsepower and operates within a voltage range of two hundred eight to two hundred thirty volts. It utilizes a semi-enclosed design suitable for indoor use and features a NEMA forty-eight frame size. With a speed of one thousand seventy-five RPM, it is ideal for units requiring reliable and efficient performance.

• Replaces one-fifth or one-eighth horsepower Rheem condenser fan motors
• Equipped with a permanent split capacitor for energy efficiency
• Reversible motor operation for flexible installation options

Product Highlights

This motor is built with a sleeve bearing type for durability and is CSA certified and UL listed, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: ORM1016

Technical Specifications

• Amperage Rating: 1.1 A
• Application Type: OEM Replacement Motors
• Bearing Type: Sleeve
• Country of Origin: MX
• Dimensions: 5-5/8 inches Diameter
• Enclosure Type: Semi-Enclosed
• Frame: NEMA 48Y
• Frequency Rating: 60 Hz
• Horsepower: 1/5 to 1/8 hp
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Number of Speeds: 2
• Package Weight: 10.0 lb
• Rotation: Reversible
• Service Factor: 1
• Shaft Size: 1/2 inches Diameter x 5-1/2 inches Length
• Speed: 1075 rpm
• Temperature Rating: 60 degrees Celsius
• Type: UF
• Voltage Rating: 208 to 230 VAC
