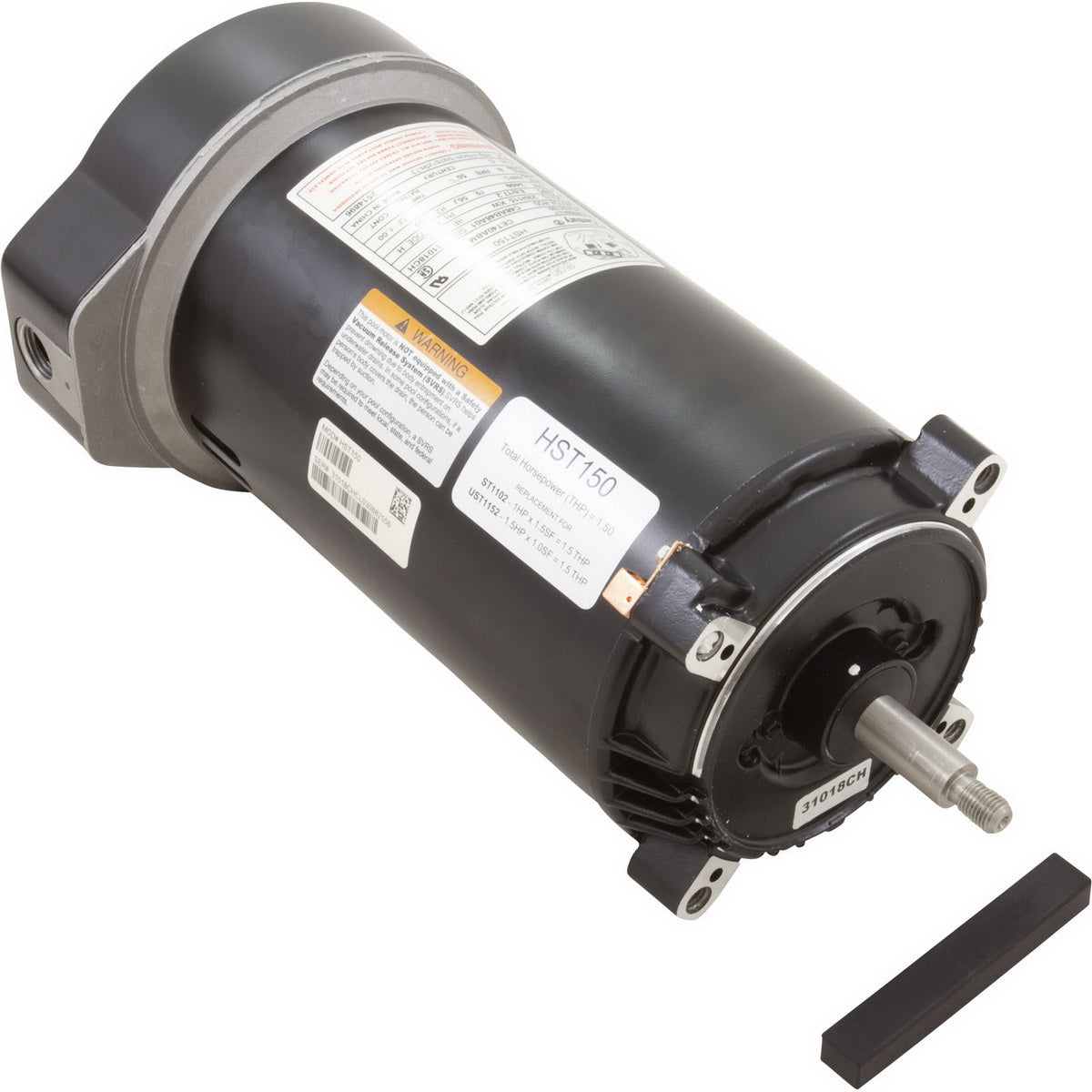

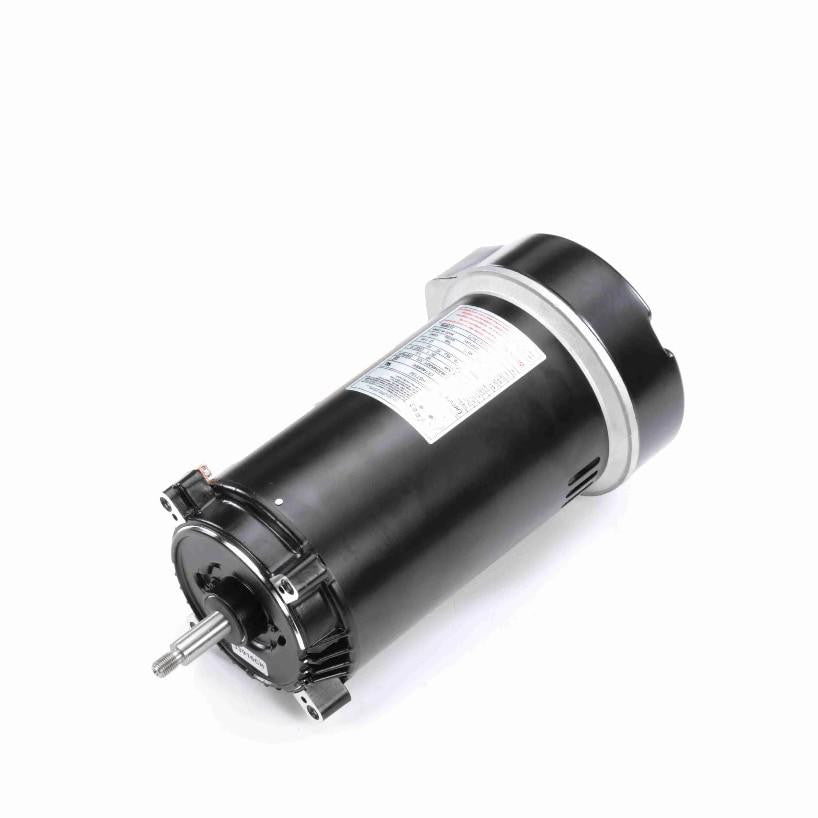

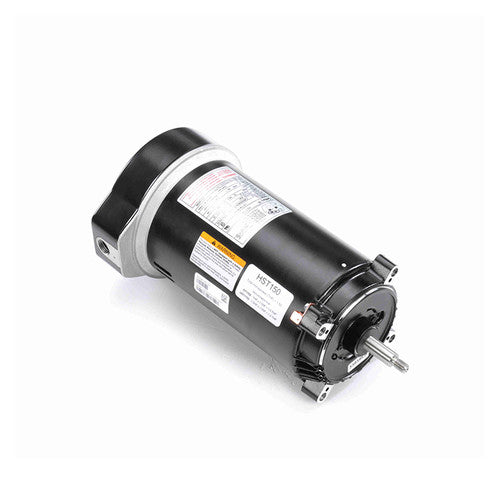

Regal Beloit HST150 Pump Motor 1.5 HP Threaded Shaft

Product Description

The REGAL BELOIT HST150 pump motor is a 1.5 HP motor with a threaded shaft designed for pool and spa pump systems. It operates at 3450 RPM and is compatible with 115/230V power systems. Features include a 56J frame, open drip proof enclosure, and automatic overload protection. This motor ensures efficient water circulation and system functionality.

• Operates at 1.5 horsepower with a speed of 3450 RPM.
• Compatible with both 230V and 115V electrical systems.
• Features a standardized 56J frame.

Product Highlights

Durable and easy to install, this motor features premium sealed 203 bearings and TripleSEal protection.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: HST150

Technical Specifications

• Volts: 115/230
• Amps: 8.6 Amps
• Service Factor: 1.0
• HP: 1.50
• RPM: 3450
• THP (Total Horsepower): 1.50 THP
• Horsepower: 1.5 HP
• Electrical phase: Single Phase
• Maximum motor speed: 3450 rpm
• Brand: Regal Beloit
• Manufacturer Part Number: RM177
• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Duty Cycle: Continuous
• Enclosure Design: Open Dripproof
• Finish Color: Satin Black
• Frame: 56J
• Frequency Rating: 60 Hz
• Full Load Amps: 17.2/8.6 A
• Insulation Class: B
• Item: Pool and Spa Pump Motor
• Motor Design: Capacitor Start
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face
• Number of Speed: 1-Speed
• Overall Length: 11.84 Inch
• Phase: 1-Phase
• Series: Centurion® Pro
• Shaft Design: Threaded
• Shaft Diameter: 5/8 Inch
• Shaft Length: 2-9/16 Inch
• Shaft Material: 303 Stainless Steel
• Standards Approvals: UL Approved, UL Recognized (E46412), CSA Certified (LR43341)
• Sub Brand: Century®
• Thrust Horsepower: 1.5
• Type: C
• Voltage Rating: 115/230 V
• Compatible With: AO Smith/Century/Regal Beloit
