Regal Beloit HSQ125 Pool Motor Square Flange 1.25 THP 115/230V

Product Description

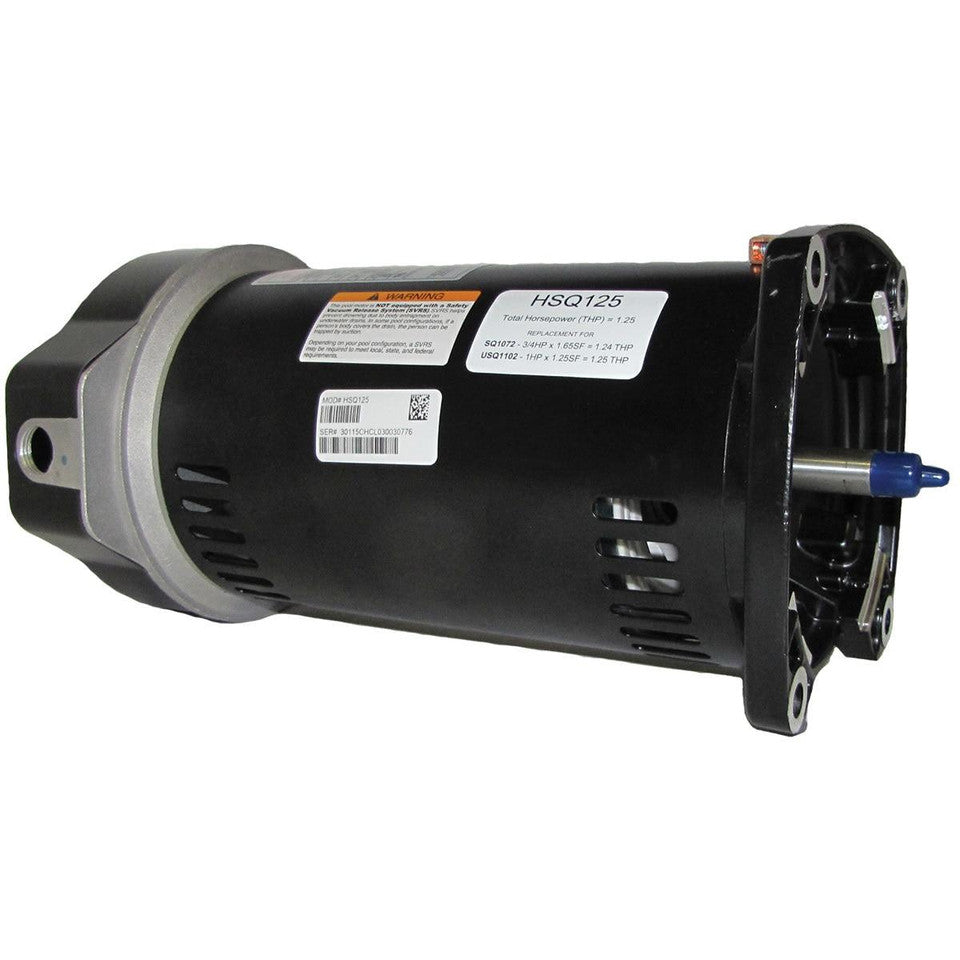

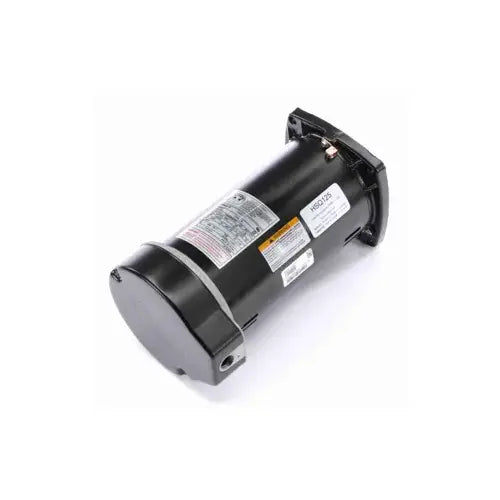

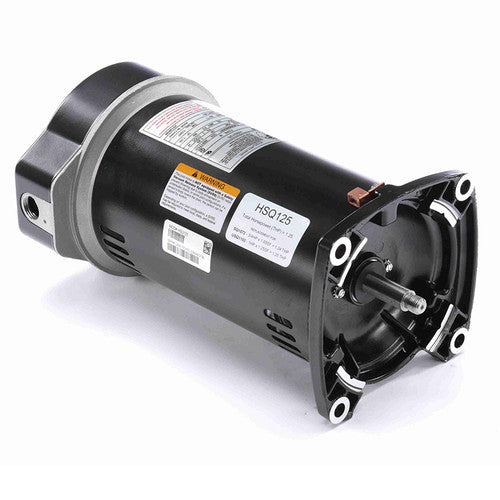

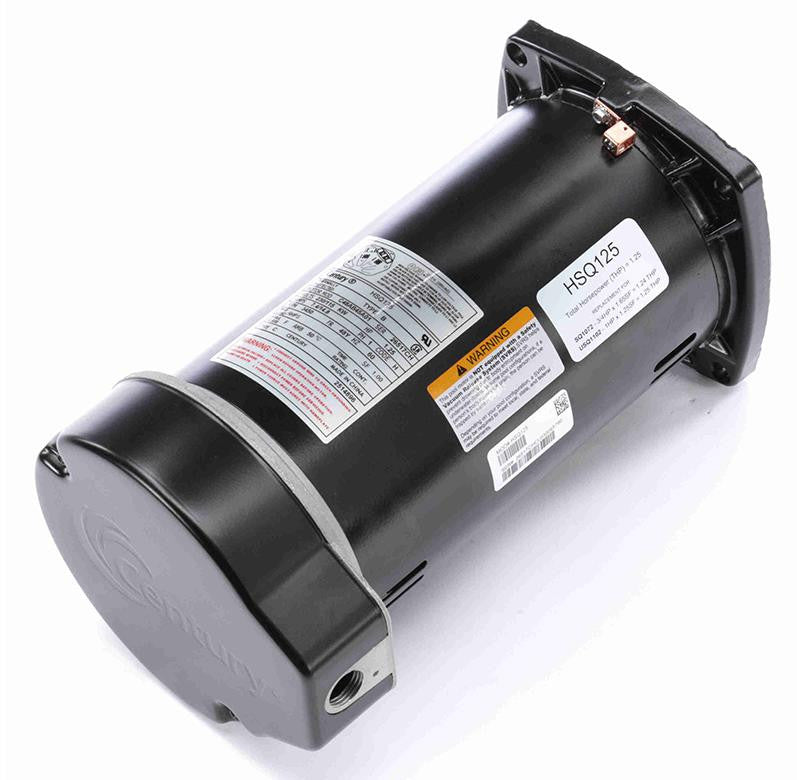

The Regal Beloit HSQ125 pool motor features a square flange and 48 frame, delivering 1.25 total horsepower. This Centurion PRO motor has an easy access wiring panel and includes a rubber spacer. It can replace any 48 or 56 frame square flange motor up to 1.25 total HP. Designed for continuous duty with a capacitor start and open dripproof enclosure.

• Easy Access Wiring Panel
• Includes Rubber Spacer
• Can Replace Any 48 Or 56 Frame Square Flange Motor 1Hp Uprate Or 3/4Hp Fullrate

Product Highlights

The Regal Beloit HSQ125 is ideal for pool and spa pumps, offering reliable performance and easy installation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: HSQ125

Technical Specifications

• Brand: Regal Beloit
• MPN: HSQ125
• UPC: 786674033246
• Frame: 48Y
• Horsepower: 1.25 THP
• Voltage Rating: 115/230 V
• RPM: 3450
• Enclosure Design: Open Dripproof
• Phase: 1-Phase
• Frequency Rating: 60 Hz
• Service Factor: 1.00
• Shaft Diameter: 5/8 Inch
• Overall Length: 12.03 Inch
• Diameter: 5-5/8 Inch
• Shaft Material: 303 Stainless Steel
• Motor Design: Capacitor Start
• Full Load Amps: 14.8/7.4 A
• Insulation Class: F
• Ambient Temperature: 50 deg C
• Motor Shaft Rotation: CCWPE
• Shaft Design: Threaded
• Standards Approvals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
• Duty Cycle: Continuous
• Number of Speed: 1-Speed
• Motor Thermal Protection: Auto
• Flange Type: Square
• Bearing Type: Sealed Ball
