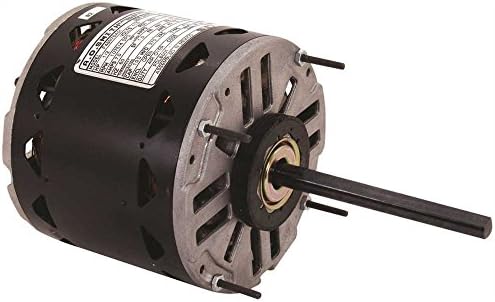

Regal Beloit FD6000A Masterfit Pro Fan and Blower Motor 1/2-1/6 HP

Product Description

The REGAL BELOIT FD6000A Masterfit Pro direct drive fan and blower motor operates at 208-230 V, 60 Hz. This motor features class B insulation and is thermally protected with open air over design. It has a 1/2" diameter shaft with a flat and 36" leads with quick connect terminals. Designed for a 370V capacitor.

• Direct drive fan and blower motor
• Thermally protected with open air over design
• Reversible rotation with 4 speeds

Product Highlights

The FD6000A is suitable for a variety of motor-driven applications. It is designed for easy installation and requires less inventory.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: FD6000A
• Country of Origin: India

Technical Specifications

• Output HP: 1/2-1/6 Hp
• Output KW: 0.37 kW
• Frequency: 60 Hz
• Voltage: 208-230 V
• Current: 3.9 A
• Speed: 1075 rpm
• Service Factor: 1
• Phase: 1
• Duty: Air Over
• Insulation Class: B
• Frame: 48
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Resilient Ring/Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.36 in
• Frame Length: 4.25 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 5.0 in
• Application Type: Fan & Blower Motors
• Enclosure Type: Open
• Frame Size: 48Y
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Number of Phases: 1 ph
• Temperature Rating: 40 deg C
• Type: UF
