Product Description

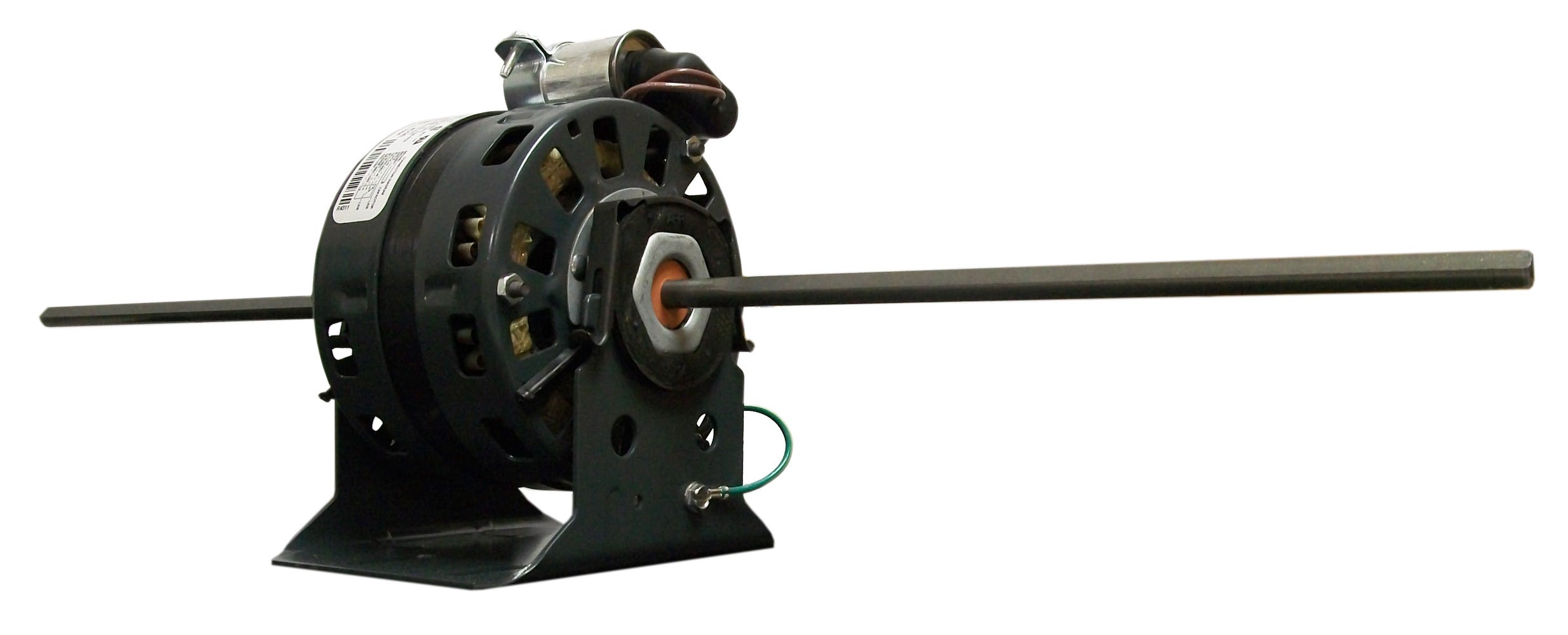

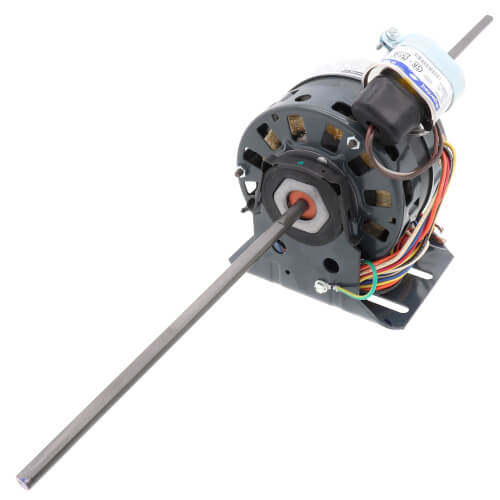

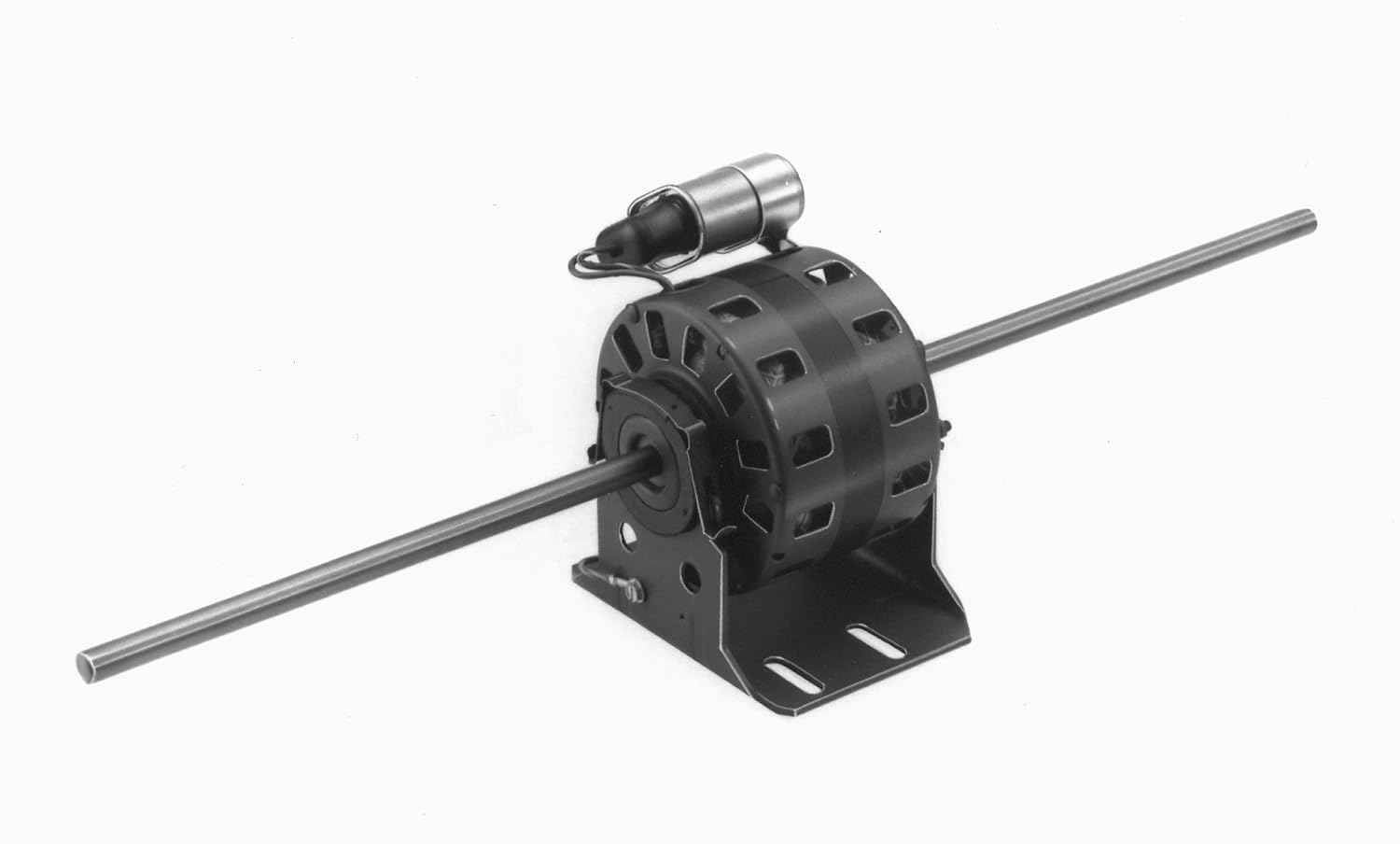

The Fasco D294 Fan Coil Air Conditioner Motor is a versatile unit designed for various HVAC applications, including air-conditioning and heating systems. This permanent split capacitor motor offers reliable performance with multiple speed settings.
- Thermally protected for safety
- Compatible with most fan coil air-conditioning and heating units
- Includes a 6M 370V capacitor
Product Highlights
The Fasco D294 motor is equipped with open ventilation for efficient cooling and sleeve bearings for smooth operation. It supports clockwise lead end rotation and comes with resilient mounting rings. This motor can be used in various HVAC systems, ensuring optimal air circulation and temperature control.
Product Information
Standard Information
-
Brand: Fasco
-
MPN: D294
-
Voltage: 115V
-
Speed: 1050 RPM
Technical Specifications
-
Horse Power: 1/10-1/20-1/25-1/35-1/50 HP
-
Amperage: 1.3/1.0/0.7/0.6/0.5 amps
-
Frame Size: 42
-
Shaft Diameter: 0.375 inches
-
Insulation Class: B
-
Duty: Continuous
-
Sleeve Bearing: Included
-
Ambient Temperature: 40 degrees Celsius
