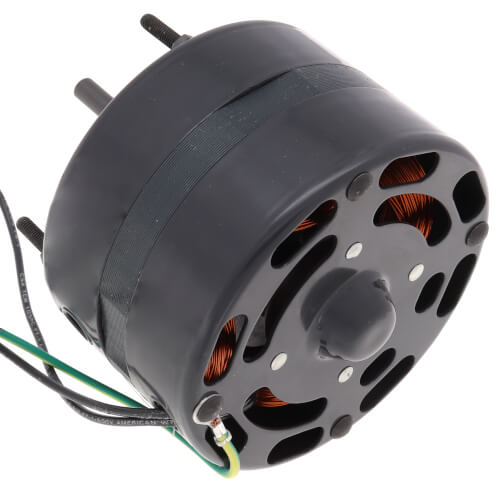

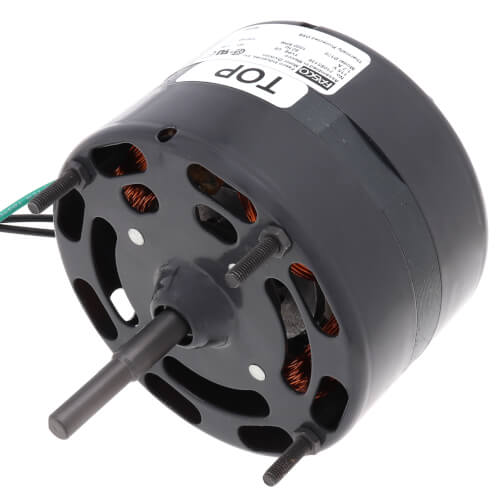

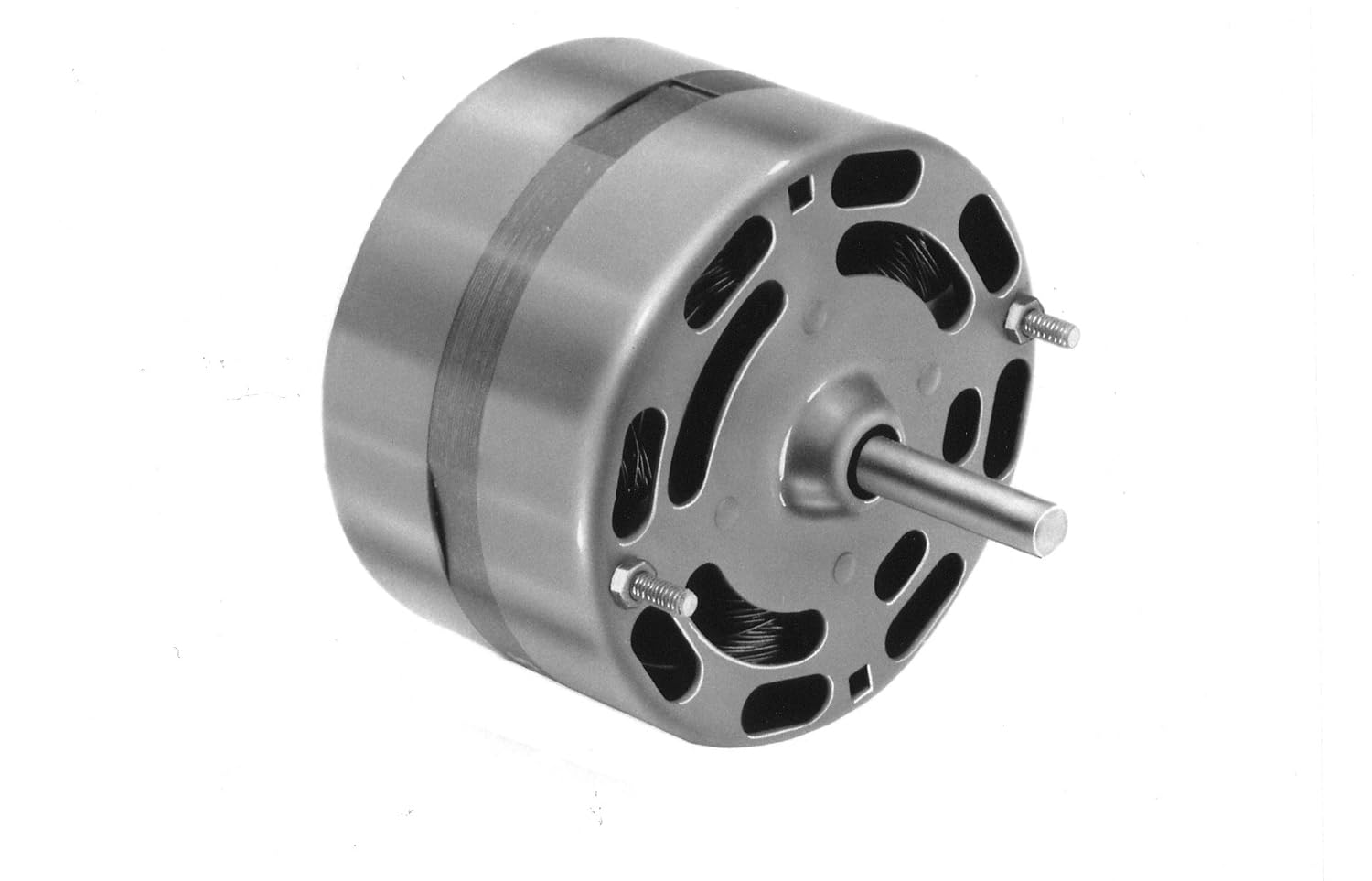

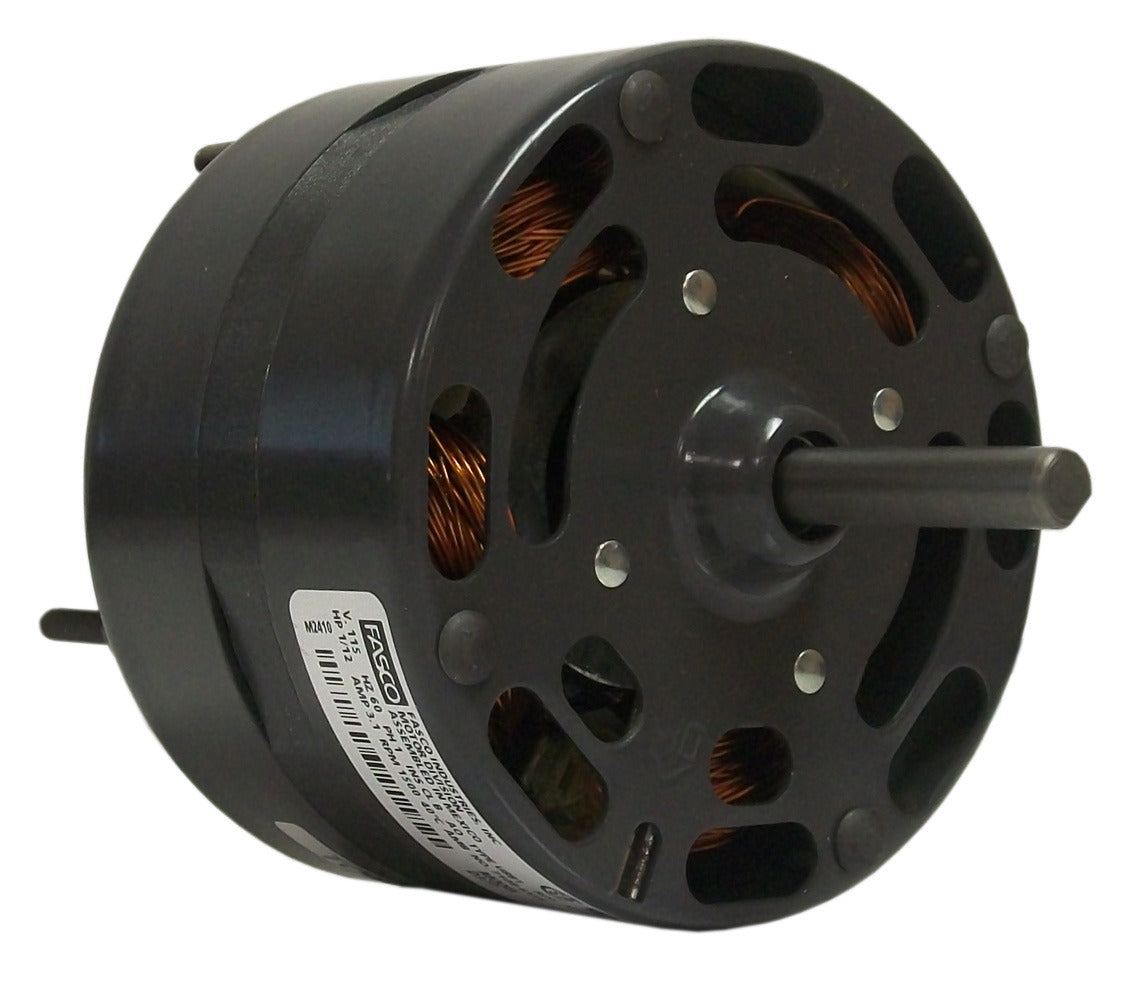

Fasco D170 General Purpose Motor 1/20HP 115V 1500RPM

Product Description

The Fasco D170 General Purpose Motor, 1/20HP, delivers reliable performance with a shaded pole. This motor operates at 1500 RPM and is designed for general use in various applications.

• Thermally protected
• UL recognized and CSA certified
• Clockwise shaft end rotation

Product Highlights

This motor features an open ventilated design and is equipped with a sleeve bearing for smooth operation. It is built to handle air-over duties in HVAC applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D170
• Type: Shaded Pole
• Application: General Purpose Motor

Technical Specifications

• Horse Power: 1/20 HP
• Voltage: 115V
• Amperage: 1.7A
• RPM: 1500
• Frequency: 60Hz
• Diameter: 4.4 inches
• Sleeve Bearing Type: Sleeve
• Shaft Diameter: 5/16 inches
• Shaft Length: 2.25 inches
• Frame Size: 4.4 inches
• Insulation Class: A
• Rotation: Clockwise Shaft End
• Mounting Type: Extended Studs
• Max Ambient Temperature: 104°F
• Enclosure Type: Open Air Over
• Thermal Protection: Included
• Standards: UL Recognized, CSA Certified
• Country of Origin: Mexico
