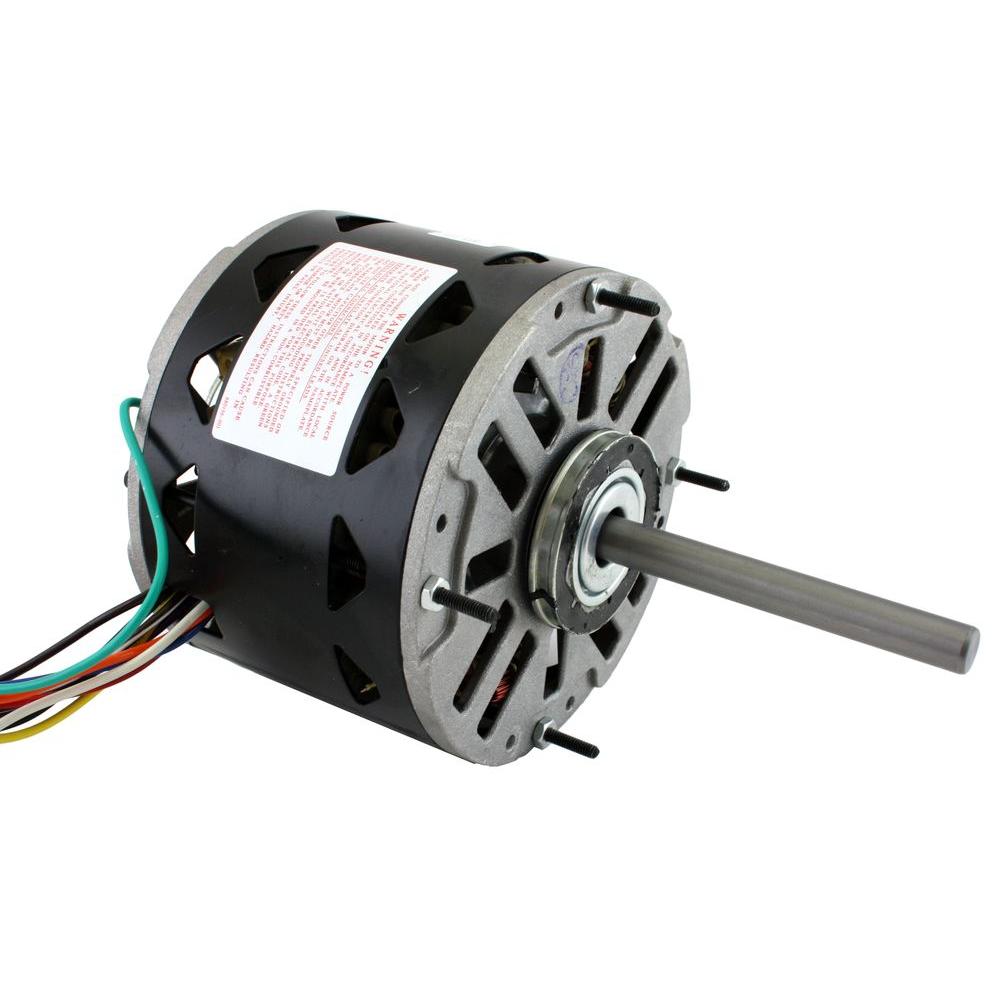

Regal Beloit D1036 Century UF Blower AC Motor 1/3 hp 208 to 230 VAC

Product Description

The Regal Beloit D1036 Century UF Blower AC Motor is designed for reliable performance in various applications. This motor operates at one third horsepower and is suitable for indoor and dual wheel blower applications. It runs on two hundred eight to two hundred thirty volts at sixty hertz and features a NEMA 48 frame.

• Continuous air-over design
• Standard efficiency operation
• Reversible rotation

Product Highlights

This motor is ideal for fan coil motors and includes essential components for installation, including a two and one-fourth inch ring and a two and one-half inch adapter.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: D1036

Technical Specifications

• Horsepower: 1/3 hp
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 2.7 A
• Frequency Rating: 60 Hz
• Dimensions: 5.625 inches diameter x 8.86 inches length
• Enclosure Type: Open
• Frame: NEMA 48
• Speed: 1075 rpm
• Rotation: Reversible
• Insulation Class: Class B
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Service Factor: 1
• Number of Phases: 1 ph
• Shaft Size: 4.5 inches length
• Temperature Rating: 40 degrees Celsius
• Application Type: Fan Coil Motors
