Product Description

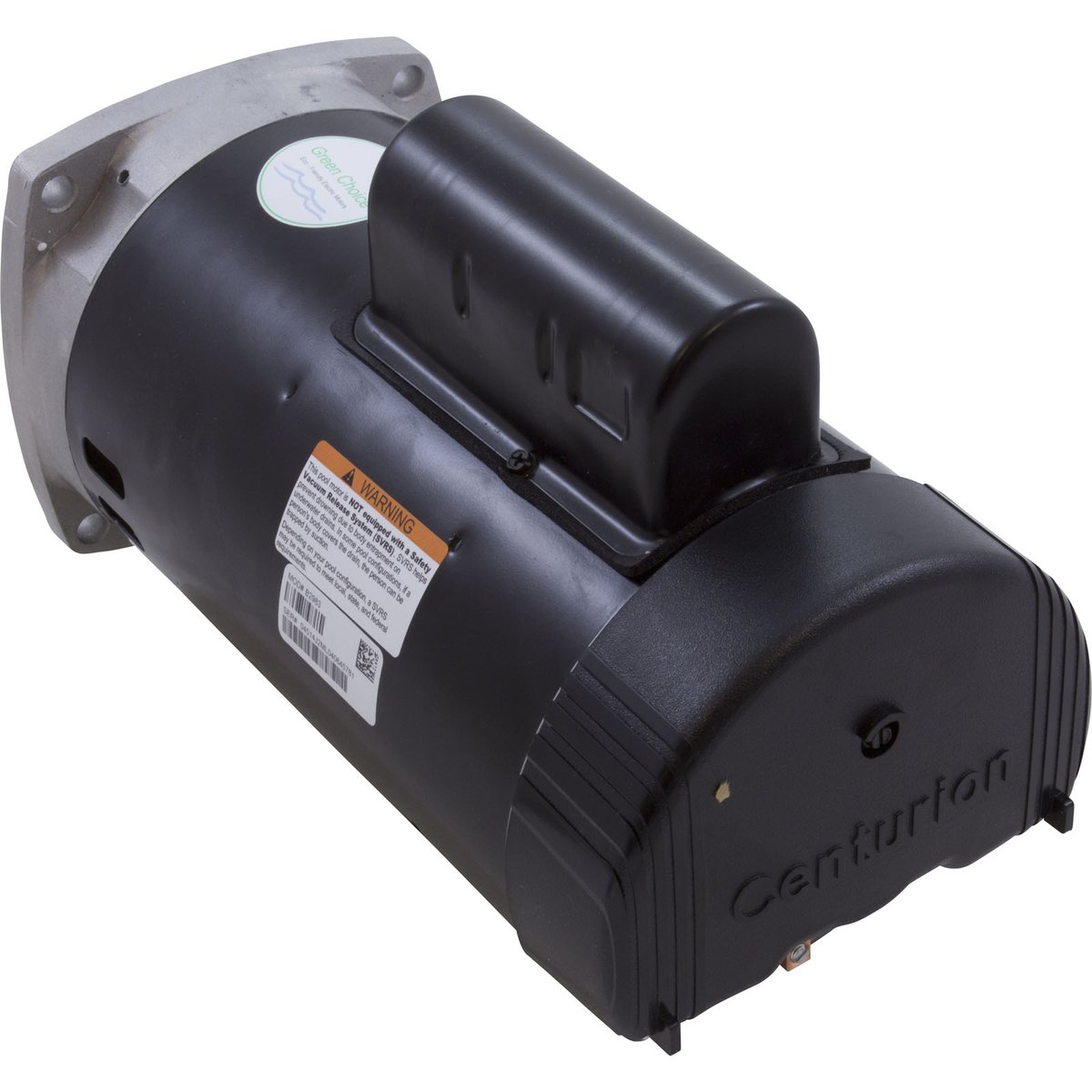

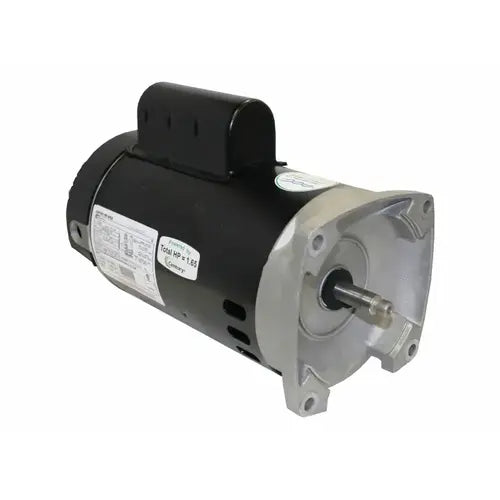

The Regal Beloit B2983 is an energy-efficient pump motor with a full-rated design. This motor features a high speed of 1.5 HP and a low speed of .19 HP. It operates at 230V and has a 56Y frame, square flange (face), and threaded shaft. The motor has a service factor of 1.47 and amperage of 10.0/1.6.
- Energy Efficient
- Full Rated Motor
- High and Low Speed

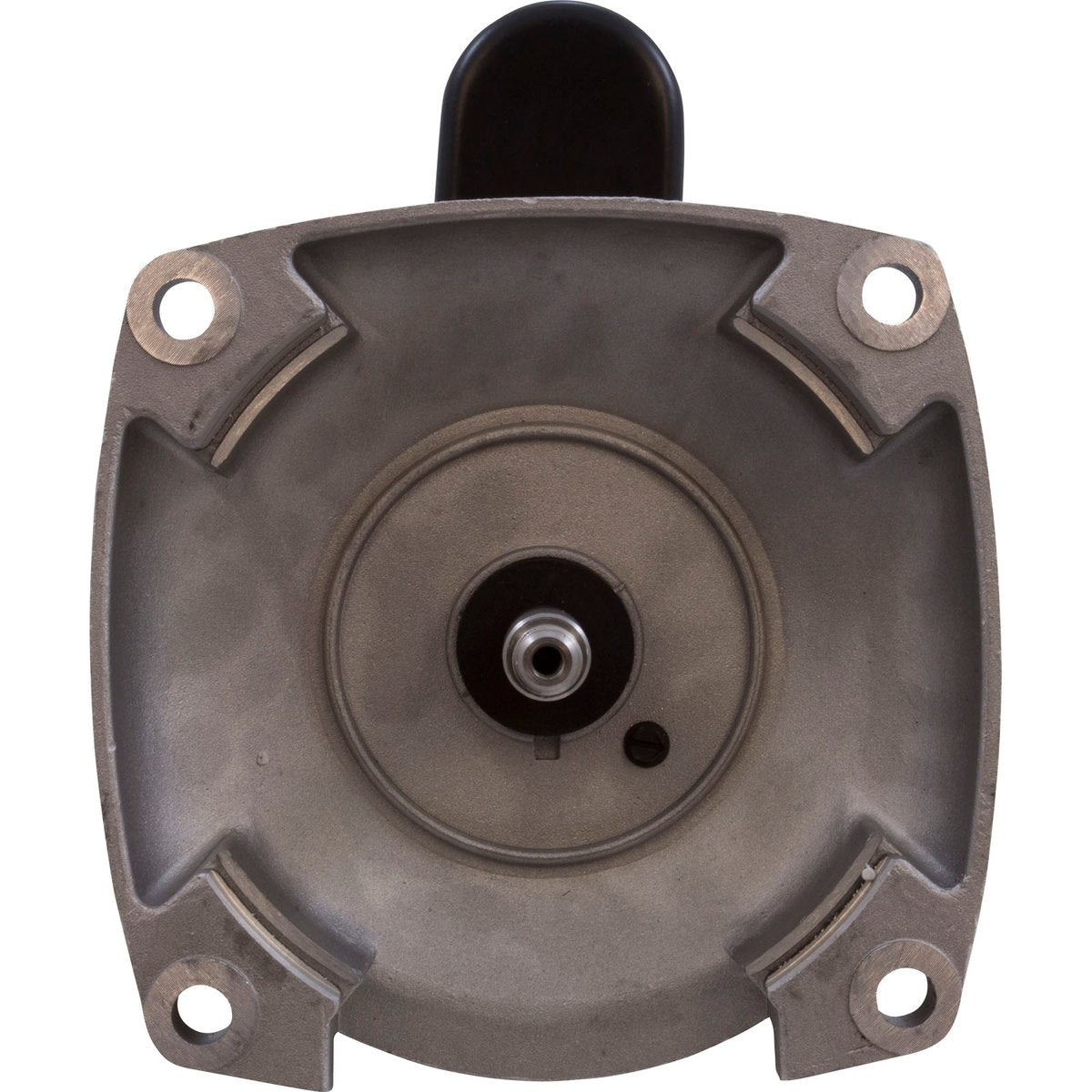

- Square Flange (Face)
- Threaded Shaft
Product Highlights
Energy-efficient pump motor with high and low-speed capabilities, designed for pool and spa applications.
Product Information
Standard Information
-

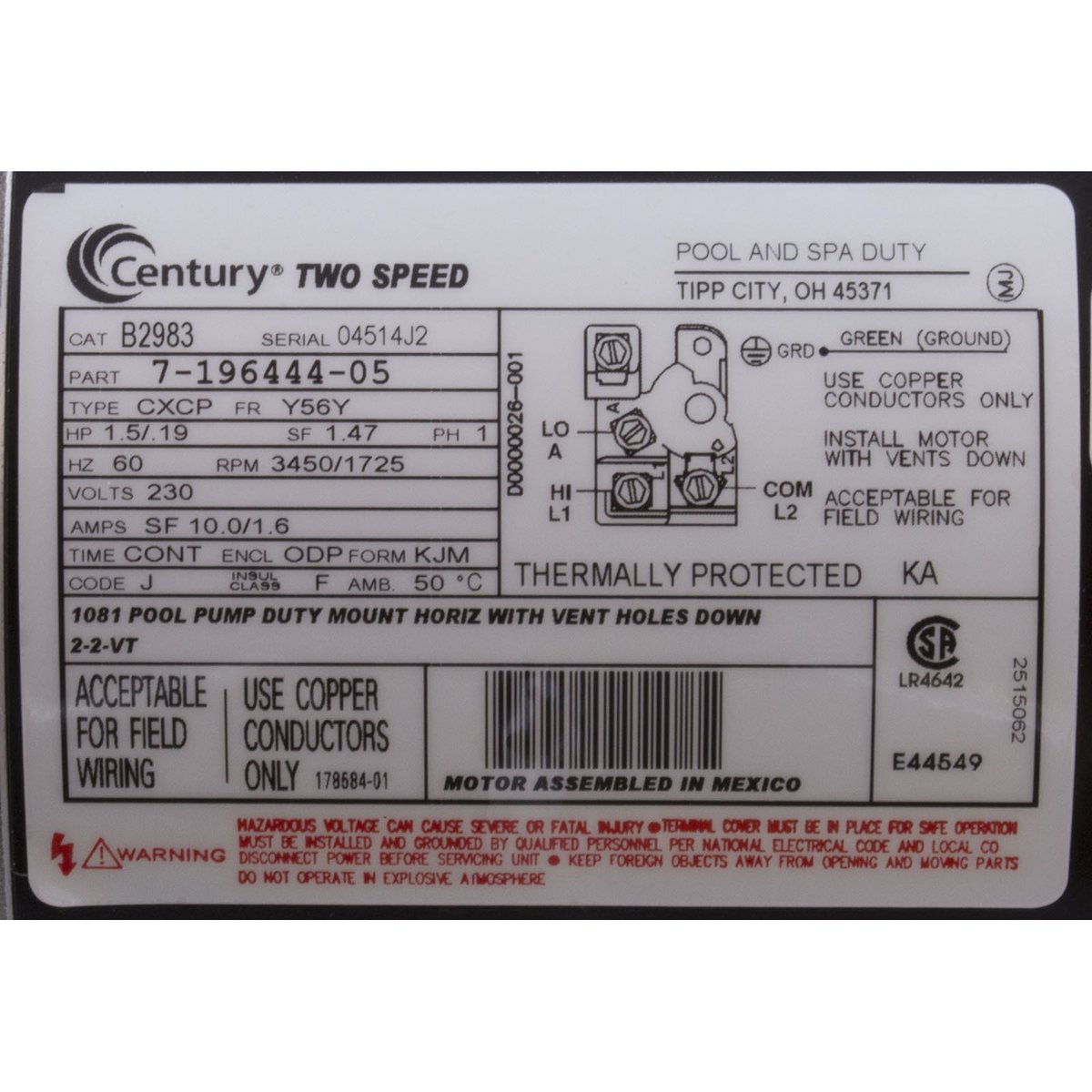

Brand: REGAL BELOIT
-
Manufacturer Part Number: B2983
-
Country of Origin: China
Technical Specifications
-
Voltage: 230 V
-
Frame: 56Y
-
HP High Speed: 1.5
-
HP Low Speed: .19
-
Service Factor: 1.47
-
Current: 10.0/1.6 A
-
Phase: 1
-
Output HP: 1.5/.19 Hp
-
Output KW: 1.1 kW
-
Speed: 3450/1725 rpm
-
Enclosure: Open Drip Proof
-
Thermal Protection: Thermally Protected
-
Ambient Temperature: 50 °C
-
Frequency: 60 Hz
-
Duty: Continuous
-
Insulation Class: F
-
Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed
-
Poles: 2/4
-
Rotation: Counterclockwise Pump End
-
Mounting: Round
-
Motor Orientation: Horizontal
-
Drive End Bearing: Ball
-
Opp Drive End Bearing: Ball
-
Frame Material: Rolled Steel
-
Shaft Type: 1/2 Threaded
-
Overall Length: 13.90 in
-
Frame Length: 9.50 in
-
Shaft Diameter: 0.625 in
-
Shaft Extension: 0.91 in
-
Packaged Length: 16.00 IN
-
Packaged Width: 9.50 IN
-
Packaged Height: 11.00 IN
-
Motor Type: Pool
-
Motor Amperage: 10.0A/1.6A
-
Horsepower: 1.5hp
-
Motor Shaft Type: Threaded
-
Motor Style: Square Flange
-

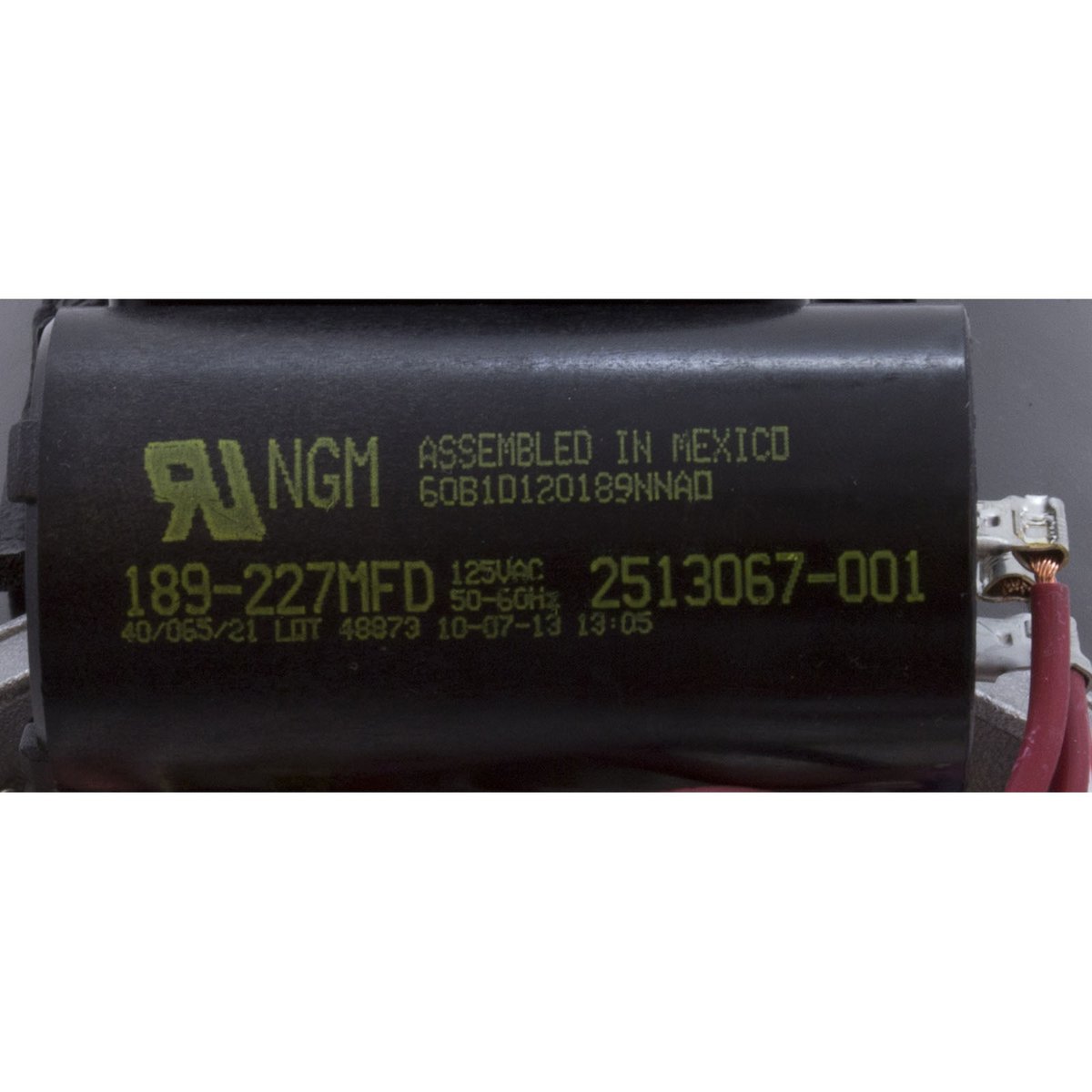

Capacitor On Top: Yes
-
MotorDesign: Capacitor Start/Run on Low Speed, PSC on High Speed
-
FlangeType: Square
-
MotorShaftRotation: CCWPE
-
ShaftLength: 1-7/8 Inch
-
ShaftMaterial: 303 Stainless Steel
-
EfficiencyGroup: High
-
MotorThermalProtection: Auto
-
Shaft: Threaded 1/2-20 UNF-2A RH
-
Nameplate RPM: 3450/1725
-
RPM Range: 3001-3600
-
Motor Application: Pump
-
Motor Bearings: Ball
-
Motor Design: Capacitor-Start/Run
-
Motor Efficiency Group: Energy Efficient
-
Motor Enclosure Design: Open Dripproof
-
Motor Mounting Type: Face
-
Full Load Amps: 10/1.6
-
Hz: 60
-
Max Ambient Temperature: 50 Degrees C
-
Ins. Class: F
