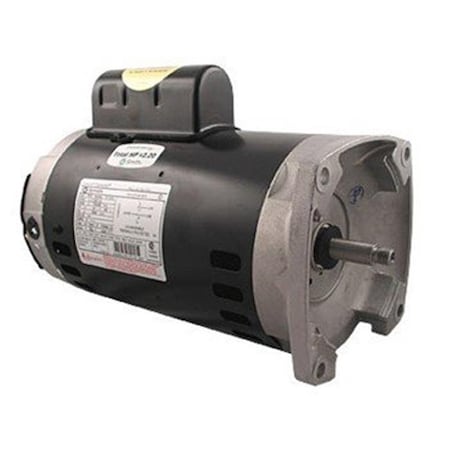

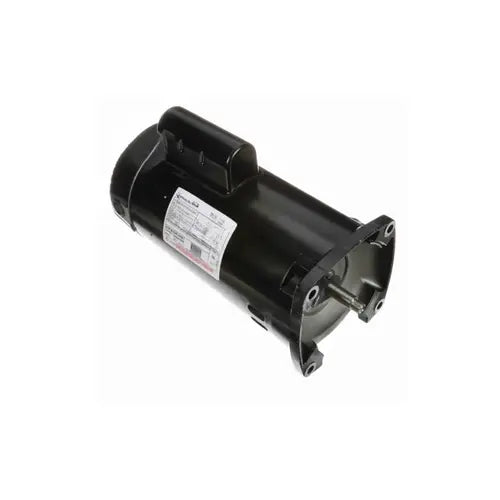

Regal Beloit B2858 Pool Pump Motor 1.5 HP 56Y Frame

Product Description

The REGAL BELOIT B2858 pool pump motor features a 56Y frame and is designed for pool and spa applications. This 1.5 HP motor is full-rated and capacitor start, with all copper windings and automatic thermal protection. It has a stainless steel threaded shaft and sealed ball bearings.

• Full Rated
• Square Flange (Face)
• Threaded Shaft
• Automatic thermal protection

Product Highlights

This motor is suitable for replacing pool pump motors requiring a 56Y frame, 1.5 HP, and 115/230V power, ensuring efficient pool and spa operation.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B2858
• Country of Origin: China

Technical Specifications

• Frame Size: 56Y
• Horsepower: 1.5 horse power
• Voltage: 115V ; 230V
• Amperage: 22.4 ; 11.2 amps
• Flange: Square Flange (Face)
• Shaft: Threaded Shaft
• Starting Method: Capacitor start
• Winding Material: All copper windings
• Thermal Protection: Automatic thermal protection
• Shaft Material: Stainless steel threaded shaft
• Bearing Type: Sealed ball bearings
• Service Factor: 1.50
• Phase: 1
• Output HP: 1.5 Hp
• Output KW: 1.1 kW
• Speed: 3450 rpm
• Enclosure: Drip Proof
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
• Poles: 2
• Rotation: Counterclockwise Pump End
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: 1/2 Threaded
• Overall Length: 14.40 in
• Frame Length: 10.00 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 0.91 in
• Packaged Length: 16.00 IN
• Packaged Width: 9.50 IN
• Packaged Height: 11.00 IN
• VoltageRating: 115/230 V
• DutyCycle: Continuous
• MotorDesign: PSC
• FullLoadAmps: 10.5/21.0 A
• SubBrand: Century®
• StandardsApprovals: UL 1081 Approved, CSA Certified
• RPM: 3450
• MotorShaftRotation: CCWPE
• ShaftMaterial: 303 Stainless Steel
• MountingType: C-Face, No Base
• EfficiencyGroup: Standard
• Type: Full-Rated, CX
• FinishColor: Black
• Diameter: 6-1/2 Inch
• Item: Pool and Spa Pump Motor
• ShaftLength: 15/16 Inch
• MotorThermalProtection: Auto
• EnclosureDesign: Open Dripproof
• FlangeType: Square
• Application: Above Ground,Pool,Spa
• Shaft Length: 0.9375 inch
• Motor Enclosure Type: Open Drip Proof
• Ambient temperature: 50 degrees Celsius
• Motor Rating: Full-Rated
• Motor Frame Size: 56Y
• RPMs Min: 3450
• Shaft Design: 1/2 Threaded
• RPMs Max: 3450
• Frequency Rating (Hz): 60
• Motor Shaft Rotation: Counterclockwise Pulley End
• Amps High Speed: 21
• Motor Thermal Protection: Automatic Reset
