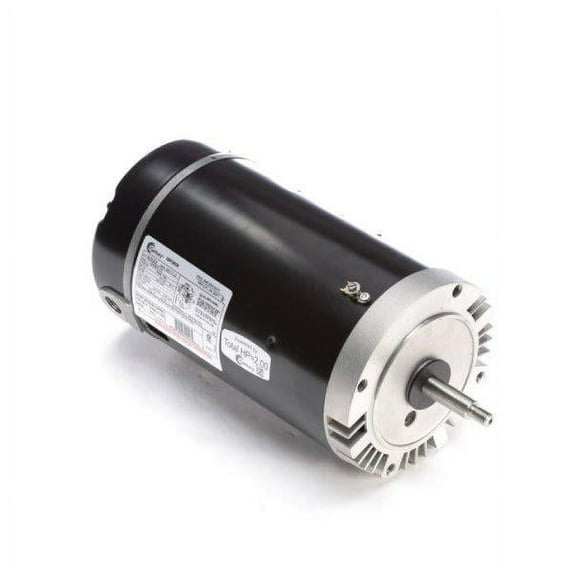

Regal Beloit B230SE AO Smith Motor 2HP 115-230V

Product Description

The Regal Beloit B230SE AO Smith Motor is a 2HP motor operating at 115-230V. This single-phase motor features a permanent split capacitor for enhanced running efficiency and meets industry standards with its 1081 design. It is constructed with aluminum NEMA brackets for durability and long-lasting operation.

• Features a stainless steel shaft and ball bearings.
• Equipped with an auto overload protector.
• Suitable for pool and spa pump applications.

Product Highlights

This motor delivers high performance with a C-Face, up-rated design, and a threaded shaft.

Product Information

Standard Information

• Brand: REGAL BELOIT
• Manufacturer Part Number: B230SE
• Country of Origin: China

Technical Specifications

• Horse Power: 2.0
• Amperes: 9.2/18.4
• Frequency: 60 Hz
• RPM: 3450
• Voltage: 115/230 V
• Number of Speeds: 1
• Motor Type: CX
• Frame Size: Y56J
• Nema Suffix: J
• Service Factor: 1.00
• Phase: 1
• Enclosure: ODP
• Bearings: BALL
• Ambient Temperature: 50 deg C
• Insulation Class: B
• Rotation: CCW
• Material: Aluminum
• Diameter: 6-1/2 Inch
• OverallLength: 14.31 Inch
• Bearing Type: Ball
• FinishColor: Black
• FullLoadAmps: 9.2/18.4 A
• HP: 2
• Item: Pool and Spa Pump Motor
• MountingType: C-Face, No Base
• StandardsApprovals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
• SubBrand: Century®
• EnclosureDesign: Open Dripproof
• FlangeMaterial: Aluminum
• ThrustHorsepower: 2
• ShaftDesign: Threaded
• ShaftLength: 2-9/16 Inch
• ShaftMaterial: 303 Stainless Steel
• ShaftDiameter: 5/8 Inch
• DutyCycle: Continuous
• MotorThermalProtection: Auto
• EfficiencyGroup: Standard
• NumberofSpeed: 1-Speed
• MotorDesign: PSC
• MotorShaftRotation: CCWPE
• Application: Pool
• Horsepower: 2 horse power
• Motor Enclosure Type: Open Drip Proof
• Flange Type: Round
• Motor Speed: 1-Speed
• Motor Rating: Up-Rated
• Commercial, Residential, or Professional: Residential
• Motor Frame Size: 56J
• RPMs Min: 3450
• RPMs Max: 3450
• Amps Low Speed: 9.2
• Frequency Rating (Hz): 60
• Amps High Speed: 18.4
• Motor Thermal Protection: Automatic Reset
• P/N: B230SE
• OEM: Regal Beloit America, Inc. (Century Electric Motors)
• OEM #: B230SE
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Efficiency Group: Standard Efficient
• Motor Flange Material: Aluminum
• Motor Mounting Type: Face
• Motor Service Factor: 1
• Motor Sub Application: Pool and Spa Pump
• Nameplate RPM: 3450
• RPM Range: 3001-3600
• Shaft: Threaded 7/16-20 UNF-2A RH 11/16 in From End
• Standards: CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022)
• Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
• Electric motor type: AC Motor
• Electrical phase: Single Phase
• Volts: 230 V
