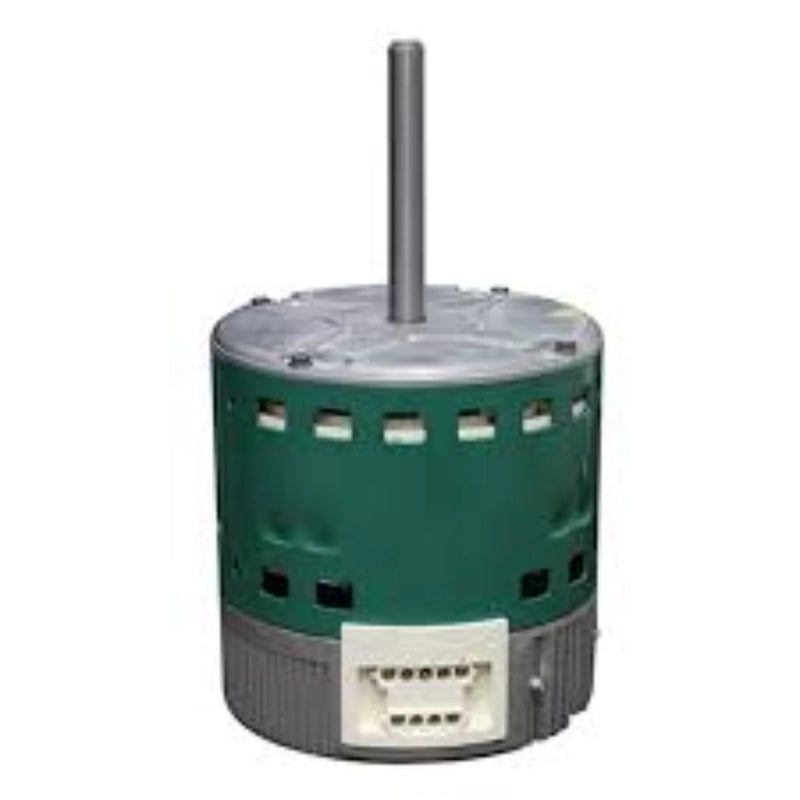

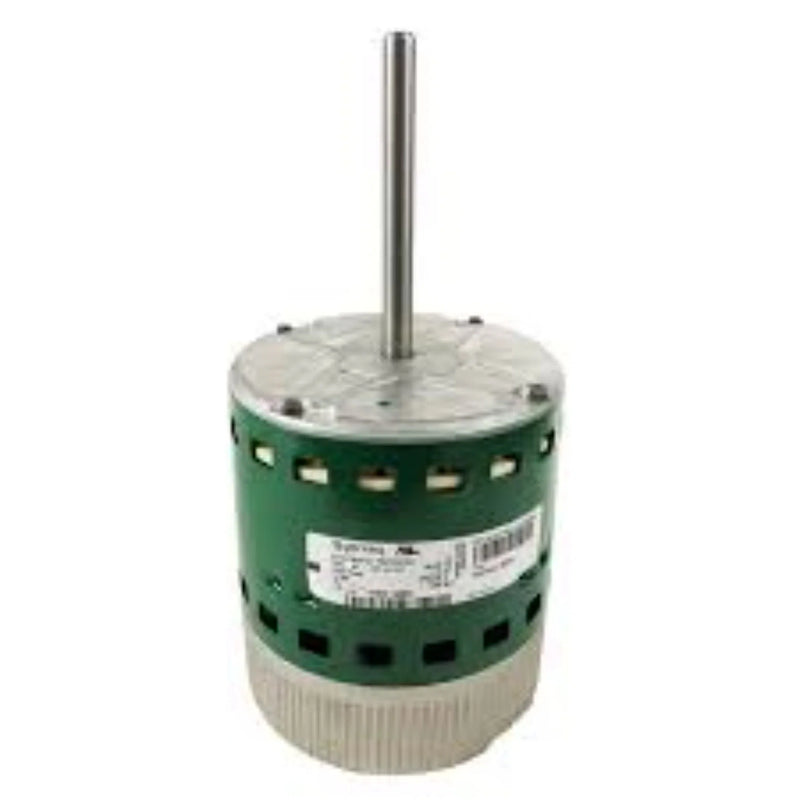

Regal Beloit 6507V Genteq Evergreen VS Fan and Blower Motor 3/4 HP 120/240 V

Product Description

The Regal Beloit 6507V Genteq Evergreen VS is a reliable ECM variable speed replacement motor. This motor is built for open air over applications and features electronic protection for added reliability. It has a Class B insulation rating and operates effectively at an ambient temperature of fifty-five degrees Celsius. The design includes ball bearings and a half-inch diameter shaft with a flat end, making it compatible with various setups.

• Electronically Commutated (ECM)
• 5.6 inches diameter - 48 frame
• Class B insulation

Product Highlights

The Regal Beloit 6507V is ideal for HVAC applications, offering energy efficiency and reliable performance.

Product Information

Standard Information

• Brand: Regal Beloit
• MPN: 6507V

Technical Specifications

• Phase: 1
• Output HP: 3/4 HP
• Output KW: 0.56 kW
• Voltage: 120/240 V
• Speed: 1050 rpm
• Service Factor: 1
• Frame: 48
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 55 degrees Celsius
• Frequency: 60 Hz
• Current: 10.1/6.1 A
• Duty: Continuous Air Over
• Insulation Class: B
• Number of Speeds: Variable Speed
• Electrical Type: Electronically Commutated Motor
• Poles: 12
• Rotation: Counterclockwise/Clockwise
• Mounting: Round
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 11.96 inches
• Frame Length: 4.82 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.00 inches
