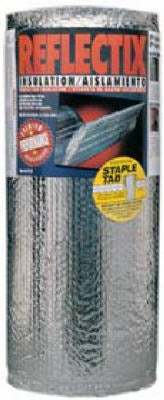

Reflectix Inc ST16025 Staple Tab Insulation Roll 16x25

Product Description

The REFLECTIX INC ST16025 is a double-bubble foil reflective insulation roll designed for installation between wall studs spaced 16 inches on center. The roll measures 16 inches wide by 25 feet long and features a double-bubble core with foil laminated on both sides, providing a radiant barrier that resists heat transfer. At 3 pounds, it is lightweight and easy to handle in tight stud bays. R-value varies depending on installation method and application context, so consult local building codes and the manufacturer's documentation for the appropriate R-value claim for your specific assembly. Insulation contractors, framers, and HVAC technicians working on wall and cavity assemblies are the primary installers.

This product is intended for residential and light commercial wall cavity applications where studs are set 16 inches on center. It fits snugly between standard framing members and is secured using staples along the integrated tab edges. The staple tab design allows the installer to create an air gap on one or both sides of the material, which is key to achieving the product's rated reflective performance. It is well suited for exterior wall assemblies, crawlspace walls, and similar cavities where a radiant barrier or supplemental insulation layer is needed.

Key Features

• Double-bubble core with foil laminated on both sides for radiant barrier performance
• Staple tab edges allow secure fastening to wood or metal framing members
• Sized to fit standard 16-inch on-center stud spacing without cutting or trimming
• Lightweight at 3 pounds per roll for easy one-person handling
• R-value varies by application and air gap configuration

Compatibility

Designed for installation in wall cavity assemblies with framing members set 16 inches on center, typical of standard residential wood-frame and light commercial construction.

Installation Notes

Installation is typically performed by insulation contractors or framing crews following local building code requirements. Staple the tab edges directly to the faces of the studs, maintaining an air gap between the foil surface and adjacent materials to achieve reflective insulation performance. Avoid compressing the bubble core, as compression reduces effective R-value. Consult applicable energy codes, such as IECC requirements for your climate zone, to confirm the assembly meets minimum thermal performance standards.

Technical Specifications

• Width: 16 inches
• Length: 25 feet
• Construction: Double bubble, foil both sides
• Stud Spacing: 16 inches on center
• Weight: 3 pounds
• Unit of Measure: Roll
• Package Quantity: 12

Standard Information

• Brand: REFLECTIX INC
• Manufacturer Part Number: ST16025
