Refco VAMP-F Universal Voltage Condensate Removal Pump (100-240V)

Product Description

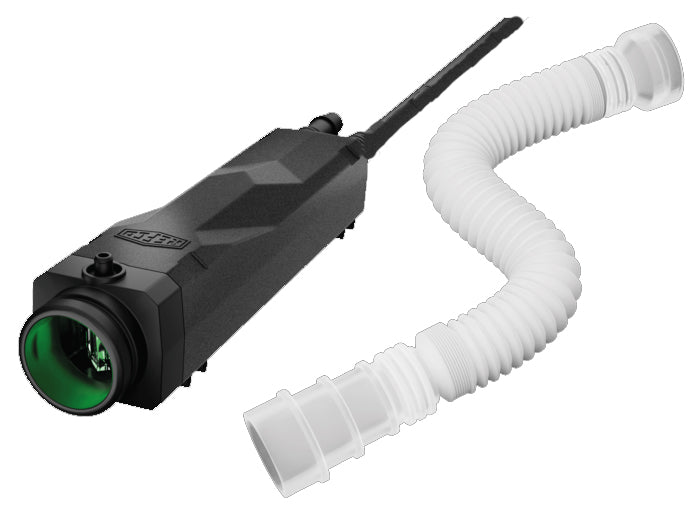

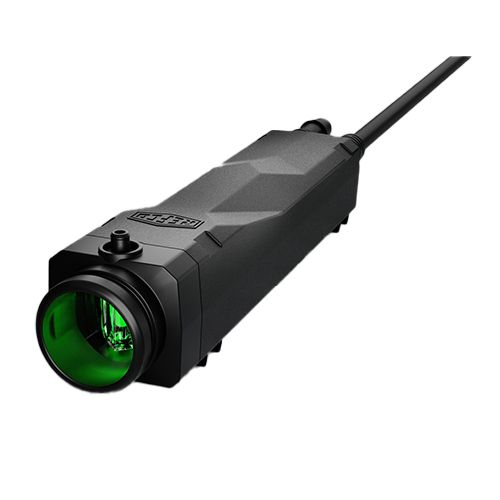

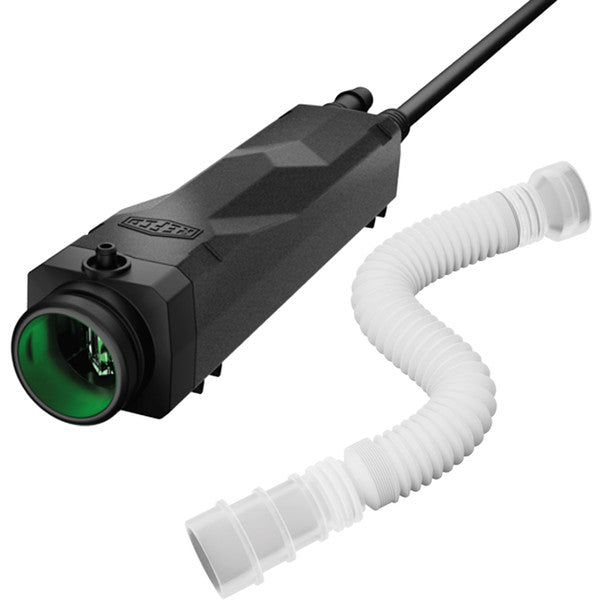

The REFCO VAMP-F is a condensate pump featuring an integrated reservoir and an optical level sensor. It is known for its quick and easy installation, versatility, and quiet operation. Designed for wall-mounted, ceiling, and floor units, it handles up to 22 liters per hour and a discharge height of up to 15 meters.

• Minimal space requirement, standing at just 26 mm tall
• Operates at less than 20 dB(A)
• Tool-Free Installation - the posable hose serves as a reservoir replacement (with filter and adapter) for direct connection to the condensate tray

Product Highlights

This compact and quiet condensate pump is suitable for various installation types and offers reliable operation with its optical sensor and adapter plug.

Product Information

Standard Information

• Brand: REFCO
• Manufacturer Part Number: VAMP-F
• Country of Origin: United States

Technical Specifications

• Voltage: 100-240V
• Product Type: Condensate Removal Pump
• Max. Flow Rate: 6 GPH
• Max. Discharge Head: 50 ft
• Max. Horizontal Run: 246 ft at 0 ft head and 0 ft suction
• Noise Level: 18 dB(A)
• Type: Diaphragm type
• Tube Diameter: 1/4 "
• Frequency: 50Hz/60Hz
• Energy Consumption: 6 W
• Power Consumption Idle: 0.6 W
• Protection Class: II
• Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
• Ingression Protection: IP44
• Operating Temperature Range: 37 °F – 104 °F
• Water Temperature Range: 37 °F – 104 °F
• Storage Temperature Range: -4 °F – 158 °F
• Material: Polyamide, FR-4
• Standards: IEC 60335-1, IEC 60335-2-41, UL 778, CSA C22.2 #108
• RoHS Conformity: Yes
