Refco VAMP-CK Vamp-Ck

Product Description

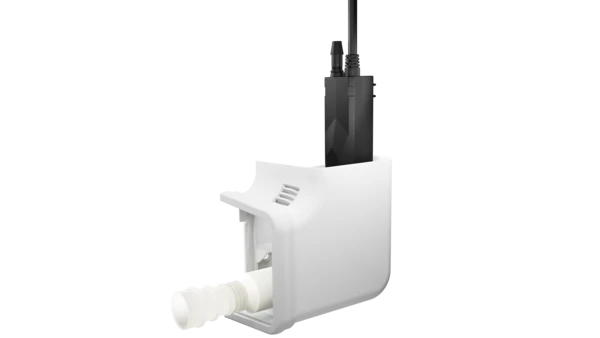

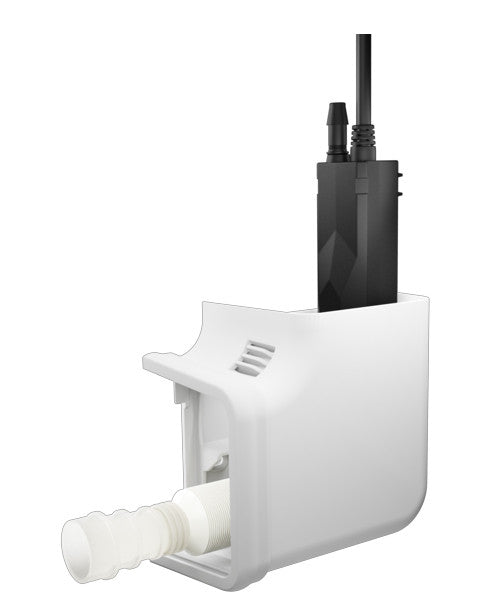

The REFCO VAMP-CK is designed for new installations in corner ducts, featuring a clever design and minimal space requirements. The corner piece enables precise and secure mounting. It is compatible with common duct systems that can be added by HVAC professionals. The optical sensor ensures accurate water level measurement and low-maintenance operation.

• Compact design with smallest corner piece and minimal gaps.
• Easy and secure pump installation.
• Whisper-quiet operation below 18 dB(A) thanks to diaphragm technology and vibration damping.

Product Highlights

The VAMP-CK condensate pump offers a compact, quiet, and efficient solution for condensate removal in corner duct installations, ensuring a visually clean setup.

Product Information

Standard Information

• Brand: REFCO
• Manufacturer Part Number: VAMP-CK
• Country of Origin: Switzerland

Technical Specifications

• Max. Flow Rate: 6 GPH
• Max. Discharge Head: 50 ft
• Max. Horizontal Run: 246 ft at 0 ft head and 0 ft suction
• Noise Level: 18 dB(A)
• Type: Diaphragm type
• Tube Diameter: 1/4 "
• Voltage: 100 - 240 VAC
• Frequency: 50Hz/60Hz
• Energy Consumption: 6 W
• Power Consumption Idle: 6 W
• Protection Class: II
• Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
• Ingression Protection: IP44
• Operating Temperature Range: 37 °F – 104 °F
• Water Temperature Range: 37 °F – 104 °F
• Storage Temperature Range: -4 °F – 158 °F
• Material: Polyamide | FR-4
• Standards: IEC 60335-1, IEC 60335-2-41, RoHS Conformity
