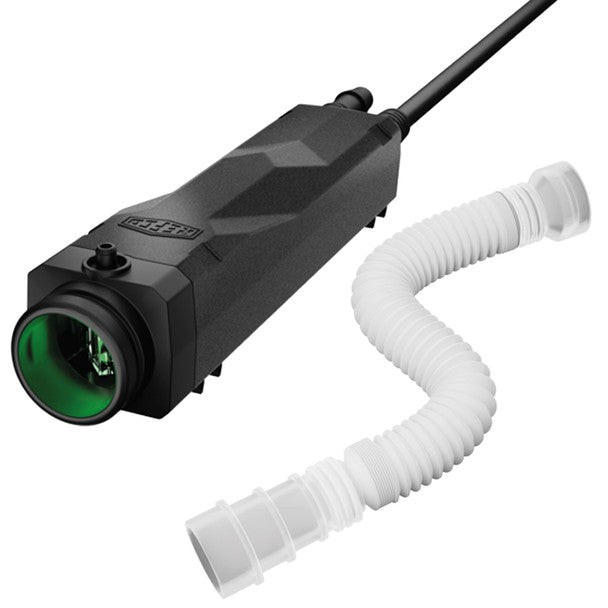

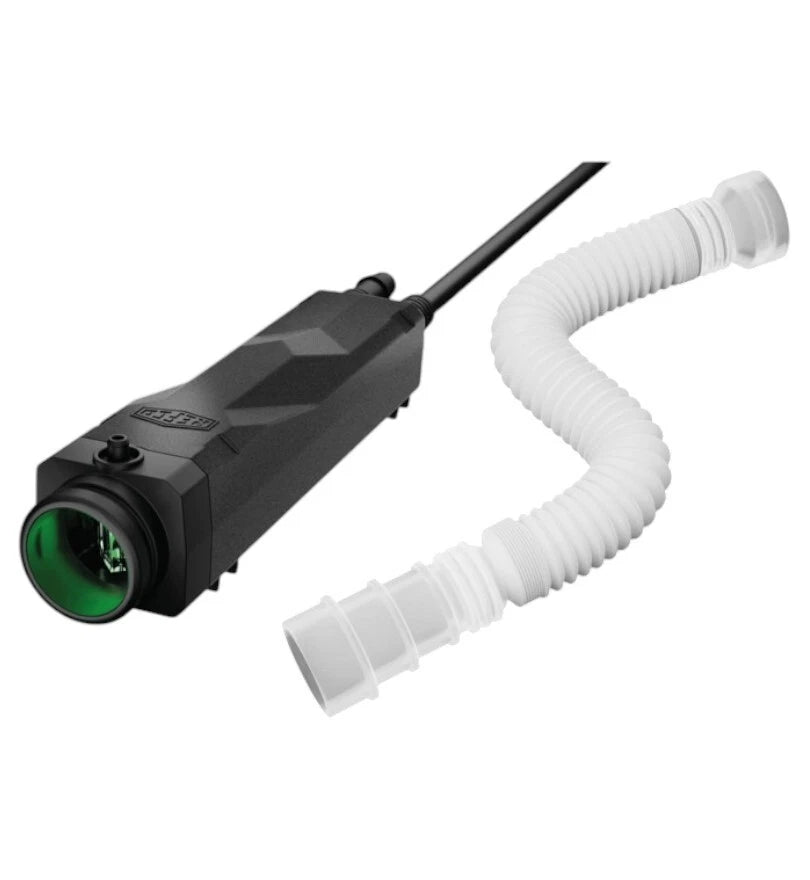

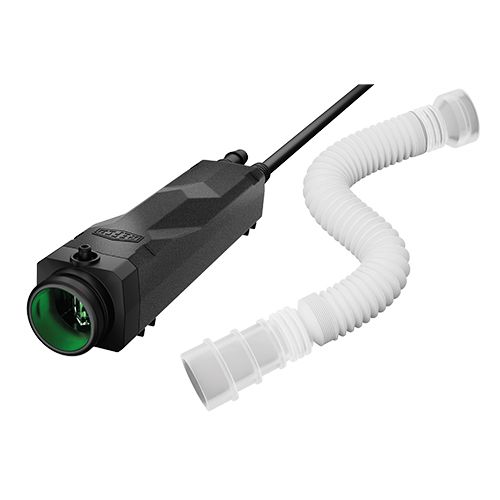

REFCO 3004238 VAMP-F Condensate Pump 3004238

Product Description

The REFCO VAMP-F is a condensate pump, model number 3004238, designed to effectively remove condensate from HVAC systems. This pump comes with an integrated reservoir and an optical level sensor, ensuring reliable operation.

• Integrated reservoir and optical level sensor
• Diaphragm pump mechanism
• Suitable for various installation types

Product Highlights

This pump's compact design allows for easy installation in wall-mounted, ceiling, or floor units.

Product Information

Standard Information

• Product Type: Condensate Pump
• Max. Flow Rate: 6 GPH

Technical Specifications

• Max. Discharge Head: 50 ft
• Max. Horizontal Run: 246 ft at 0 ft head and 0 ft suction
• Noise Level: 18 dB(A)
• Type: Diaphragm type
• Tube Diameter: 1/4 inches
• Input Voltage: 100 - 240 VAC
• Frequency: 50Hz/60Hz
• Energy Consumption: 6 W
• Protection Class: II
• Ingress Protection: IP44
• Operating Temperature Range: 37 °F to 104 °F
• Storage Temperature Range: -4 °F to 158 °F
