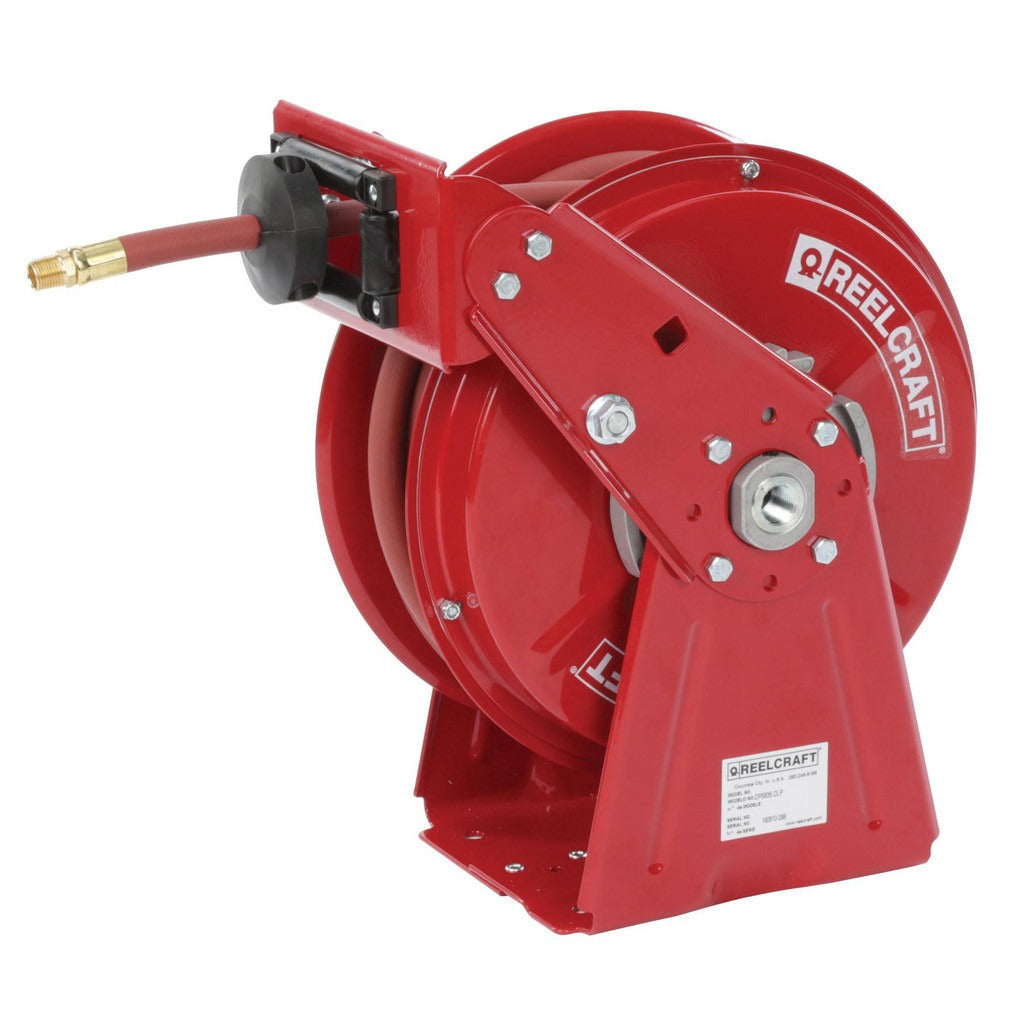

Reelcraft DP5635 Olp Spring Retractable Hose Reel 35 Ft

Product Description

The REELCRAFT DP5635 OLP is a spring-retractable hose reel from the DP5000 series, supplied with a 35-foot hose already installed. Designed for air and water service, the reel maintains a maximum working pressure of 300 psi and handles fluid temperatures up to 150 degrees F. The inlet is a 1/2-inch FNPT connection and the outlet is a 1/4-inch MNPT. At 41 pounds, it is a durable, job-ready unit suited for shops, service bays, and light industrial environments where a self-retracting hose management solution is needed. Installation and servicing are typically performed by HVAC technicians, plumbers, or general maintenance mechanics.

The DP5635 OLP is rated for both air and water applications, making it versatile across plumbing, HVAC, and general mechanical service settings. The spring-retraction mechanism keeps hose off the floor and extends hose life by preventing kinks and tangles. The reel ships with hose included, so no separate hose purchase is required. Its red finish aids visual identification in busy work environments. This unit is suited to wall-mount or similar fixed installations in residential shops, commercial service bays, or light industrial facilities.

Key Features

• Spring-retractable drive automatically retrieves hose after each use
• Hose included - 3/8-inch ID, 35 feet in length, ready to install
• Rated to 300 psi maximum working pressure
• Compatible with both air and water service
• 1/2-inch FNPT inlet and 1/4-inch MNPT outlet for standard connection
• Rated to 150 degrees F maximum fluid temperature
• Red reel color for quick identification in the field

Compatibility

Designed for air and water service applications. Part of the REELCRAFT DP5000 series of spring-retractable hose reels.

Installation Notes

Installation should be performed by a qualified mechanic or tradesperson familiar with compressed air or water supply systems. Shut off the air or water supply and bleed all pressure from the line before connecting or disconnecting fittings. Use appropriate thread sealant on FNPT and MNPT connections and verify all fittings are secure before pressurizing the system. Mount the reel to a structurally adequate wall or ceiling surface capable of supporting the unit weight plus hose load.
