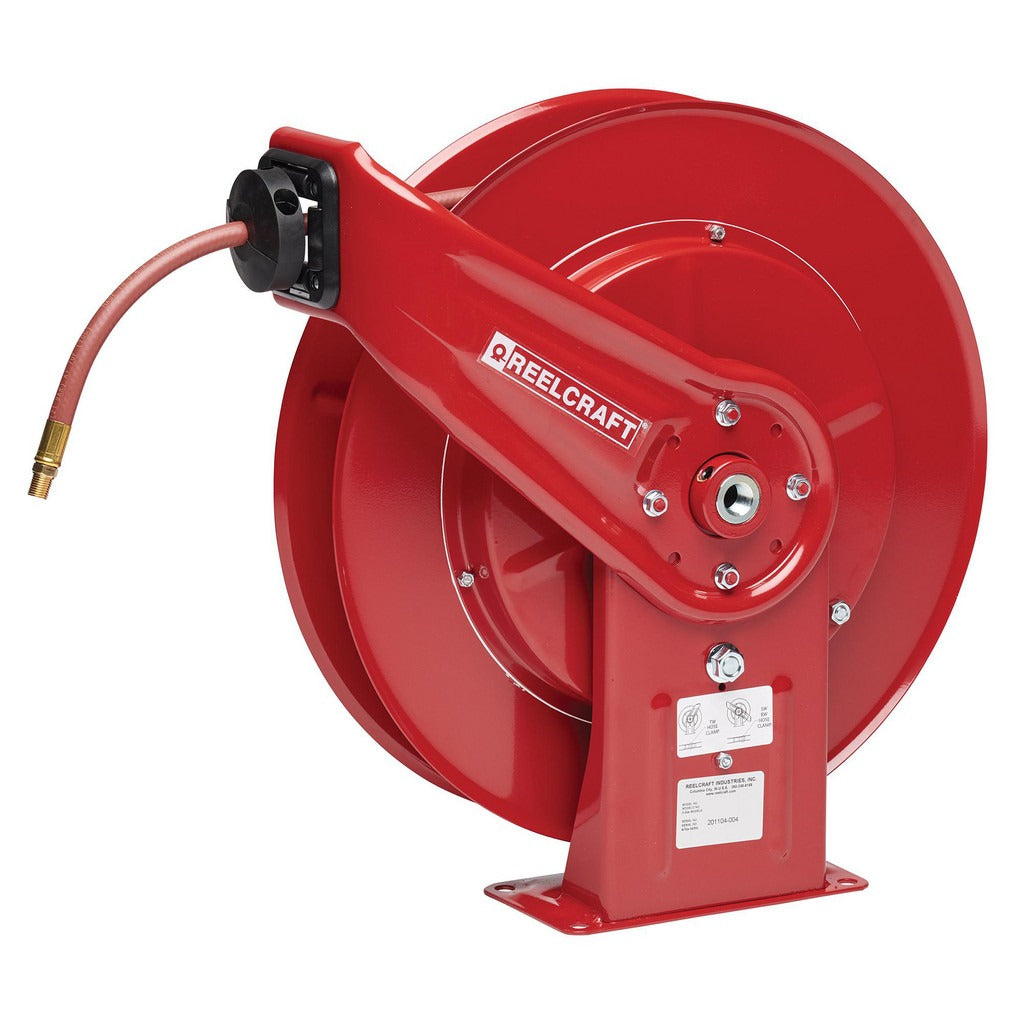

Reelcraft 7670 Olp Spring Retractable Hose Reel 70 Ft

Product Description

The REELCRAFT 7670 OLP is a spring retractable hose reel that ships complete with a 70-foot hose pre-installed. Built on the REELCRAFT 7000 Series platform, it is designed for demanding air and water service in industrial, commercial, and trade shop environments. The reel accepts a 3/8 inch ID hose rated to 300 psi working pressure and connects via a 1/2 inch FNPTF inlet. The spring-drive retraction mechanism returns the hose automatically after each use, reducing clutter and wear. At 50 pounds, the assembly is substantial enough for wall or ceiling mounting in fixed service bays, maintenance shops, or mechanical rooms.

This reel is suited for air tool supply lines, washdown stations, pneumatic equipment drops, and general water service where a managed, retractable hose is preferable to a loose coil. The 70-foot hose length provides adequate reach for most single-bay service applications without requiring hose extensions. Typical installers include industrial maintenance technicians, HVAC service shops, plumbing contractors, and general mechanical trades operating out of fixed facilities. The 300 psi maximum working pressure accommodates standard shop air systems and typical water supply pressures without derating.

Key Features

• Spring retractable drive returns hose automatically after use
• Ships with hose included — 3/8 inch ID, 70 feet in length
• 300 psi maximum working pressure for air and water service
• 1/2 inch FNPTF inlet for direct connection to standard supply lines
• 7000 Series construction rated for commercial and industrial use
• Overall dimensions of 7 x 20.25 x 19 inches for compact mounting footprint

Compatibility

Designed for fixed-mount air and water service installations. Compatible with standard 1/2 inch NPTF supply connections. Suitable for use with compressed air systems and water lines within the 300 psi working pressure rating.

Installation Notes

Installation is typically performed by a qualified industrial or mechanical technician. Shut off the air or water supply and depressurize the line before making inlet connections. Secure the reel to a structurally sound wall, ceiling, or mounting bracket rated to support the assembly weight of 50 pounds plus hose tension load. Verify inlet thread compatibility with the supply fitting before final make-up to avoid thread damage on the FNPTF port.
