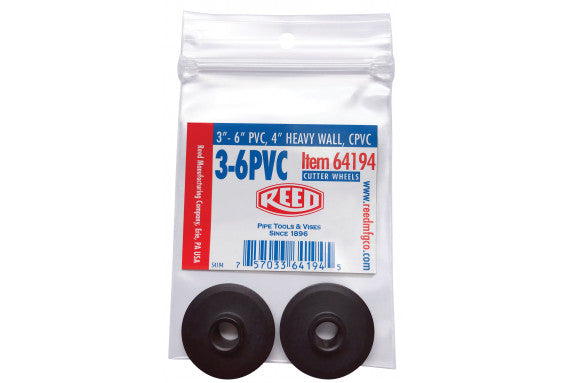

Reed 64194 Cutter Wheels Pvc Abs Cpvc 2 Pack

Product Description

The REED 64194 is a 2-pack of replacement cutter wheels designed for use with REED quick-action pipe cutters. These wheels provide the cutting edge that slices cleanly through plastic pipe, and replacing worn or damaged wheels restores full cutting performance without replacing the entire tool. Each wheel has a blade exposure of 0.377 inches (9.6 mm), which governs how deep the wheel scores the pipe wall per rotation. Plumbers and pipefitters working with plastic pipe systems rely on sharp cutter wheels to achieve clean, square cuts that seat properly in fittings.

These replacement wheels are suited for cutting ABS, PVC, and CPVC pipe in standard wall thickness. They also handle 4-inch heavy wall PVC, making them practical for larger-diameter runs in drain, waste, and vent systems as well as pressure piping. They are sold in a 2-pack, so a spare is on hand when a wheel dulls or chips mid-job. Compatible models include the REED TC3Q, TC4Q, TC5Q, and TC6Q pipe cutters.

Key Features

• Fits REED TC3Q, TC4Q, TC5Q, and TC6Q quick-action pipe cutters
• Blade exposure of 0.377 inches (9.6 mm) for consistent scoring depth
• Rated for ABS, PVC, and CPVC pipe in standard wall configurations
• Also rated for 4-inch heavy wall PVC pipe
• 2-pack format keeps a backup wheel available on the job

Compatibility

Designed for use with REED pipe cutters TC3Q, TC4Q, TC5Q, and TC6Q. Rated for ABS, PVC, and CPVC standard wall pipe, and 4-inch heavy wall PVC.

Installation Notes

Cutter wheel replacement on REED quick-action cutters is a tool-maintenance task typically performed by a plumber or pipefitter in the field. Before swapping the wheel, relieve any cutting pressure and ensure the tool is fully opened. Follow the tool manufacturer's wheel-change procedure to seat the new wheel correctly in the roller carriage. Inspect the replacement wheel for proper seating before resuming cuts to avoid scoring that produces uneven pipe ends.

Technical Specifications

• Blade Exposure: 0.377 inches (9.6 mm)
• Application: ABS, PVC, CPVC standard wall pipe; 4-inch heavy wall PVC
• Pack Quantity: 2 wheels per pack
• Compatible Cutters: REED TC3Q, TC4Q, TC5Q, TC6Q

Standard Information

• Brand: REED
• Manufacturer Part Number: 64194
