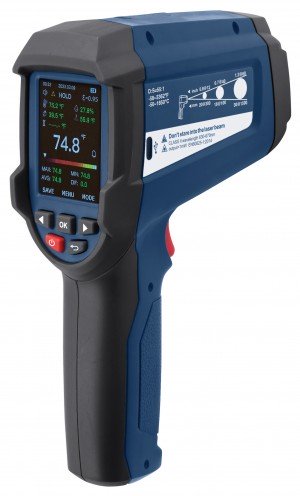

Reed 2340 Infrared Thermometer 55:1 Type K Thermocouple

Product Description

The REED 2340 is a professional-grade infrared thermometer with an integrated Type K thermocouple input, designed for trade use in HVAC, refrigeration, electrical, and industrial service applications. Non-contact IR temperature measurement spans -58 to 3362 degrees F (-50 to 1850 degrees C) with a 55:1 distance-to-spot (D:S) ratio, enabling precise surface readings from a safe working distance. The Type K thermocouple input extends contact measurement to 2498 degrees F (-50 to 1370 degrees C). Beyond temperature, the 2340 also captures relative humidity, dew point, and wet bulb temperature in a single instrument. A 2.4-inch TFT LCD displays readings at 320 x 240 pixel resolution. The unit is USB-C rechargeable with a 3.7V 2600mAh Li-ion battery rated for approximately 20 hours of runtime.

The REED 2340 suits licensed HVAC technicians, refrigeration mechanics, electricians, and industrial maintenance professionals who need accurate non-contact and contact temperature data across a wide measurement range. It is well suited for duct surface readings, motor and electrical panel inspections, boiler and combustion equipment surfaces, and any service call where both ambient psychrometric data and high-temperature IR measurement are required in the same handheld tool. The built-in trigger lock supports continuous monitoring during sustained diagnostics, and high/low audible alarms help flag out-of-range conditions without requiring the technician to watch the display continuously.

Key Features

• 55:1 distance-to-spot ratio for accurate readings from a safe distance on high-temperature or energized equipment
• Non-contact IR range of -58 to 3362 degrees F with 0.1 degree F resolution
• Type K thermocouple input for contact measurements up to 2498 degrees F
• Measures relative humidity (10 to 90% RH), dew point, wet bulb, and ambient temperature in one device
• Stores up to 999 data groups internally with PC connectivity for data export
• Adjustable emissivity (0.1 to 1.0) for accurate readings across varied surface types
• USB-C charging with approximately 20-hour battery life and auto shut-off adjustable from 1 to 30 minutes

Compatibility

Accepts standard Type K thermocouple probes for contact temperature measurement. Compatible with any Type K probe within the instrument operating range. PC connectivity allows data transfer to computers for logging and reporting.

Installation Notes

The REED 2340 is a handheld diagnostic instrument and does not require installation. HVAC and electrical technicians should de-energize or isolate equipment per applicable codes before using contact thermocouple probes on live components. For non-contact IR readings, verify emissivity is set appropriately for the target surface material before recording measurements. Charge fully via USB-C before field use; battery status is indicated on the display.

Technical Specifications

• IR Temperature Range: -58 to 3362 degrees F (-50 to 1850 degrees C)
• IR Accuracy (32 to 3362 degrees F): plus or minus 2 degrees F or plus or minus 0.01 x t degrees F, whichever is greater
• IR Resolution: 0.1 degrees F (0.1 degrees C)
• Contact Temperature Range (Type K): -58 to 2498 degrees F (-50 to 1370 degrees C)
• Optical Resolution (D:S): 55:1
• Spectral Response: 8 to 14 micrometers
• Emissivity: 0.1 to 1.0 adjustable
• Response Time: 250ms
• Relative Humidity Range: 10 to 90% RH
• Relative Humidity Accuracy: plus or minus 5% RH
• Ambient Temperature Range: 14 to 122 degrees F (-10 to 50 degrees C)
• Display: 2.4-inch TFT LCD, 320 x 240 pixels
• Data Storage: Up to 999 groups
• Laser Type: Class II
• Power Supply: 3.7V 2600mAh rechargeable Li-ion battery
• Battery Life: Approximately 20 hours
• Charging: USB-C, approximately 3 hours charge time
• Operating Temperature: 14 to 122 degrees F (-10 to 50 degrees C)
• Operating Humidity: 10 to 90%
• Maximum Operating Altitude: 6561 feet (2000m)
• Dimensions: 8.07 x 4.88 x 2.56 inches
• Weight: 0.82 pounds
• Certifications: CE, RoHS, UKCA

Standard Information

• Brand: REED
• Manufacturer Part Number: 2340
