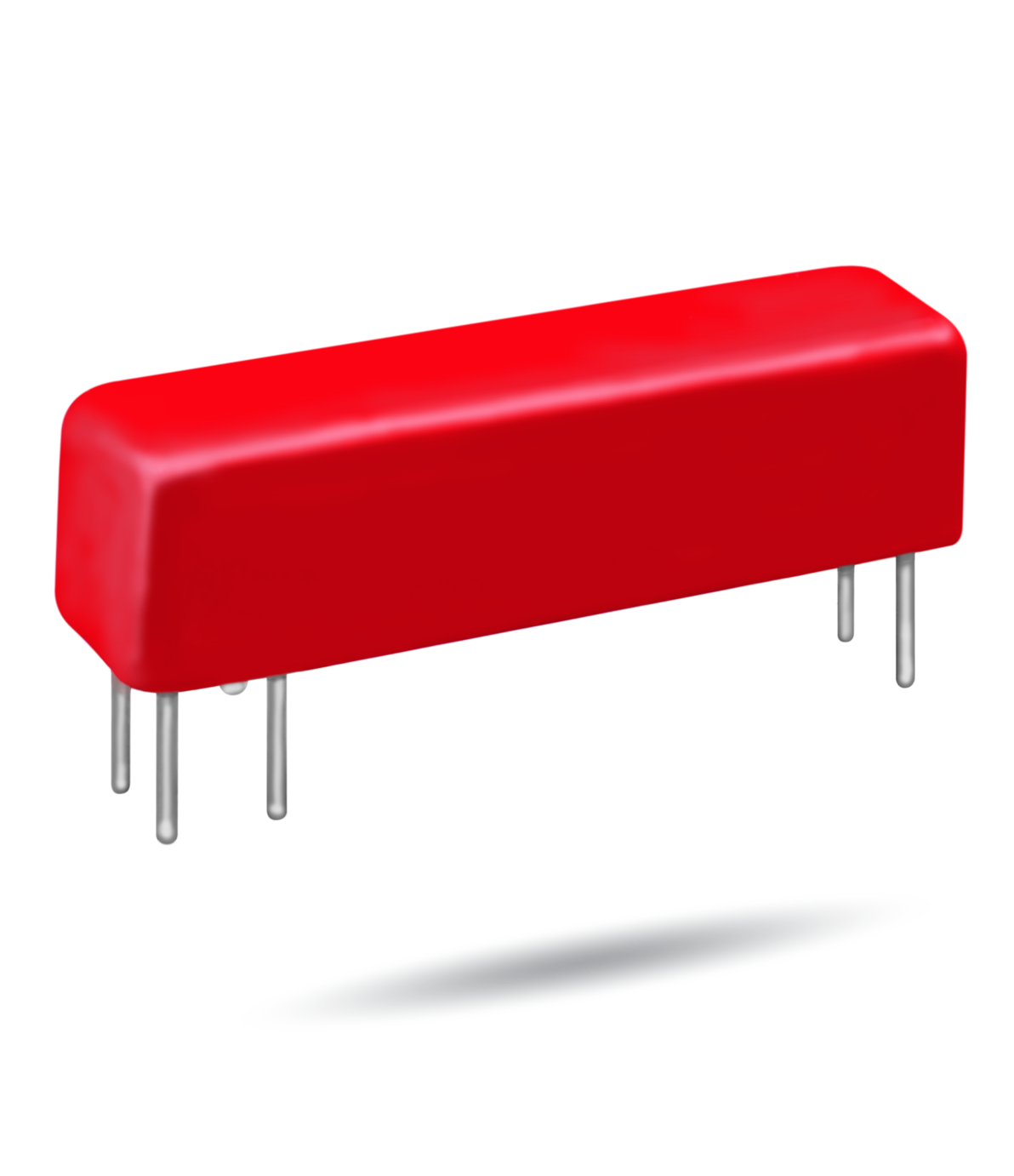

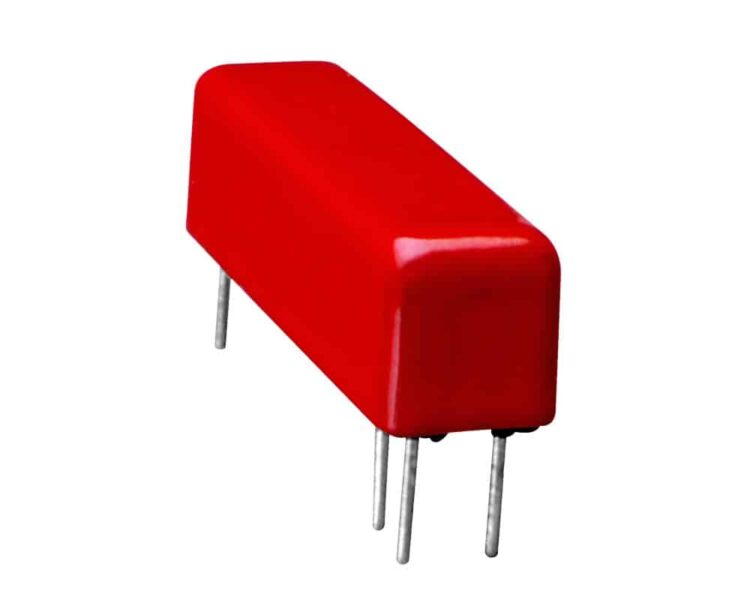

REED 02302 High-Reliability Reed Relay

Product Description

The REED 02302 is a high-reliability reed relay designed for automated test equipment and RF applications. This product features a 1A contact form and operates at a switching voltage of 150V and a switching current of 0.5A. It boasts a contact rating of 10W. The hermetically sealed contacts add to the relay's operational lifespan.

• High insulation resistance up to 100 MΩ, ideal for sensitive measurements.
• High-speed switching capability for RF and automated testing.
• Epoxy-coated steel shell offers magnetic shielding for improved signal integrity.

Product Highlights

The REED 02302 is made to support fast digital pulse switching and operates efficiently within a temperature range of negative twenty degrees Celsius to positive eighty-five degrees Celsius. It is RoHS compliant and comes in a compact PICO package that covers an area of 0.17 square inches.

Product Information

Standard Information

• Brand: REED
• MPN: 02302

Technical Specifications

• Coil Voltage: 5V
• Contact Form: 1A
• Contact Rating: 10W
• Dielectric Strength: 250V DC
• Switching Voltage: 150V
• Switching Current: 0.5A
• Temperature Range: -20°C to +85°C
• Dimensions: 6.23 x 5.33 x 20.57 mm
