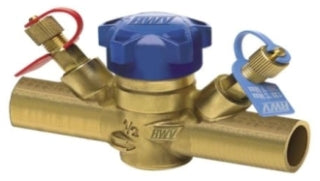

RED-WHITE VALVE CORP 9527AB3/4 AB BALANCING VALVE - MINI FNPT

Product Description

This AB Balancing Valve by RED-WHITE VALVE CORP, with MPN 9527AB3/4, is designed for hydronic systems and applications. It features a nominal size of three-fourths of an inch and NPT connections, ideal for controlling water flow. This valve supports a maximum pressure of 300 lb WOG and operates effectively across a temperature range of fifteen to two hundred sixty degrees Fahrenheit.

• Variable orifice design for adjustable flow control.
• On/off capability for easy operation.
• Integral memory stop ensures reliability in performance.

Product Highlights

Designed for easy installation with a ready-to-mount on/off wax actuator, this balancing valve simplifies water management in heating systems.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779703206

Technical Specifications

• Body Material: Brass
• Dimensions: 3-1/2 in L
• End Style: NPT
• Flow Rate: 2.19 gpm
• Media: Water
• Nominal Size: 3/4 in
• Pressure Class: 300 lb WOG
• Temperature Rating: 15 to 260 deg F
• Softgoods Material: EPDM Perox Disc Gasket/Stem O-Ring
• Trim Material: Stainless Steel
• Series: 9527AB
