RED-WHITE VALVE CORP 9517AB2 AB DZR BRASS BALANCING VLV THD 2 in

Product Description

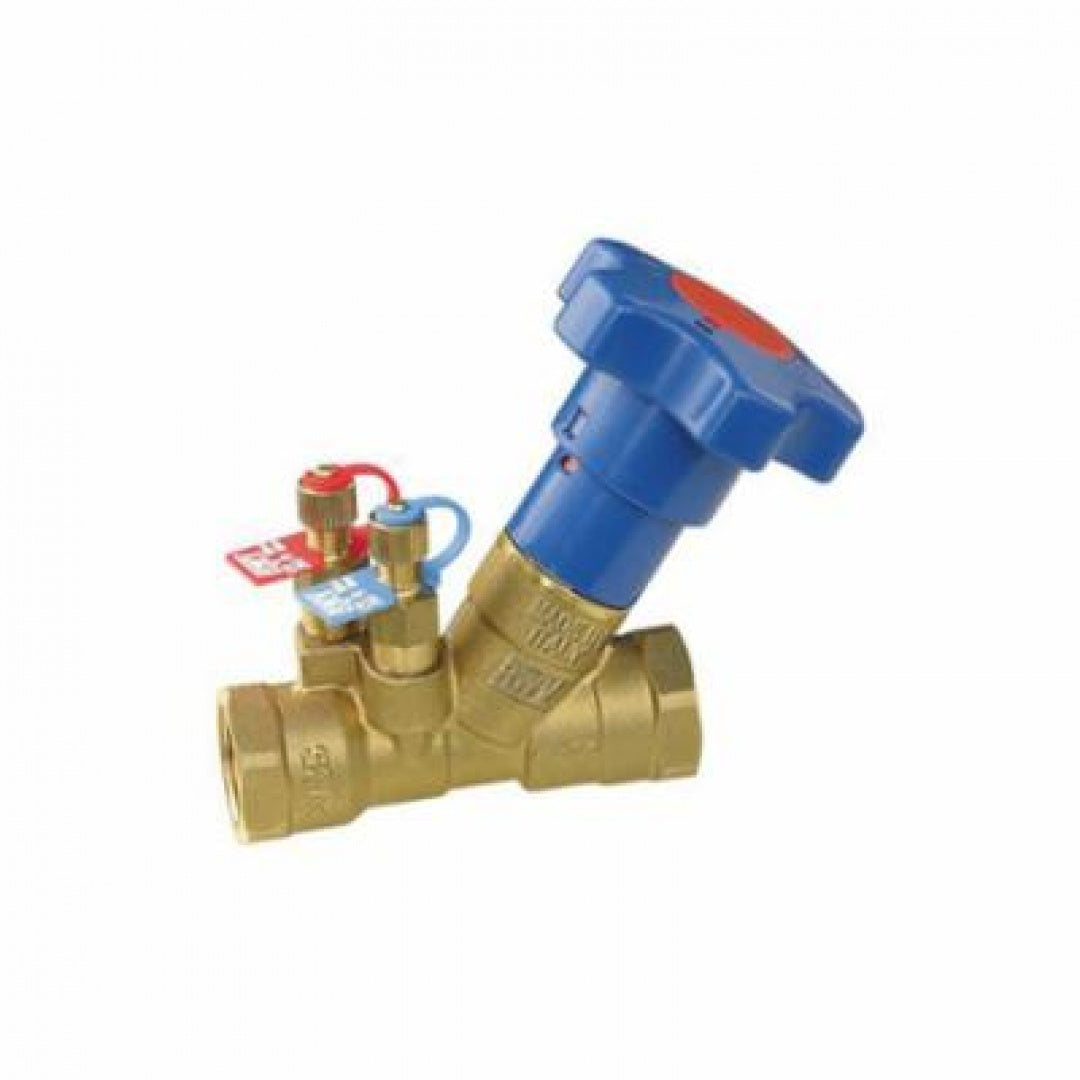

RED-WHITE VALVE CORP offers the 9517AB2 AB DZR Brass Balancing Valve designed for reliable performance in hydronic systems. This valve features a two-inch nominal size, suitable for both HVAC and domestic water applications. The adjustable handwheel actuator allows for precise flow regulation.

• Fixed orifice design for optimized water flow
• Integral memory stop ensures consistent setting
• Constructed from low lead DZR brass for compliance

Product Highlights

The valve operates smoothly from fifteen to two hundred sixty degrees Fahrenheit and can handle a pressure class of three hundred pounds WOG. It is compatible with water media and has a flow rate of twenty-four point zero nine gallons per minute.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• MPN: 9517AB2

Technical Specifications

• Actuator Type: Adjustable Handwheel
• Body Material: DZR Brass
• Dimensions: 5.72 inches Long
• Domestic/Import: Import
• End Style: NPT
• Flow Rate: 24.09 gpm
• Media: Water
• Nominal Size: 2 inches
• Pressure Class: 300 lb WOG
• Series: 9517AB
• Softgoods Material: PTFE Disc Gasket/EPDM Perox Disc O-Ring
• Temperature Rating: 15 to 260 degrees F
• Trim Material: DZR Brass
