RED-WHITE VALVE CORP 938BESLAB-8 AB BUTTERFLY LUG BRNZ DISC LVR

Product Description

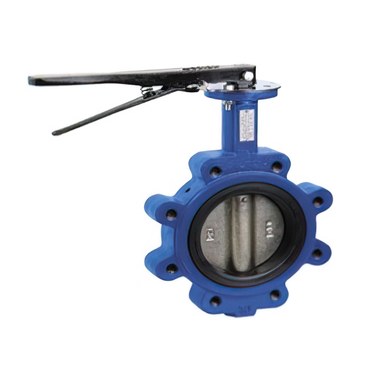

The RED-WHITE VALVE CORP 938BESLAB-8 is an eight-inch butterfly valve designed for water applications, featuring a lug style and lever handle actuator. This valve operates effectively in temperature ranges from negative thirty to two hundred seventy-five degrees Fahrenheit. It has a ductile iron body and an aluminum bronze disc, providing reliable durability across various conditions.

• Temperature range: -30 to 275 degrees Fahrenheit
• Compatible with water media
• Lever handle actuator

Product Highlights

This valve is suitable for both bidirectional and dead-end services, making it versatile for commercial and industrial use.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779714141

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Inlet to Outlet Length: 2.36 inches
• Media: Water
• Nominal Size: 8 inches
• Series: 938
• Softgoods Material: NBR
• Stem & Pin Material: 416 Stainless Steel (Stem), Stainless Steel (Taper Pin)
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Type: Lug Style
