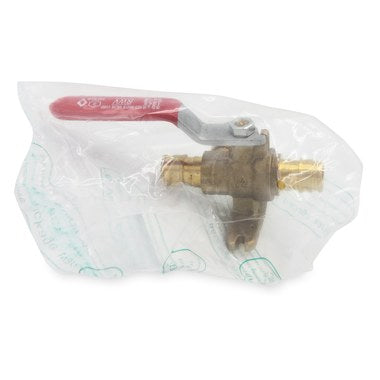

RED-WHITE VALVE CORP 5015ABDF-1/2 AB PEX F1960 BALL W/DRAIN&FOOT

Product Description

The RED-WHITE VALVE CORP 5015ABDF-1/2 is a lead-free ball valve designed for use with PEX tubing. This valve meets the F1960 standards for PEX expansion fittings and offers reliable performance in various plumbing applications.

• Blow-out proof stem for enhanced durability.
• Meets F1960 certifications for PEX expansion pipe fittings.
• Double NBR O-ring packing for secure sealing.

Product Highlights

The valve features a chrome-plated low lead brass ball and has a pressure rating of 400 lb WOG. It is capable of operating within a temperature range of 15 to 160 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Series: 5015ABDF

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Brass
• End Style: Barb
• Inlet to Outlet Length: 2.48 in
• Nominal Size: 1/2 in
• Orifice Size: 0.39 in
• Port Type: Regular
• Pressure Rating: 400 lb WOG
• Softgoods Material: Double NBR
• Temperature Rating: 15 to 160 deg F
• Top to Inlet Center: 1.38 in
• Trim Material: Low Lead Brass Stem and PTFE Seat
