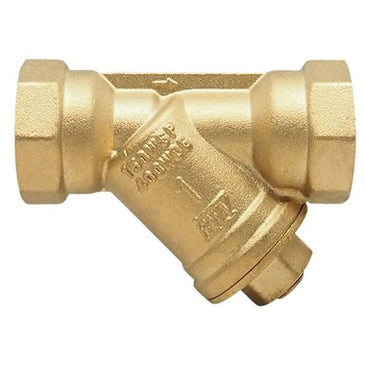

RED-WHITE VALVE CORP 380AB-12 AB Brass Y Strainer IPS

Product Description

The RED-WHITE VALVE CORP 380AB-12 is a reliable AB brass Y strainer designed for IPS applications. This strainer is built with a brass body and has a nominal size of half an inch. It measures two point seventy-six inches in overall length and two point thirteen inches in height. The unit comes with a one-fourth inch NPT blow-off to facilitate easy cleaning and maintenance.

• Rated for one hundred twenty-five pounds WSP and two hundred pounds WOG.
• Threaded cap and clean-out plug are included for ease of use.
• AB1953 and NSF-61/372 certified.

Product Highlights

This strainer is essential for protecting piping systems from debris and unwanted particles.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• UPC: 670779709147

Technical Specifications

• Blow-Off Size: 1/4 in NPT
• Body Material: Brass
• Connection Type: Thread
• Nominal Size: 1/2 in
• Overall Height: 2.13 in
• Overall Length: 2.76 in
• Series: 380AB
