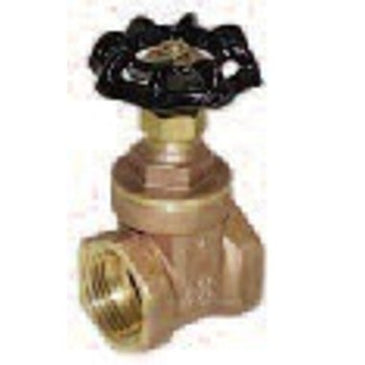

RED-WHITE VALVE CORP 267-1 BRASS GATE VALVE IPS

Product Description

The RED-WHITE VALVE CORP Brass Gate Valve IPS with MPN 267-1 is designed for reliable flow control in various plumbing applications. This standard gate valve has a nominal size of one inch and is suitable for both residential and commercial systems.

• Thread end style for easy installation
• Handwheel actuator for manual operation
• 200 lb WOG pressure rating for robust performance

Product Highlights

The valve features a non-rising stem with a solid wedge disc, which ensures durability and efficiency. The cast brass body and brass trim provide excellent corrosion resistance.

Product Information

Standard Information

• Manufacturer: RED-WHITE VALVE CORP
• Standard Pack: Order quantity must be in multiples of fifty

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: Thread
• Hand Wheel Diameter: 0.9 inches
• Inlet to Outlet Length: 2.02 inches
• Nominal Size: 1 inch
• Pressure Rating: 200 lb WOG
• Series: 267
• Softgoods Material: PTFE Gasket, Packing
• Temperature Rating: 212 degrees F
• Top to Inlet Center: 3.62 inches
• Trim Material: Brass
• Type: Standard
