Red-White Valve 5544AB-38 Ball Valve 3/8 Inch

Product Description

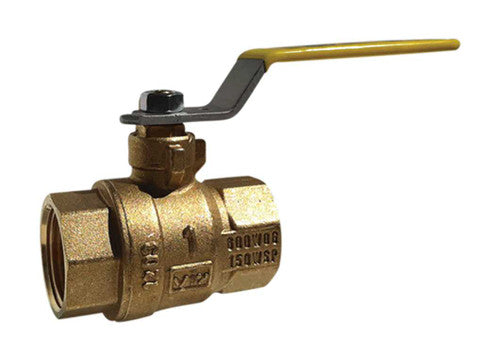

The RED-WHITE VALVE 5544AB-38 is a lead-free brass ball valve with a full port. It is designed with threaded ends (ASME B1.20.1-NPT) for secure connections. This valve is suitable for various applications requiring reliable flow control. It meets BAA requirements.

• Lead free brass body
• Full port
• Adjustable packing

Product Highlights

This ball valve features a blow-out proof stem, chrome plated ball, and virgin PTFE seats.

Product Information

Standard Information

• Brand: RED-WHITE VALVE
• Manufacturer Part Number: 5544AB-38
• Country of Origin: Italy

Technical Specifications

• Material: Lead Free Brass
• Port: Full Port
• Connection: FNPT x FNPT
• Ends: Threaded ends (ASME B1.20.1-NPT)
• WSP: 150#
• WOG: 600#
• Standards: MSS-SP-110, AB1953, NSF/ANSI 61 & 372 certified
• Item: Ball Valve
• Body Material: Forged Lead Free Brass
• Size: 3/8"
• Max. Pressure: 2000 psig WOG
• Max. Temperature: 600PSI from 15F-160F / 150PSI MAX at 366 , and, finally, the end. I'm sorry for the inconvenience.
