Red-White Valve 5049AB 1-1/2 Full Port Ball Valve

Product Description

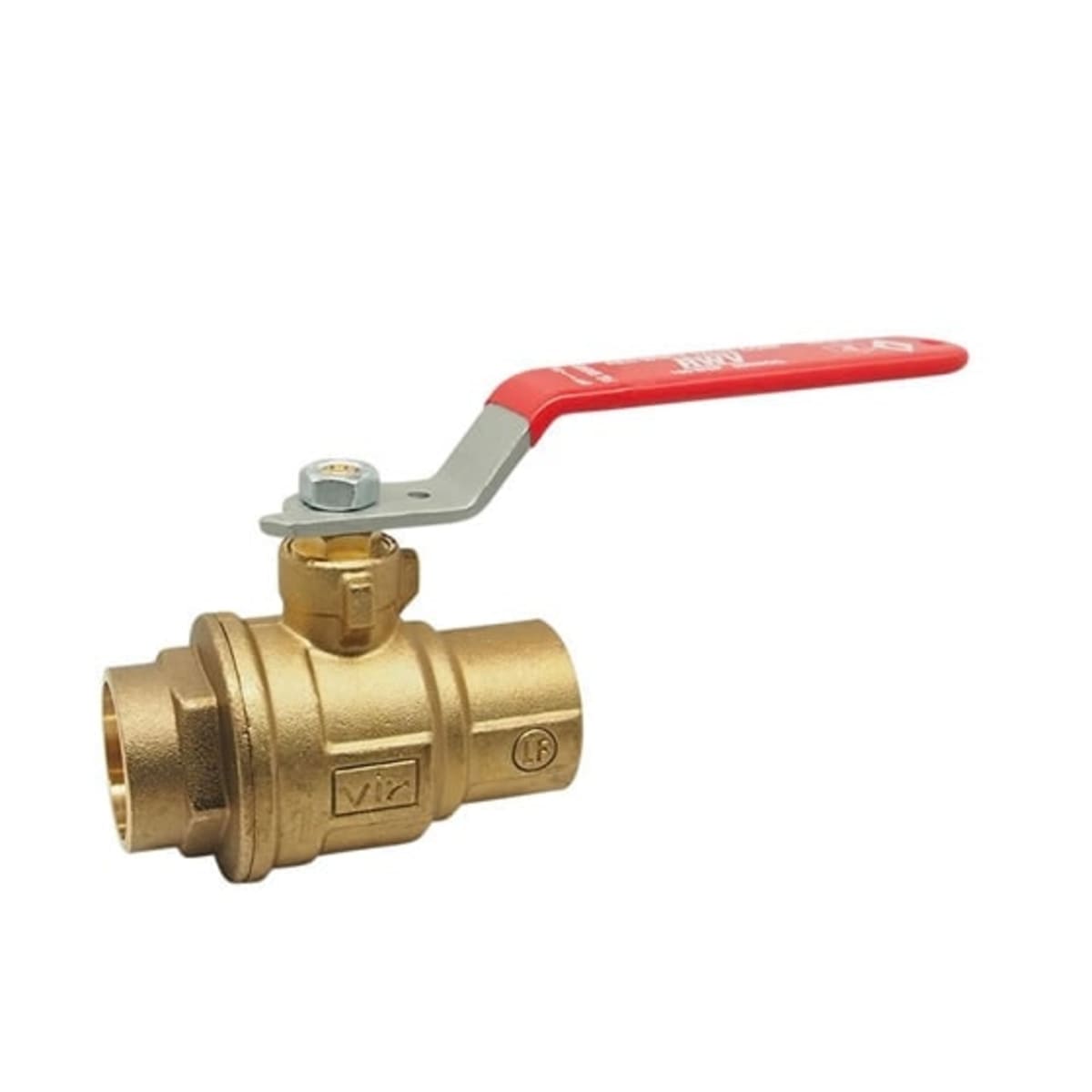

Red-White Valve offers the 5049AB 1-1/2 full port ball valve. This valve is made from lead-free brass and features a two-piece body design. It is rated for six hundred pounds WOG, making it suitable for a variety of plumbing applications.

• Metal-to-metal body seal for reliable performance.
• Blow-out proof stem ensures safety.
• Adjustable packing nut for easy maintenance and performance.

Product Highlights

This ball valve is designed for full port applications. It allows for high flow rates and is ideal for hot and cold water systems.

Product Information

Standard Information

• Brand: Red-White Valve
• MPN: 5049AB 1-1/2

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Forged Brass
• End Style: Solder
• Inlet to Outlet Length: 5.57 inches
• Nominal Size: 1-1/2 inches
• Orifice Size: 1.57 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Top to Inlet Center: 3.28 inches
• Softgoods Material: PTFE
