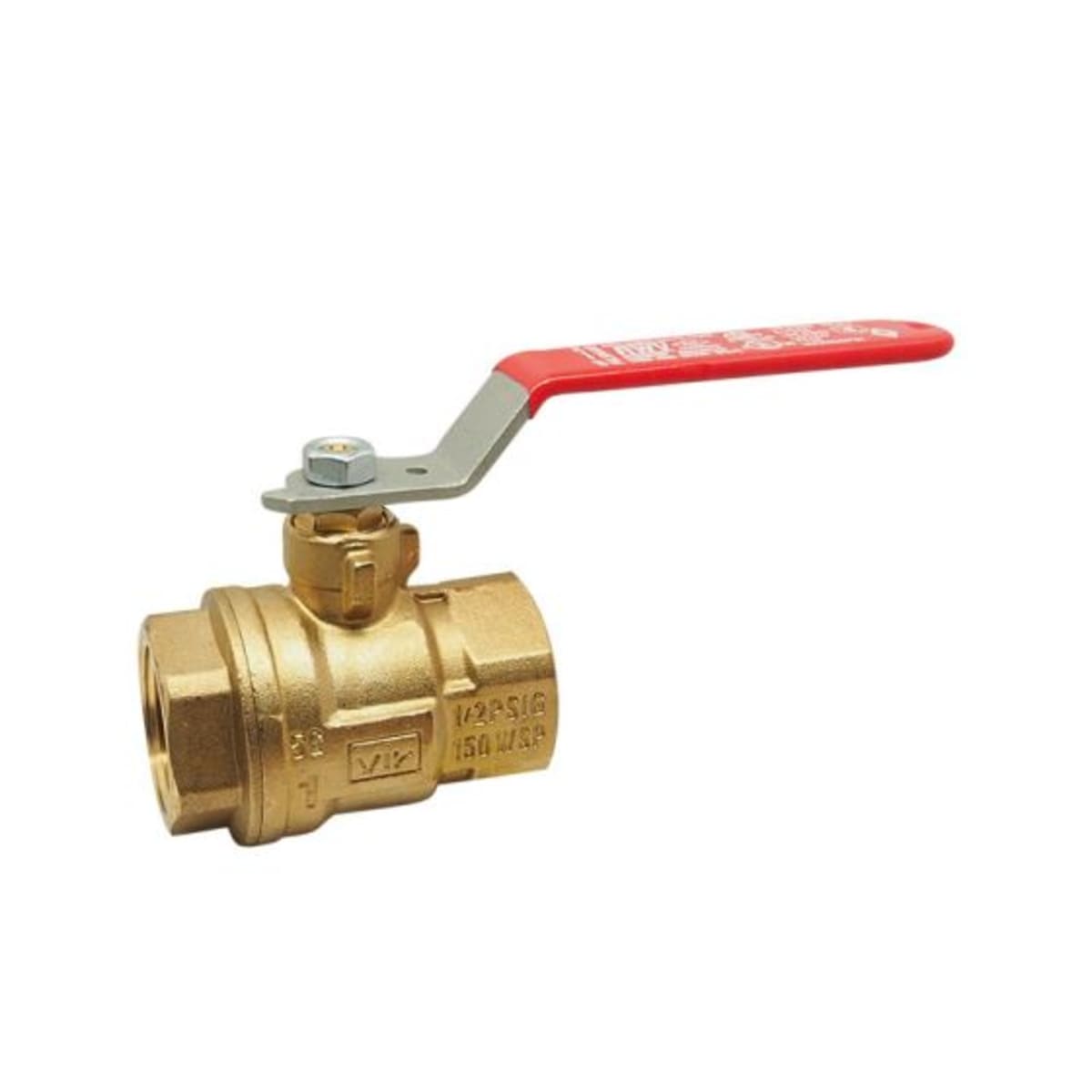

Red-White Valve 5044AB 3/8 Low Lead Brass Full Port Ball Valve IPS

Product Description

The Red-White Valve 5044AB 3/8 is a lead-free, full port ball valve designed for practical use in various plumbing applications. It features a two-piece body design with a nominal size of three-eighths of an inch. This valve is certified for 600 lb WOG and 150 lb WSP pressure ratings and is suitable for temperatures ranging from 15 to 160 degrees Fahrenheit.

• Lead-free brass construction
• Blow-out proof stem design
• Meets multiple industry standards

Product Highlights

The valve utilizes a chrome-plated low lead brass ball and a forged brass body, ensuring durability and reliability.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• MPN: 5044AB 3/8

Technical Specifications

• Ball Material: Chrome Plated Low Lead Brass
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 1.73 inches
• Nominal Size: 3/8 inches
• Orifice Size: 0.39 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG / 150 lb WSP
• Temperature Rating: 15 to 160 degrees Fahrenheit
• Softgoods Material: PTFE
• Trim Material: Low Lead Brass Stem and PTFE Seat
• Series: 5044AB
• Type: 2-Piece
