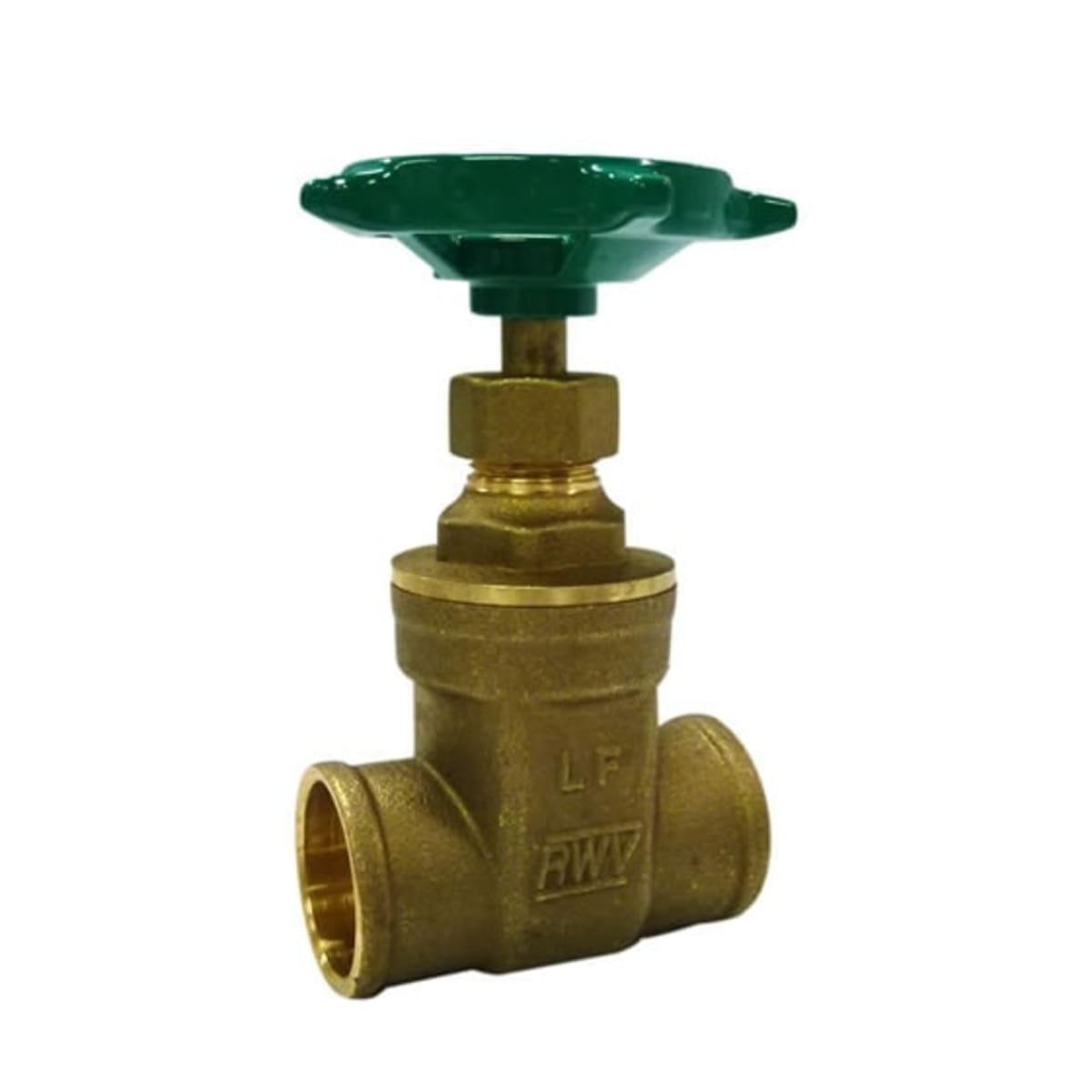

Red-White Valve 268AB 2 Low Lead Brass Gate Valve CXC

Product Description

The Red-White Valve 268AB2 is a low lead brass gate valve designed for various plumbing applications. It features a solder end style for easy installation and ensures dependable flow control in your piping system. The valve is rated for 200 lb WOG pressure and can handle temperatures up to 212 degrees Fahrenheit.

• Non-rising stem design
• Screw-in bonnet for secure assembly
• Solid wedge disc for reliable sealing

Product Highlights

This valve is particularly suited for residential and commercial plumbing where lead-free materials are required.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Part Number: 268AB2

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Solder
• Hand Wheel Diameter: 2.12 inches
• Inlet to Outlet Length: 3.62 inches
• Nominal Size: 2 inches
• Pressure Rating: 200 lb WOG
• Temperature Rating: 212 degrees Fahrenheit
• Trim Material: Brass
• Softgoods Material: PTFE Gasket, Packing
• Top to Inlet Center: 5.6 inches
