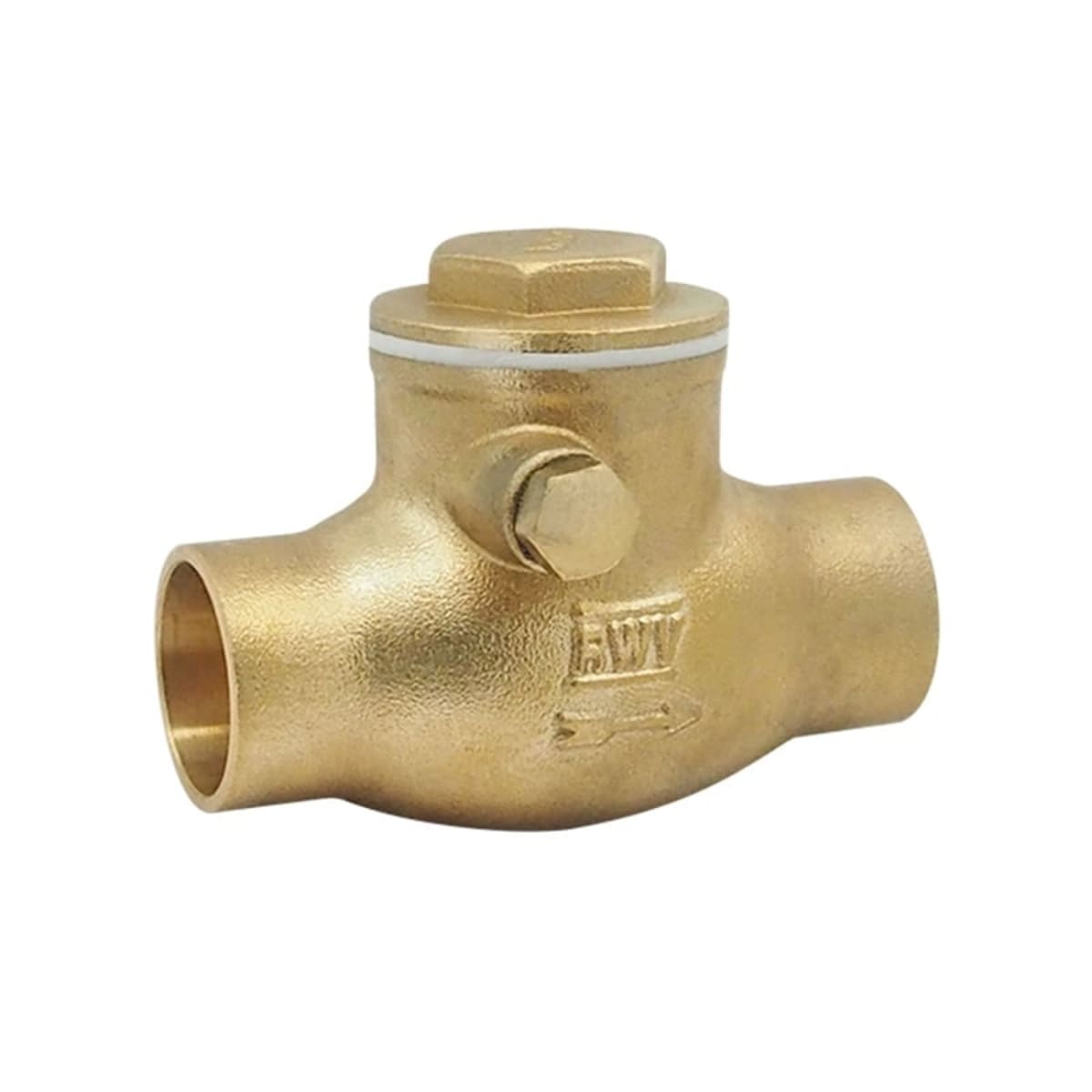

Red-White Valve 247AB 1 Low Lead Brass Swing Check

Product Description

The Red-White Valve 247AB1 is a low lead brass swing check valve. This valve is designed with a horizontal T-pattern and solder joint end style. The nominal size is one inch, suitable for various plumbing applications.

• Forged brass construction for durability
• Operates at a maximum pressure class of 200 pounds WOG
• Meets standards such as AB1953 and ANSI/NSF 61-G

Product Highlights

This swing check valve prevents backflow in plumbing systems and is ideal for maintaining flow direction. It is essential in installations where backflow prevention is critical.

Product Information

Standard Information

• Body Material: Forged Brass
• End Style: Solder Joint

Technical Specifications

• Inlet to Outlet Length: 3.4 inches
• Low Lead Compliance: No
• Nominal Size: 1 in
• Pressure Class: 200 lb WOG
• Series: 247AB
• Temperature Rating: 450 degrees F
• Top to Inlet Center: 1.74 inches
• Trim Material: Brass
• Type: Horizontal T-Pattern
• Manufacturer: Red-White Valve Corp
