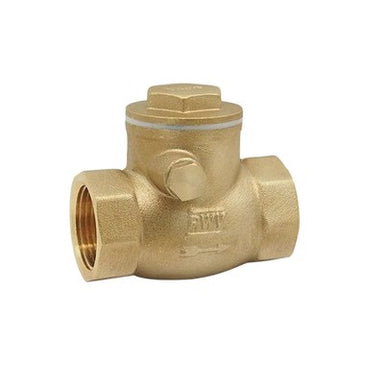

Red-White Valve 246AB-4 Low Lead Brass Swing Check

Product Description

The Red-White Valve 246AB-4 is a low lead brass swing check valve designed for efficient backflow prevention in piping systems. It features a horizontal T-pattern and is built to meet industry standards for safety and performance. This valve can handle a pressure class of 200 lbs WOG and is suitable for high-temperature applications up to four hundred fifty degrees Fahrenheit.

• Constructed from durable forged brass for longevity.
• Virgin PTFE soft goods ensure a reliable seal.
• Nominal size of four inches with a threaded end style.

Product Highlights

This valve is appropriate for use in various applications where backflow prevention is critical. Its robust construction allows it to perform reliably in demanding environments.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Type: Swing Check

Technical Specifications

• Body Material: Forged Brass
• End Style: Thread
• Inlet to Outlet Length: Seven inches
• Low Lead Compliance: No
• Nominal Size: Four inches
• Pressure Class: 200 lb WOG
• Series: 246AB
• Softgoods Material: Virgin PTFE
• Temperature Rating: Four hundred fifty degrees Fahrenheit
• Top to Inlet Center: Four point eighteen inches
• Trim Material: Brass
• Type: Horizontal T-Pattern
