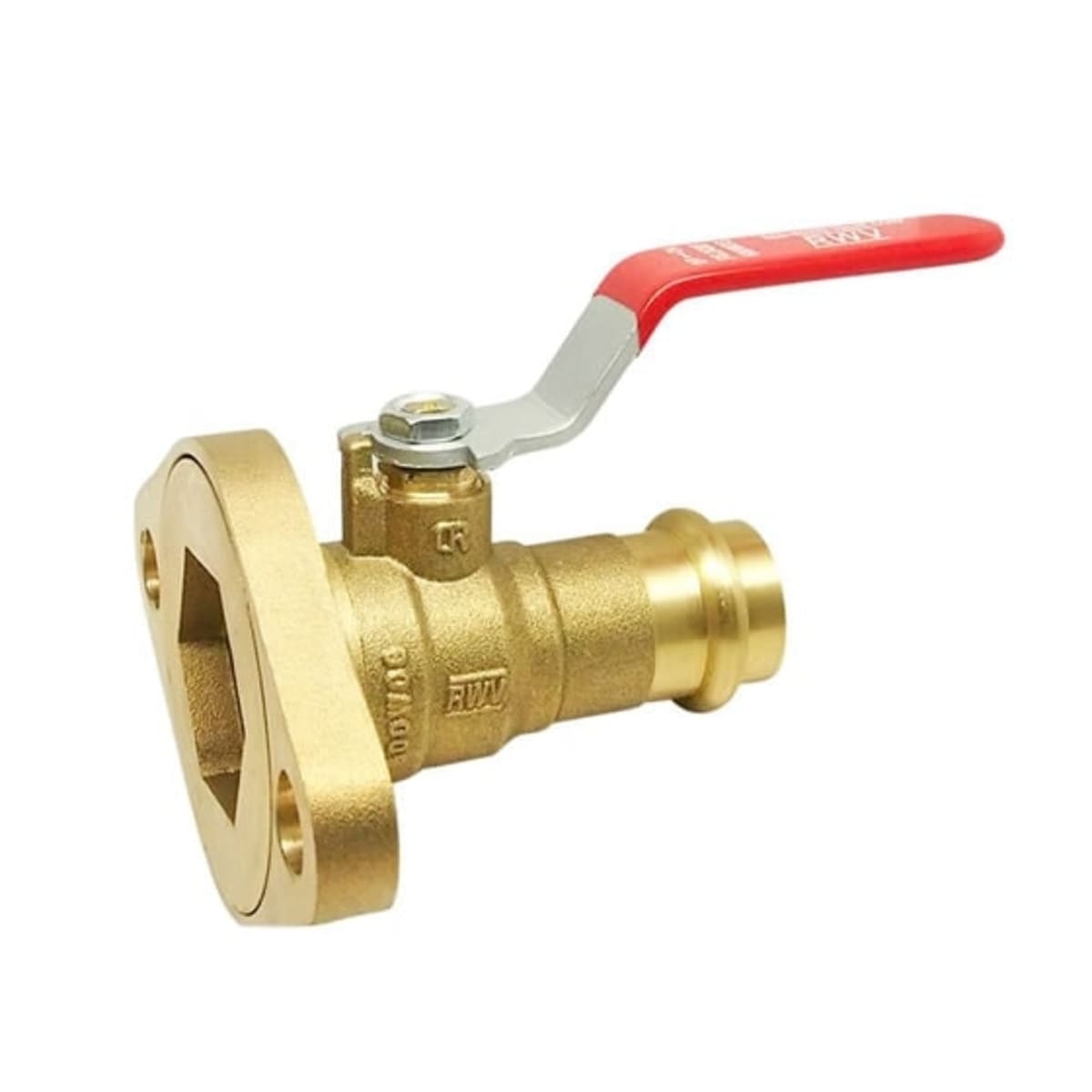

Red-White Valve 2420F 1 Pump Flange Ball VLV EzPress

Product Description

The Red-White Valve 2420F 1 is a reliable pump flange ball valve ideal for fluid control in various systems. This quarter-turn valve features a three-piece design with EzPress connections and a rotating pump flange. It is rated for six hundred pounds of working pressure and is suitable for applications where robust performance is needed.

• Quarter-turn operation for easy use
• Full port design for maximum flow
• Constructed from durable chrome plated brass

Product Highlights

This valve is equipped with a wing handle actuator for straightforward operation and features PTFE packing and rubber O-ring materials to enhance sealing and longevity.

Product Information

Standard Information

• Manufacturer: Red-White Valve Corp
• Type: 3-Piece

Technical Specifications

• Actuator Type: Wing Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: EzPress x Rotating Pump Flange
• Inlet to Outlet Length: 3.65 inches
• Nominal Size: 1 inch
• Orifice Size: 0.94 inches
• Port Type: Full
• Pressure Rating: 600 lb WOG
• Series: 2420F
• Softgoods Material: PTFE/FKM/EPDM
• Top to Inlet Center: 2.36 inches
• Trim Material: Brass Stem and PTFE Seat
