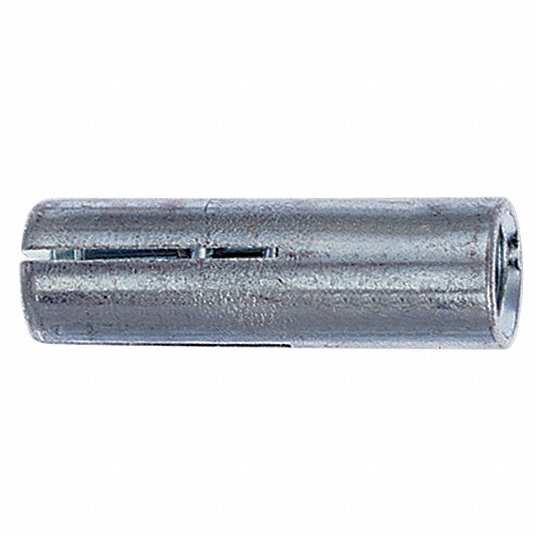

Red Head RL-58 5/8 Drop-In Anchor

Product Description

The Red Head RL-58 is a drop-in anchor designed for concrete applications. The anchor features an all-steel internally threaded shell, ensuring reliable performance. It is designed for easy installation with carbide tipped hammer drill bits that comply with ANSI B212.15-1994. The anchor meets rigorous industry standards and is tested under ASTM E488. Furthermore, it holds listings from various agencies recognized by local building codes.

• Suitable for various concrete anchor applications.
• Compatible with 5/8 inch anchor diameter.
• Zinc plated for improved corrosion resistance.

Product Highlights

The Red Head RL-58 offers secure fastening for construction and repair tasks. Its design allows for convenient below-surface installation.

Product Information

Standard Information

• Manufacturer: Red Head
• Minimum Order Quantity: 1

Technical Specifications

• Sub Brand: Multi-Set II
• Item Name: Drop-In Anchor Without Lip
• Type: Type RL, Non-Flange
• Diameter: 5/8 inches
• Thread Size: 5/8-11
• Thread Type: UNC
• Length: 2-1/2 inches
• Material: Steel
• Industry Standards: Tested to ASTM E488, UL Listed, ICC-ES Listed
• Finish/Color: Zinc Plated
• Other Physical Dimensions: 1 inch Thread Depth, 2-1/2 inches Minimum Embedment Hole Depth, 7/8 inch Drill Bit Diameter
