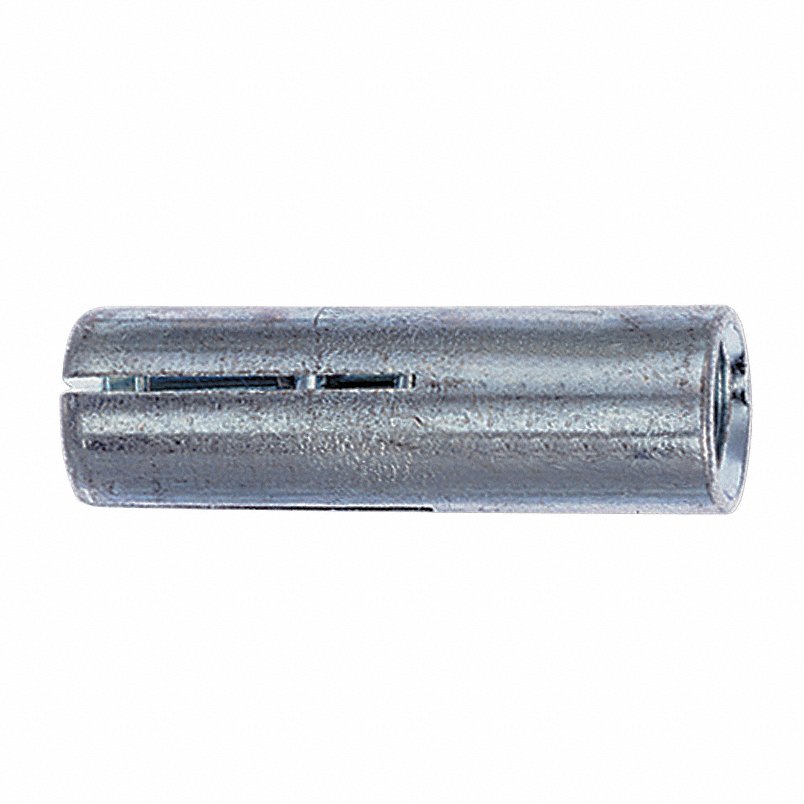

Red Head RL-14 1/4 DROP-IN ANCHOR

Product Description

The Red Head RL-14 is a drop-in anchor designed for concrete applications. This anchor features a shell-type construction, made entirely of steel, that includes an expansion cone insert for reliable fastening in concrete. It is essential to use carbide-tipped hammer drill bits for installation, complying with ANSI B212.15-1994 standards. The RL-14 meets ASTM E488 testing criteria and is recognized by ICC-ES and other relevant building code agencies. The drop-in anchor offers a below-surface setting, allowing for smooth patch work post-installation.

• Designed for use in concrete
• Tested to meet multiple industry standards
• Allows for easy surface repairs

Product Highlights

This anchor is versatile and can be utilized in various construction projects where a sturdy fastening solution is required in concrete.

Product Information

Standard Information

• Brand: Red Head
• MPN: RL-14

Technical Specifications

• Diameter: 1/4 IN
• Thread Size: 1/4-20
• Thread Type: UNC
• Length: 1 IN
• Material: Steel
• Finish/Color: Zinc Plated
• Industry Standards: Tested To ASTM E488
• Other Physical Dimensions: 3/8 IN Thread Depth, 1 IN Minimum Embedment Hole Depth, 3/8 IN Drill Bit Diameter
