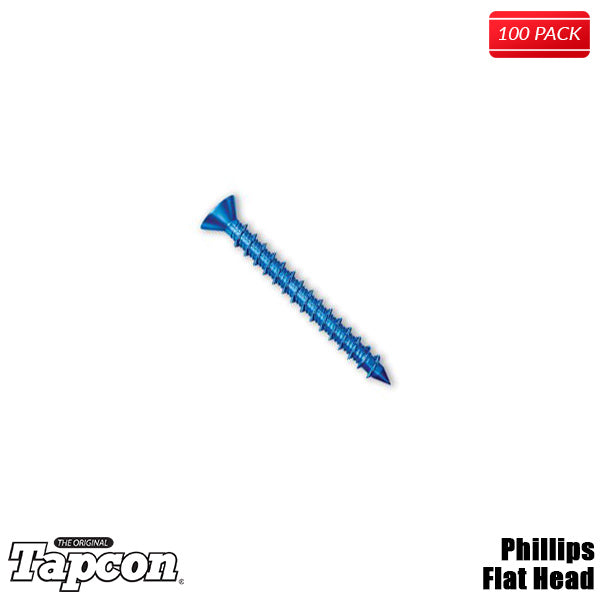

Red Head PF4-234 1/4 X 2-3/4 Tapcon Anchor Phillips Flat Head

Product Description

The Red Head PF4-234 is a masonry anchor designed to create its own threads in concrete, brick, or block. This anchor is part of a system that includes the condrive installation tool and carbide-tipped drill bits, ensuring optimal performance. For best results, it is necessary to use the condrive tool and the appropriate drill bit to achieve reliable and consistent anchor performance.

This Tapcon Nail Anchor measures one-fourth inch in diameter and two and three-fourths inches in length. It is made from carbon steel and meets various industry standards such as ICC Evaluation Service. The anchor is coated with Blue Climaseal for enhanced corrosion resistance and features a Phillips flat head. The other dimensions include fixture thickness ranging from one and one-quarter to one and three-fourths inches and a bit length of four and one-half inches.

• Builds its own threads in masonry materials
• Fast installation capability with up to three anchors per minute
• No need for hole spotting or additional inserts

Product Highlights

Reliable anchor system for various masonry applications.

Product Information

Standard Information

• Brand: Red Head
• Sub Brand: Tapcon

Technical Specifications

• Diameter: 1/4 IN
• Length: 2-3/4 IN
• Material: Carbon Steel
• Industry Standards: ICC Evaluation Service, Inc - #ESR-1671, ICC Evaluation Service, Inc - #ESR-2202, Miami-Dade County - #11-0616.05, Florida Building Code FL #7556.1
• Finish/Color: Blue Climaseal
• Head Type: Phillips Flat
• Fixture Thickness: 1-1/4 - 1-3/4 IN
• Bit Length: 4-1/2 IN
