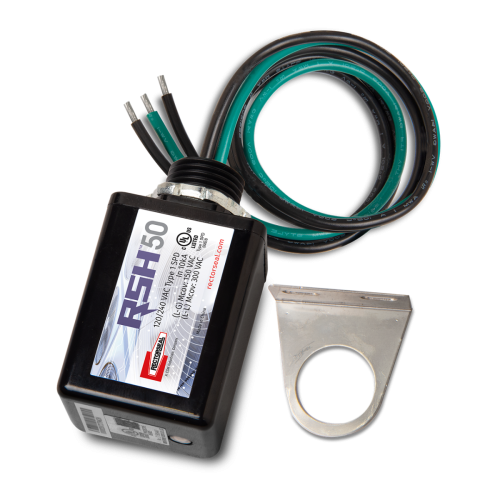

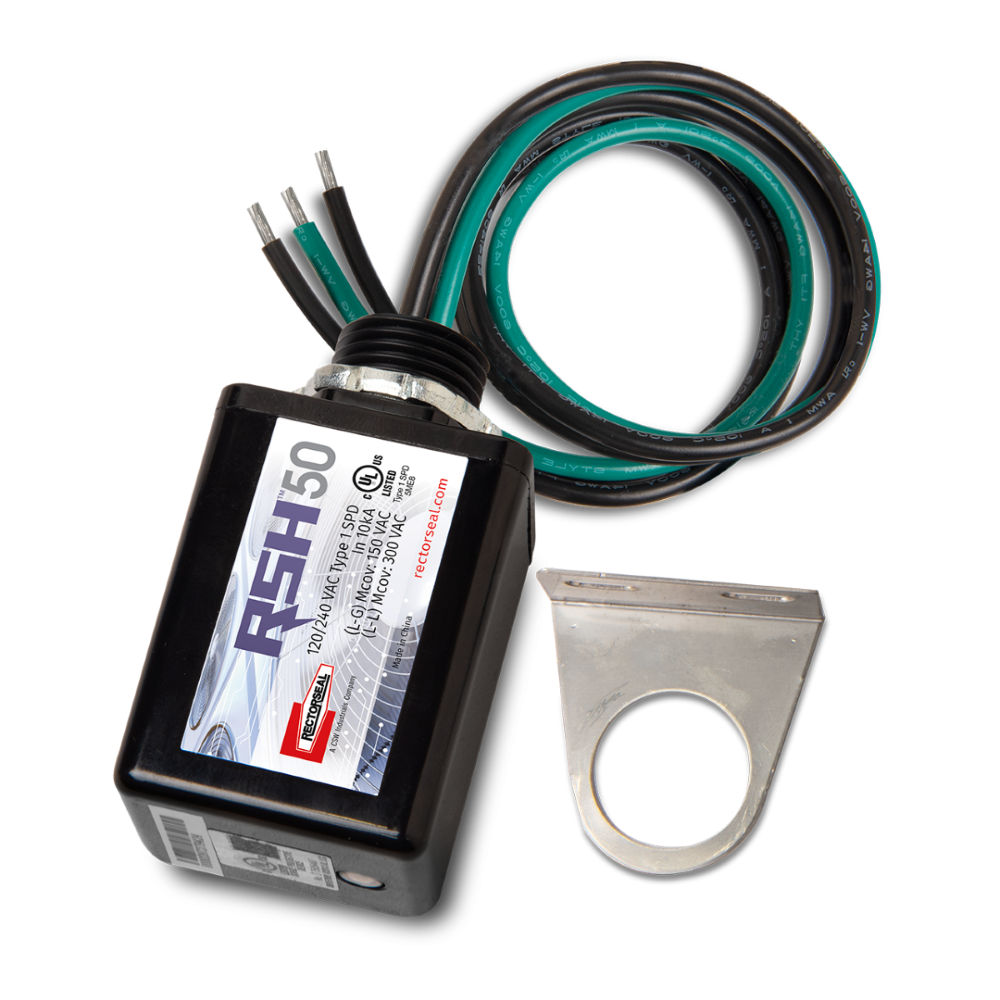

RectorSeal RECT-96415 RSH-50 Surge Protective Device

Product Description

The RectorSeal RSH-50 Surge Protective Device (SPD) is meant to protect HVAC equipment from transient over-voltage and surges caused by natural events. It is tailored for single-phase systems that operate at one hundred twenty or two hundred forty VAC. With advanced gas discharge tube technology and TFMOV technology, this SPD safeguards air conditioning units, heat pumps, and ductless mini-split systems in both residential and commercial settings. Its design meets weather rating standards under NEMA 4X and can withstand surges of up to fifty thousand amps.

• Protects HVAC equipment from transient over-voltage.
• Compatible with single-phase, one hundred twenty/two hundred forty VAC systems.
• Includes an LED indicator to display protection status.

Product Highlights

It is easy to wire and install, making it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: RectorSeal
• Type: Surge Protective Device

Technical Specifications

• Recommended Use: For residential or commercial use.
• Surge Protection: Up to fifty thousand amps for single surges, ten thousand amps for repetitive surges.
• Application: Protects single-phase, one hundred twenty/two hundred forty-V air conditioning units, heat pumps, and ductless mini-split systems from surges.
• Case Height: one point eight inches
• Case Length: eleven point four inches
• Case Width: five point eight inches
• MPN: 96415
• UPC: 021449964159
• Model: RSH-50
