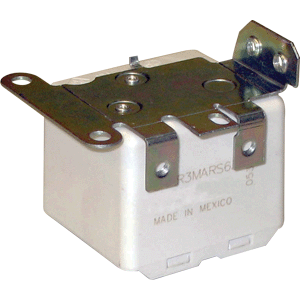

Rectorseal M19006 Mars 67 Potential Relay

Product Description

The RECTORSEAL M19006 Mars 67 Potential Relay is a start type relay designed for electrical control applications. It features a Pick-Up Voltage range of 295 - 315 and a Drop-Out Voltage of 125, operating at a Frequency of 60 Hz. This relay is suitable for motor starting circuits, handling Inductive Amps up to 35 and Resistive Amps up to 35, ensuring reliable operation in HVAC and other electrical systems.

• Start type potential relay for motor control applications.
• Features a Pick-Up Voltage of 295 - 315 and a Drop-Out Voltage of 125.
• Handles up to 35 Inductive and Resistive Amps at 60 Hz.

Product Highlights

Reliable start type potential relay for electrical motor control.

Product Information

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M19006

Technical Specifications

• Drop-Out Voltage: 125
• Frequency: 60
• Hold Voltage: 479
• Inductive Amps: 35
• Pick-Up Voltage: 295 - 315
• Resistive Amps: 35
• Terminal Style: Screw
• Type: Start
