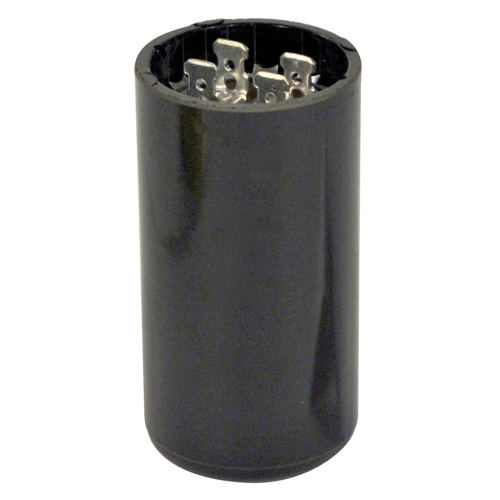

Rectorseal m11052 Run Capacitor 216-259 Mfd 250V

Product Description

The RECTORSEAL m11052 is a run capacitor rated at 216-259 microfarads (MFD) and 250/220 volts, designed for use in motor-driven HVAC and refrigeration equipment. Run capacitors maintain a continuous phase-shifted current to the run winding of a single-phase motor, improving efficiency and torque stability during operation. This capacitor is installed by licensed HVAC technicians as a replacement component in systems where the original capacitor has drifted out of tolerance, failed to start the motor, or caused excessive current draw. At 2.06 inches wide and 3.38 inches tall, it fits standard capacitor mounting brackets in most residential and light commercial equipment.

This capacitor is suited for single-phase motor applications found in HVAC condensers, fan motors, and compressor circuits operating at 250 or 220 volts. It is a direct-service replacement intended for field use when restoring motor performance in systems experiencing capacitor-related faults. No specific compatible model numbers were provided in the product data. Technicians should verify MFD rating and voltage rating against the original equipment nameplate before installation.

Key Features

• 216-259 MFD capacitance range suits high-MFD motor applications
• Rated for 250/220 volt single-phase motor circuits
• Compact footprint at 2.06 x 2.06 x 3.38 inches for standard bracket mounting
• Run capacitor design provides continuous duty operation, not limited to start cycle
• Field-replaceable component for restoring motor efficiency and torque

Compatibility

Designed as an OEM-style replacement run capacitor for single-phase motor circuits in residential and light commercial HVAC equipment rated at 250 or 220 volts. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation should be performed by a licensed HVAC technician. Always disconnect and lock out power to the unit before servicing capacitors, and discharge the capacitor fully before handling — stored charge can cause serious injury even after power is removed. Confirm that the replacement MFD rating and voltage rating match or are approved substitutes per the original equipment nameplate. Capacitors should be mounted securely in the original bracket to prevent vibration-related failure.

Technical Specifications

• Capacitance: 216-259 MFD
• Voltage Rating: 250/220 volts
• Width: 2.06 inches
• Length: 2.06 inches
• Height: 3.38 inches
• UPC: 685744110521

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: m11052
