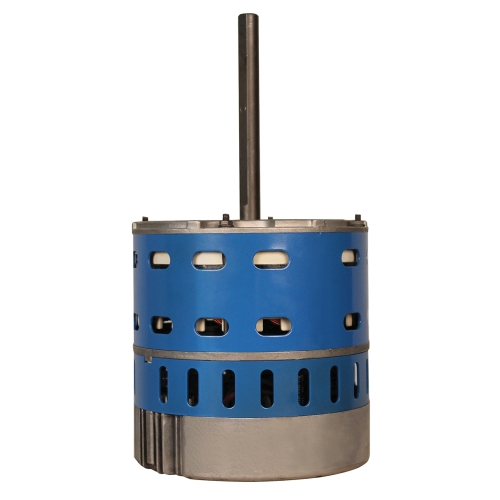

Rectorseal m10856 Ecm Variable Speed Blower Motor 1/2 Hp

Product Description

The RECTORSEAL m10856 is an electronically commutated motor (ECM) designed for direct drive blower applications in forced-air HVAC systems. Rated up to 1/2 HP with a variable speed range of 925 to 1200 RPM, this motor uses built-in Bluetooth connectivity and a free companion app (AZURE ECM) to allow technicians to configure speed and control parameters without manual jumper changes or external controllers. It operates on single-phase power and features continuous duty rating and ball bearing construction for long service life. The m10856 connects directly to OEM harnesses, simplifying retrofit and replacement installs.

This motor is suited for residential and light commercial forced-air applications where variable speed airflow control is required. It is intended for direct drive blower assemblies and is appropriate for replacement or upgrade installs in air handlers, furnaces, and fan coil units. Bluetooth-based commissioning makes it practical for techs working in tight equipment cabinets where physical dial or jumper access is difficult. The reverse rotation (REV) configuration suits specific blower wheel orientations common in many direct drive setups.

Key Features

• ECM motor type delivers variable speed control across a 925 to 1200 RPM operating range
• Bluetooth control via free AZURE ECM app eliminates manual speed-tap wiring
• Direct connection to OEM harnesses reduces retrofit labor and wiring errors
• Ball bearing construction supports continuous duty operation
• Open air over (OAO) enclosure provides airflow cooling in blower applications
• Electronic thermal protection guards against overtemperature conditions

Compatibility

Designed as an OEM-style direct drive ECM blower motor replacement for single-phase residential and light commercial air handler and furnace blower assemblies.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handler or furnace before removing the existing motor or accessing the blower assembly. Verify blower wheel rotation direction matches the REV configuration of this motor before finalizing installation. Bluetooth commissioning via the AZURE ECM app should be completed after mechanical installation and before restoring power to the system for a full operational check.

Technical Specifications

• Motor Type: ECM
• HP (Max.): 1/2
• RPM: 1075
• RPM Range: 925 to 1200
• Speeds: Variable
• Phase: Single
• Number of Poles: 10
• Rotation: REV
• Duty: Continuous
• Service Factor: 1.0
• Enclosure: OAO
• Bearing Type: Ball
• Thermal Protection: Electronic

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: m10856
