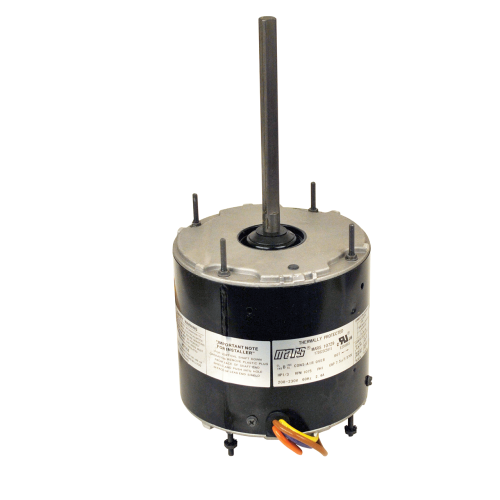

Rectorseal M10731 Condenser Fan Motor 3/4 Hp 208-230V

Product Description

The RECTORSEAL M10731 is a PSC condenser fan motor rated at 3/4 horsepower for use in residential and light commercial air conditioning systems. Running at 1075 RPM on a single-phase, 208-230 volt circuit, this motor features a Totally Enclosed Air Over (TEAO) enclosure that resists the harsh outdoor conditions typical of condenser unit service. Ball bearings support continuous-duty operation, and automatic thermal protection guards the motor against overload events. A service factor of 1.0 and a 6-pole design round out the core electrical profile. Licensed HVAC technicians install this motor as a direct replacement in condenser fan assemblies.

This motor is suited for outdoor condensing unit applications where a single-speed, reverse-rotation PSC motor is required. The RPM range of 925 to 1200 provides some flexibility during replacement across similar condenser fan configurations. It is appropriate for continuous-duty cycling conditions found in standard split-system air conditioning and heat pump condenser sections. Installation is typically performed by licensed HVAC technicians during seasonal maintenance or unplanned motor failure service calls.

Key Features

• 3/4 HP continuous-duty rating for reliable condenser fan service
• TEAO enclosure protects against outdoor debris, moisture, and airborne contaminants
• Ball bearing construction supports long service life under continuous operation
• Automatic thermal protection trips and resets to prevent overload damage
• PSC motor type compatible with standard single-phase condenser fan circuits
• Reverse rotation (REV) configuration standard for condenser fan blade draw

Compatibility

Designed as an OEM-style replacement for single-phase PSC condenser fan motors in residential and light commercial air conditioning and heat pump condensing units requiring a 3/4 HP, 208-230 volt, 1075 RPM TEAO motor with reverse rotation.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable local codes and the equipment manufacturer's service documentation. Disconnect and lock out all electrical power to the condensing unit before removing the existing motor or handling wiring. Verify blade rotation direction, shaft diameter, and mounting configuration match the replacement motor before energizing the unit. Do not operate the motor without a properly secured fan blade and shroud assembly in place.

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 208-230 volts
• RPM: 1075
• RPM Range: 925-1200
• Motor Type: PSC
• Phase: Single
• Number of Poles: 6
• Enclosure: TEAO
• Bearing Type: Ball
• Duty: Continuous
• Rotation: Reverse (REV)
• Speeds: 1
• Thermal Protection: Auto
• Service Factor: 1.0

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M10731
