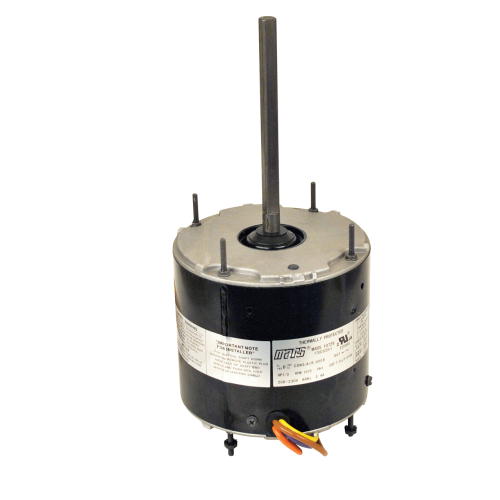

Rectorseal m10729 Condenser Motor 1/3 Hp 208-230V

Product Description

The RECTORSEAL m10729 is a condenser fan motor rated at 1/3 horsepower and designed for operation at 208-230 volts with a speed of 1075 RPM. Condenser fan motors drive the fan blade in the outdoor condensing unit, moving air across the coil to reject heat from the refrigerant circuit. This motor is installed by licensed HVAC technicians during routine maintenance, compressor changeouts, or condenser fan motor failures on residential and light commercial cooling equipment. Its 1075 RPM operating speed is standard for condenser section airflow requirements across a wide range of split-system and package unit applications.

This motor is suited for outdoor condenser unit service where a 1/3 HP, 208-230 volt single-phase motor is specified. It fits typical residential split-system air conditioners and heat pumps as well as light commercial packaged cooling equipment. Technicians replacing a failed condenser fan motor should verify shaft diameter, rotation direction, mounting configuration, and capacitor rating before installation to confirm a proper fit for the application.

Key Features

• 1/3 HP output suitable for standard residential condenser fan duty
• 208-230 volt dual-voltage rating accommodates common single-phase supply voltages
• 1075 RPM operating speed matched to typical condenser airflow requirements
• Intended for outdoor condenser unit installation in split-system and packaged cooling equipment

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial air conditioning and heat pump condensing units requiring a 1/3 HP, 208-230 volt, 1075 RPM motor.

Installation Notes

Condenser fan motor replacement is performed by licensed HVAC technicians. Disconnect and lock out all electrical power to the condensing unit before beginning work. Verify that the replacement motor's horsepower, voltage, RPM, rotation, shaft size, and capacitor rating match the failed unit's specifications before mounting. Capacitor sizing must be confirmed separately, as the required MFD rating is not interchangeable across all motors of the same horsepower class.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230 volts
• Speed: 1075 RPM
• UPC: 685744107293

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: m10729
