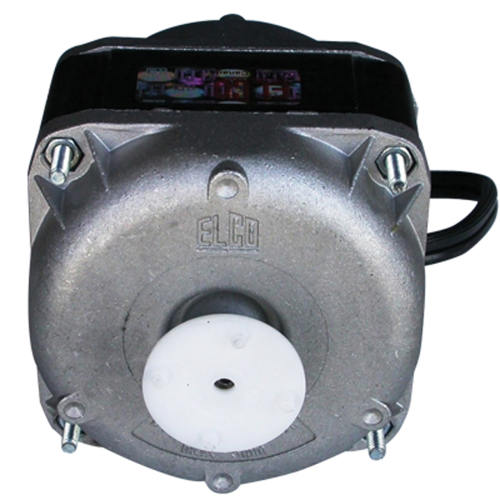

Rectorseal M00810 Unit Bearing Motor 16W 1550RPM 230V

Product Description

The RECTORSEAL M00810 is a shaded pole, unit bearing motor rated at 16 watts maximum and 1/47 HP. It operates on 230 volts single-phase power at a nominal speed of 1550 RPM, with an operating range of 1350 to 1900 RPM. The motor features a totally enclosed air-over (TEAO) enclosure, sleeve bearing construction, and built-in thermal protection. Rotation is counterclockwise from the shaft end (CCW SE). With a single-speed configuration and continuous duty rating, this motor is built for sustained operation in HVAC and ventilation equipment. Licensed HVAC technicians and refrigeration mechanics are the typical installers for this type of unit.

This motor is suited for residential and light commercial HVAC applications where a compact, low-wattage, single-phase shaded pole motor is required. Typical installations include evaporator fan assemblies, fan coil units, and small ventilation equipment that require a TEAO-rated motor for airstream exposure. The 4-pole design and 1550 RPM nominal speed make it a common fit for low-airflow, continuous-duty applications found in packaged terminal units and similar equipment.

Key Features

• 16-watt maximum output with 1/47 HP rating for low-power fan applications
• TEAO enclosure rated for direct airstream exposure
• Sleeve bearing construction for quiet, low-maintenance operation
• Built-in thermal protection guards against overheating
• Continuous duty rating supports uninterrupted operation
• CCW SE rotation with RPM range of 1350 to 1900

Compatibility

Designed as an OEM-style replacement for shaded pole unit bearing motors in residential and light commercial HVAC fan coil and evaporator fan applications requiring a 230-volt, 16-watt, single-phase motor.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician. Disconnect and lock out all power to the equipment before removing the existing motor or making any electrical connections. Confirm rotation direction and voltage requirements match the equipment nameplate before energizing. Follow applicable local codes and NEC guidelines for motor replacement in HVAC systems.

Technical Specifications

• Motor Type: Shaded Pole
• Wattage (Max.): 16 watts
• Voltage: 230 volts
• Phase: Single
• RPM: 1550
• RPM Range: 1350 to 1900
• Number of Poles: 4
• Speeds: 1
• Rotation: CCW SE
• Bearing Type: Sleeve
• Enclosure: TEAO
• Duty: Continuous
• Thermal Protection: Yes

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: M00810
