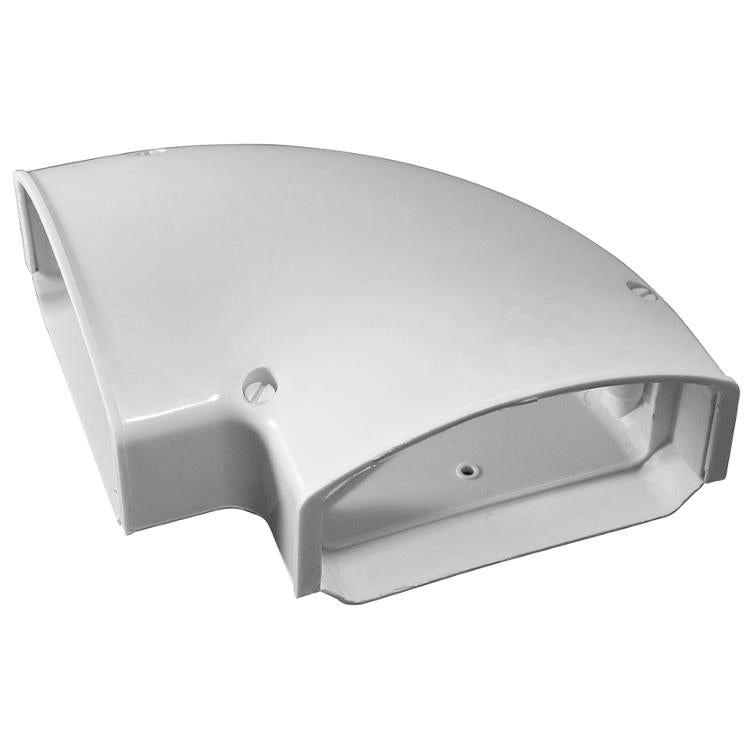

Rectorseal cg90 Flat 90 Degree Elbow Line Set Cover

Product Description

The RECTORSEAL cg90 is a flat 90-degree elbow fitting designed for use with the Cover Guard line set cover system. It connects to compatible duct sections and redirects the line set run at a 90-degree angle in a flat plane, keeping refrigerant lines, electrical conduit, and condensate tubing concealed and protected. At 4.5 inches, it fits multi-zone line set cover applications. The fitting ships with a stay-clean peel-and-go protective film and features pre-installed sliding zip-tie clips for a clean, organized installation. HVAC technicians installing mini-split or central system line set covers will find this elbow a direct-fit component within the Cover Guard system.

The cg90 is suited for both single-zone and multi-zone line set cover installations in residential and light commercial settings. It is used wherever a line set run must change direction horizontally at a 90-degree angle along a wall or building exterior. The fitting accepts paintable finishes in white, brown, and gray, making it adaptable to a range of exterior and interior color schemes. It is appropriate for mini-split installations, heat pump line sets, and similar applications where a finished, professional appearance is required.

Key Features

• Flat 90-degree elbow design for horizontal direction changes in Cover Guard line set cover systems
• Multi-stage adjustability for flexible fitting alignment during installation
• Quick-snap cover that stays locked and will not pop off under normal service conditions
• Pre-installed sliding zip-tie clips for organized line management
• No-rust, quarter-turn cam screws for corrosion-resistant fastening
• UV-resistant construction suitable for exterior exposure
• Paintable white finish with compatible brown and gray color options available

Compatibility

Designed for use with the RECTORSEAL Cover Guard line set cover system in single-zone and multi-zone configurations at the 4.5-inch duct width.

Installation Notes

Installation is typically performed by a licensed HVAC technician as part of a complete line set cover system. Disconnect and isolate the refrigerant system and power to all associated equipment before routing or re-routing line sets. Align the cg90 elbow with adjoining Cover Guard duct sections before engaging the cam screws to ensure proper fit. Remove the peel-and-go protective film from all surfaces after installation is complete.

Technical Specifications

• Fitting Type: Flat 90-degree elbow
• Duct Width: 4.5 inches
• Application: Single and multi-zone line set cover systems
• UV Resistant: Yes
• Paintable: Yes
• Color: White (compatible with brown and gray options)
• Fastener Type: Quarter-turn cam screws, no-rust

Standard Information

• Brand: RECTORSEAL
• Manufacturer Part Number: cg90
